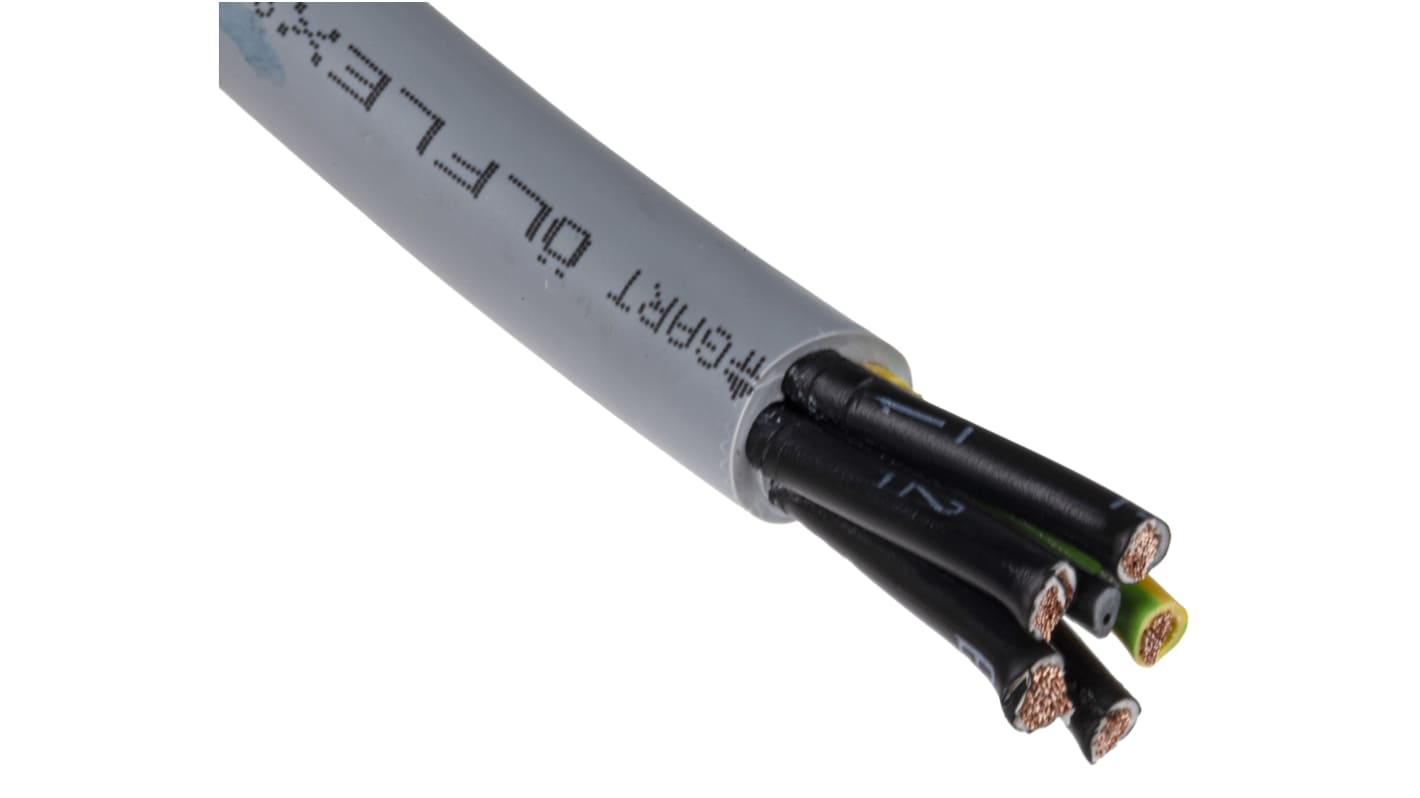

RS PRO Control Cable, 5 Cores, 6 mm², YY, Unscreened, 50m, Grey PVC Sheath, 9 AWG

RS Stock No.:: 827-4284
Manufacturer:: RS PRO

RS PRO Control Cable, 5 Cores, 6 mm², YY, Unscreened, 50m, Grey PVC Sheath, 9 AWG

Subtotal (1 reel of 50 metres)*

€460.97

(exc. VAT)

€566.99

(inc. VAT)

Temporarily out of stock

6 unit(s) shipping from 28 August 2025
Plus 15 unit(s) shipping from 16 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	€460.97	€9.219

*price indicative

Compare

Alternative

This product is not currently available. Here is our alternative recommendation.

Lapp ÖLFLEX CLASSIC 130 Control Cable, 5 Cores, 6 mm², YY, Unscreened, 50m, Grey LSZH Sheath, 9 AWG

RS Stock No.: 819-9638

1 Reel of 50 Metre(s)

€762.57

(exc. VAT)

€937.96

(inc. VAT)

RS Stock No.:: 827-4284
Manufacturer:: RS PRO

LAPP ÖLFLEX® CLASSIC 110 Series Control Cable, 6mm² Cross Sectional Area, 44A Current - 1119605

This control cable is a versatile and reliable solution designed for fixed installations. Known for its multi-core configuration, it features five cores with a cross-sectional area of 6 mm², making it suitable for various applications. The cable is sheathed in grey PVC, ensuring durability and protection against environmental factors.

Features & Benefits

• Unscreened design enhances flexibility for easy installation
• Flame retardant properties ensure safety in electrical usage
• Good chemical resistance expands usability in challenging environments
• Oil-resistant construction enhances longevity and reliability
• Compact outer diameter of 14.5mm saves space in installations
• Rated for 300/500 V, accommodating a wide range of electrical usage

Applications

• Suitable for plant engineering and machinery control
• Optimal for conveyor and transport systems
• Ideal for heating and air conditioning system connections
• Effective in connecting electrical equipment in various industries

What is the maximum operating temperature for this cable?

The maximum operating temperature is +80°C, allowing it to function effectively in high-heat environments without concern.

How does this cable's construction contribute to its performance?

The use of bare copper conductors ensures excellent conductivity, while the PVC sheath provides protection and flexibility.

What current capacity can this cable handle?

It has a current rating of 44A, making it suitable for a variety of power applications.

What is the significance of the cable being unscreened?

Being unscreened allows for greater flexibility and easier installation in tight spaces without compromising performance.

How does the minimum bend radius affect installation?

The minimum bend radius of 4 x D for fixed installation ensures that the cable can be manoeuvred without damaging the integrity of the insulation and conductors.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Series	ÖLFLEX® CLASSIC 110
	Number of Cores	5
	Cross Sectional Area	6 mm²
	American Wire Gauge	9 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Control Cable Type	YY
	Sheath Colour	Grey
	Screened/Unscreened	Unscreened
	Length	50m
	Outer Diameter	14.5mm
	Minimum Bend Radius	Fixed - 4 x D, Occasional Flexing - 15 x D
	Voltage Rating	300/500 V
	Current Rating	44 A
	CPR Certification	Eca
	Standards Met	EN 50525-2-51
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant
	Conductor Resistance	3.3 Ω/km
	Oil Resistant	Yes
	Cable Shape	Multicore
	Core Strands	84/0.3 mm
	Insulation Material	PVC
	Filler Material	Non-Wicking Filler
	Earth Cable	Yes
	Minimum Operating Temperature	-40°C

	Select all
	Brand RS PRO
	Series ÖLFLEX® CLASSIC 110
	Number of Cores 5
	Cross Sectional Area 6 mm²
	American Wire Gauge 9 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Control Cable Type YY
	Sheath Colour Grey
	Screened/Unscreened Unscreened
	Length 50m
	Outer Diameter 14.5mm
	Minimum Bend Radius Fixed - 4 x D, Occasional Flexing - 15 x D
	Voltage Rating 300/500 V
	Current Rating 44 A
	CPR Certification Eca
	Standards Met EN 50525-2-51
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant
	Conductor Resistance 3.3 Ω/km
	Oil Resistant Yes
	Cable Shape Multicore
	Core Strands 84/0.3 mm
	Insulation Material PVC
	Filler Material Non-Wicking Filler
	Earth Cable Yes
	Minimum Operating Temperature -40°C
