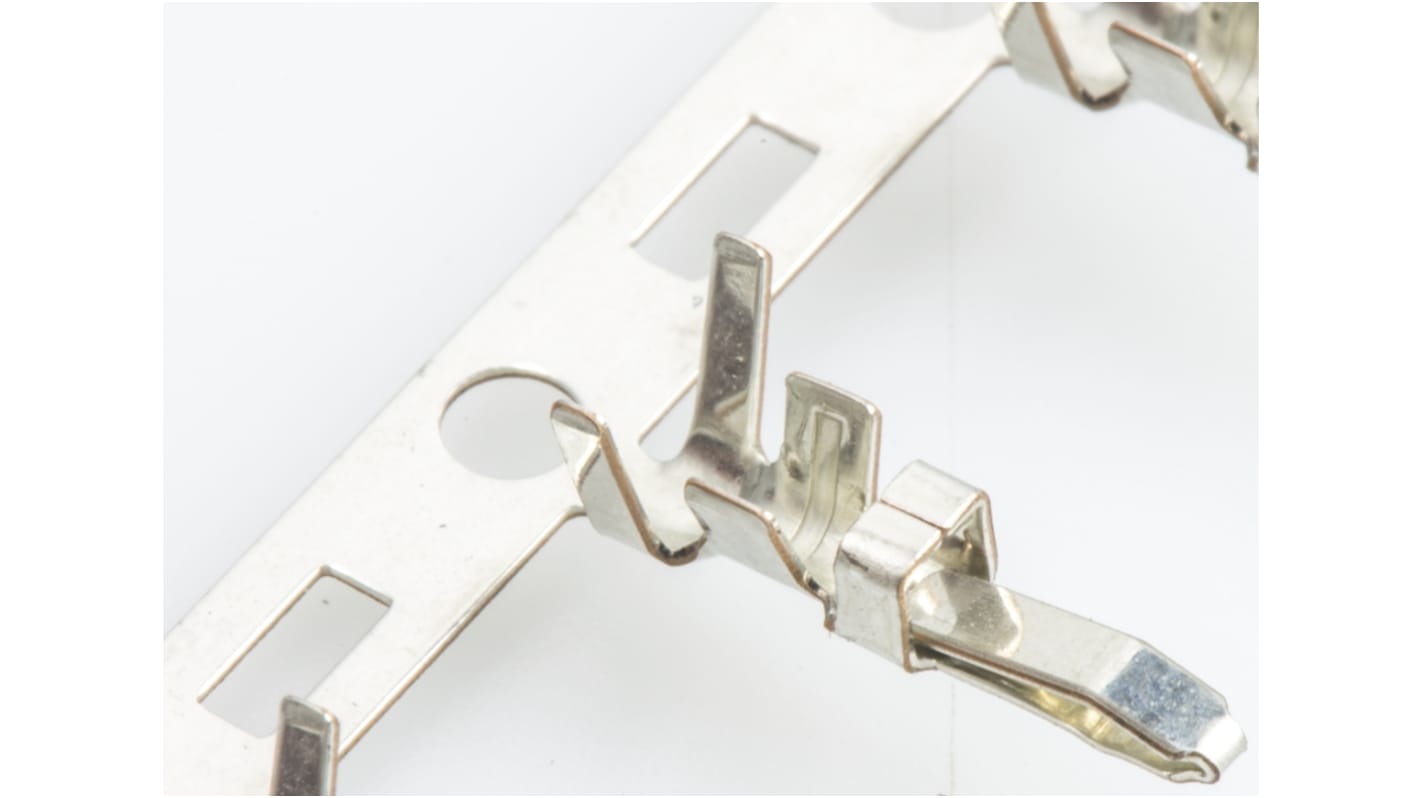

JST SDN Series Male Crimp Terminal Contact, 22AWG Min, 18AWG Max
- RS Stock No.:
- 820-1245
- Mfr. Part No.:
- SDN-21T-P1.5
- Manufacturer:
- JST
Discontinued product
- RS Stock No.:
- 820-1245
- Mfr. Part No.:
- SDN-21T-P1.5
- Manufacturer:
- JST
Technical data sheets
Legislation and Compliance
Product Details
SDN Connector Contacts
820-1245 Board-In Contact SDN-21T-P1.5, applicable board size is 1.6 mm.
820-1248 Cable Assembly with SDN Board-In Contacts on both ends, 150 mm long.
820-1242 Cable Assembly with SDN Board-In Contacts on both ends, 300 mm long.
For SDN Housings see stock number 820-1214 typical.
For suitable crimping tool see 819-2725
820-1248 Cable Assembly with SDN Board-In Contacts on both ends, 150 mm long.
820-1242 Cable Assembly with SDN Board-In Contacts on both ends, 300 mm long.
For SDN Housings see stock number 820-1214 typical.
For suitable crimping tool see 819-2725
JST SDN Connectors 3.96mm Pitch
The SDN Board-In Connector range from JST has a pitch of 3.96 mm for wire-to-board signal or power applications. The design features of the SDN Range provide slim, low profile connectors where the contacts lance construction helps reduce the insertion force required on assembly.
Specifications
Attribute | Value |
---|---|
Gender | Male |
For Use With | SDN Connector Housing |
Series | SDN |
Minimum Wire Size mm² | 0.3mm² |
Termination Method | Crimp |
Maximum Wire Size mm² | 0.8mm² |
Minimum Wire Size AWG | 22AWG |
Contact Plating | Tin |
Contact Material | Phosphor Bronze |
Maximum Wire Size AWG | 18AWG |
Minimum Operating Temperature | -25°C |
Maximum Current | 7A |
Maximum Operating Temperature | +85°C |
