Units	Per unit	Per Pack**
20 - 20	€0.331	€6.62
40 - 80	€0.32	€6.40
100 +	€0.316	€6.32

Select all	Attribute	Value
	Brand	Microchip
	Memory Size	4kbit
	Interface Type	Serial-I2C
	Package Type	SOIC
	Mounting Type	Surface Mount
	Pin Count	8
	Organisation	2 Block x 256 x 8 bit
	Minimum Operating Supply Voltage	2.5 V
	Maximum Operating Supply Voltage	5.5 V
	Programming Voltage	2.5 → 5.5V
	Number of Bits per Word	8bit
	Dimensions	4.9 x 3.9 x 1.25mm
	Data Retention	200yr
	Maximum Operating Temperature	+85 °C
	Automotive Standard	AEC-Q100
	Maximum Random Access Time	900ns
	Minimum Operating Temperature	-40 °C
	Number of Words	256256

	Select all
	Brand Microchip
	Memory Size 4kbit
	Interface Type Serial-I2C
	Package Type SOIC
	Mounting Type Surface Mount
	Pin Count 8
	Organisation 2 Block x 256 x 8 bit
	Minimum Operating Supply Voltage 2.5 V
	Maximum Operating Supply Voltage 5.5 V
	Programming Voltage 2.5 → 5.5V
	Number of Bits per Word 8bit
	Dimensions 4.9 x 3.9 x 1.25mm
	Data Retention 200yr
	Maximum Operating Temperature +85 °C
	Automotive Standard AEC-Q100
	Maximum Random Access Time 900ns
	Minimum Operating Temperature -40 °C
	Number of Words 256256

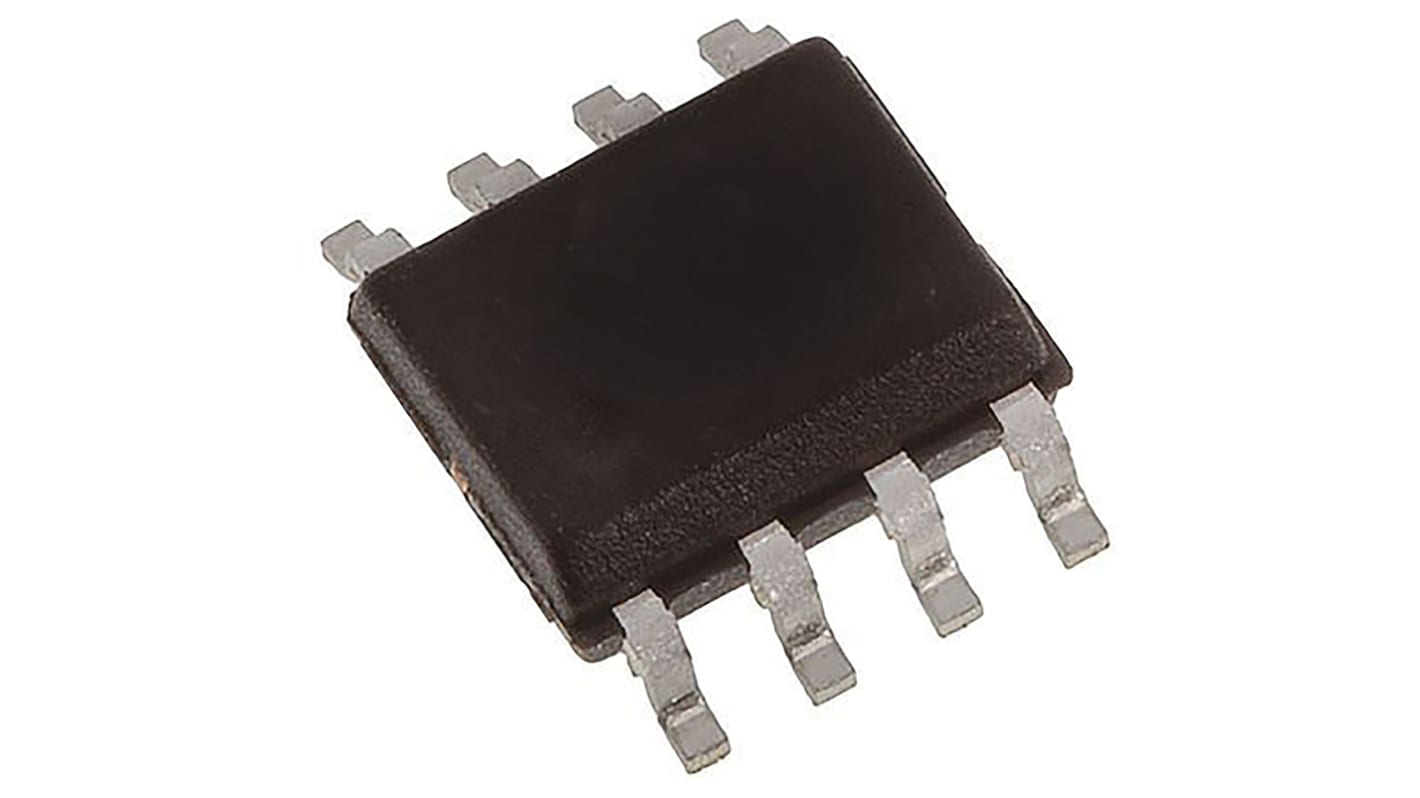

Microchip 24LC04B-I/SN, 4kbit Serial EEPROM Memory, 900ns 8-Pin SOIC Serial-I2C

24AA04/24LC04B I²C™ Serial EEPROM

Features
