Units	Per unit	Per Reel**
2500 - 2500	€0.625	€1,562.50
5000 +	€0.57	€1,425.00

Select all	Attribute	Value
	Brand	ROHM
	Memory Size	256kbit
	Interface Type	SPI
	Package Type	SOP-J
	Mounting Type	Surface Mount, Through Hole
	Pin Count	8
	Organisation	32K x 8 bit
	Minimum Operating Supply Voltage	1.7 V
	Maximum Operating Supply Voltage	5.5 V
	Programming Voltage	1.7 to 5.5V
	Number of Bits per Word	8bit
	Dimensions	4.9 x 3.9 x 1.38mm
	Data Retention	100yr
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+125 °C
	Automotive Standard	AEC-Q100
	Maximum Random Access Time	20ns
	Number of Words	32k

	Select all
	Brand ROHM
	Memory Size 256kbit
	Interface Type SPI
	Package Type SOP-J
	Mounting Type Surface Mount, Through Hole
	Pin Count 8
	Organisation 32K x 8 bit
	Minimum Operating Supply Voltage 1.7 V
	Maximum Operating Supply Voltage 5.5 V
	Programming Voltage 1.7 to 5.5V
	Number of Bits per Word 8bit
	Dimensions 4.9 x 3.9 x 1.38mm
	Data Retention 100yr
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +125 °C
	Automotive Standard AEC-Q100
	Maximum Random Access Time 20ns
	Number of Words 32k

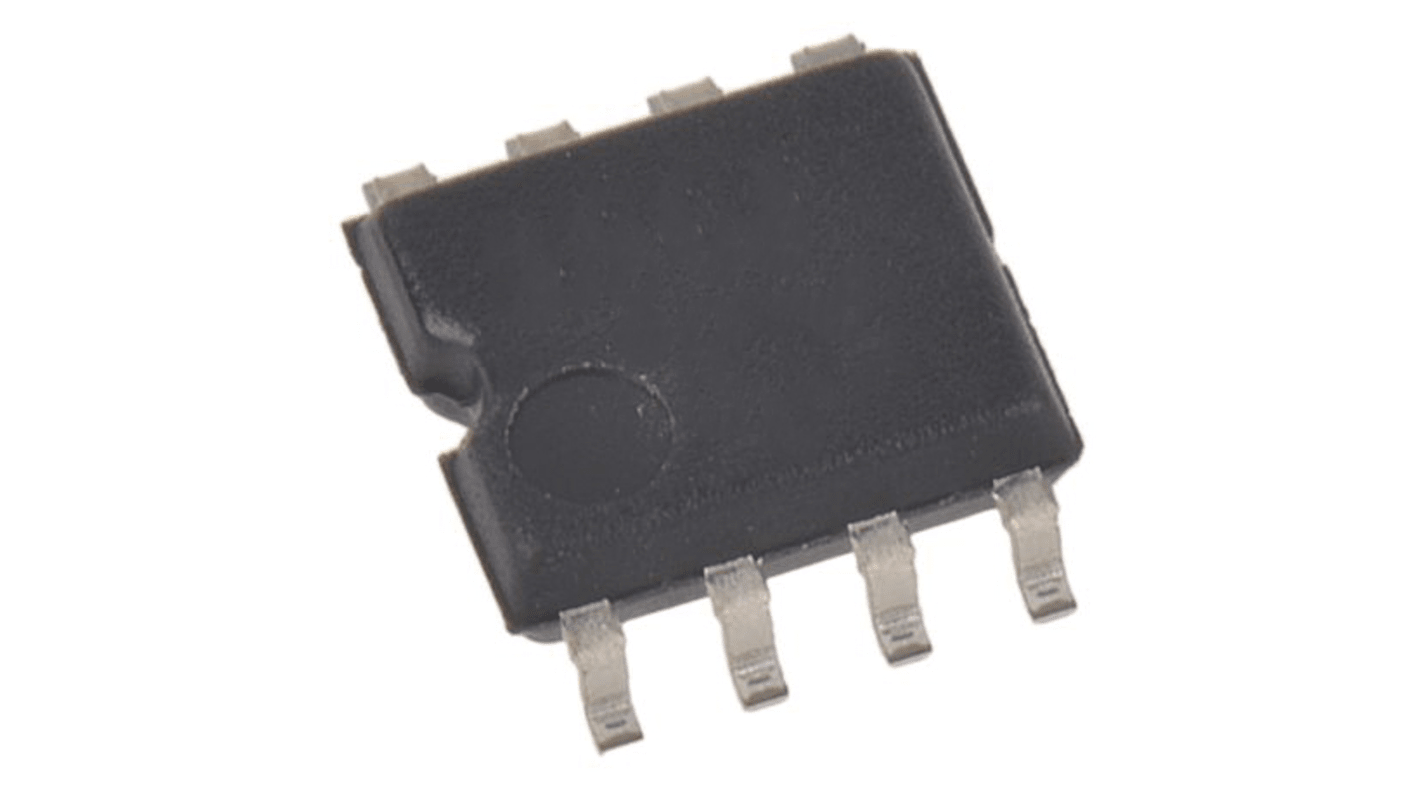

ROHM BR25H256FJ-5ACE2, 256kbit Serial EEPROM Memory, 20ns 8-Pin SOP-J SPI
