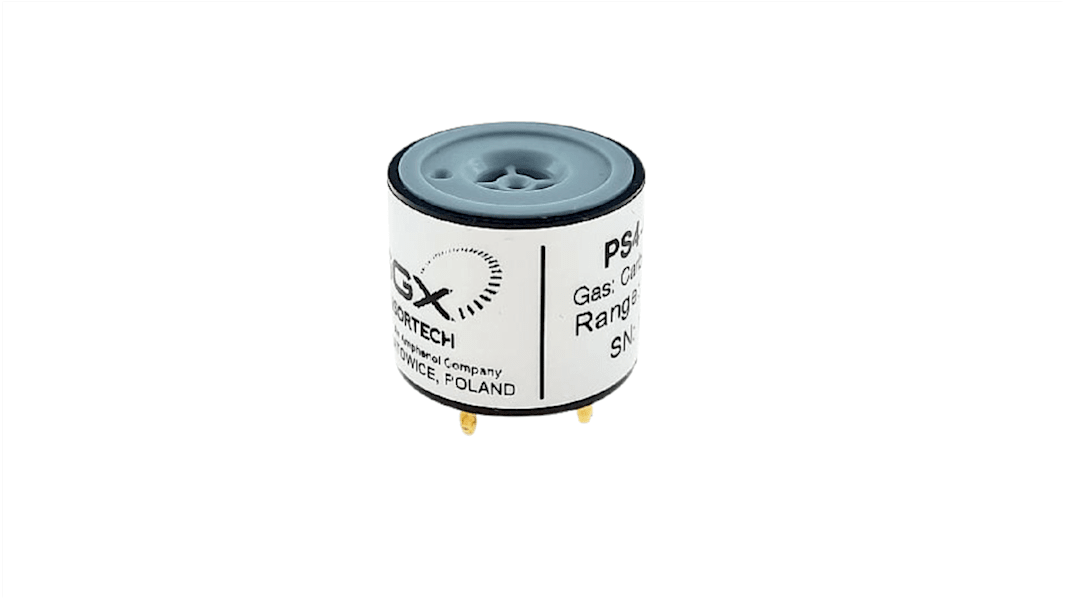

SGX Sensors PS4-O2-25%, Oxygen Gas Sensor IC for Air Quality Monitors

The SGX Sensors series of PS1 and PS4 Electrochemical gas sensors are using a revolutionary ’Solid Polymer Electrolyte’ technology that is based on the principle of catalytic reaction. The target gas to be measured generates a very small current, proportional to the gas concentration. Our technology offers a stable, high quality and cost-effective manufacturing process. The SGX solid polymer electrolyte gas sensors are available in a very small size, are highly sensitive, do not use power and have very low cross sensitivity from other gases.

Sensitivity 0.2 ± 0.03 n A / ppm
Measurement range 0 – 25 %vol
Zero current 40-60 μA
Maximum overload 30 %vol
Response time T50 < 5s, T90 < 10s
Lower Detectable Limit (LDL) ≤ 0.5 %vol
