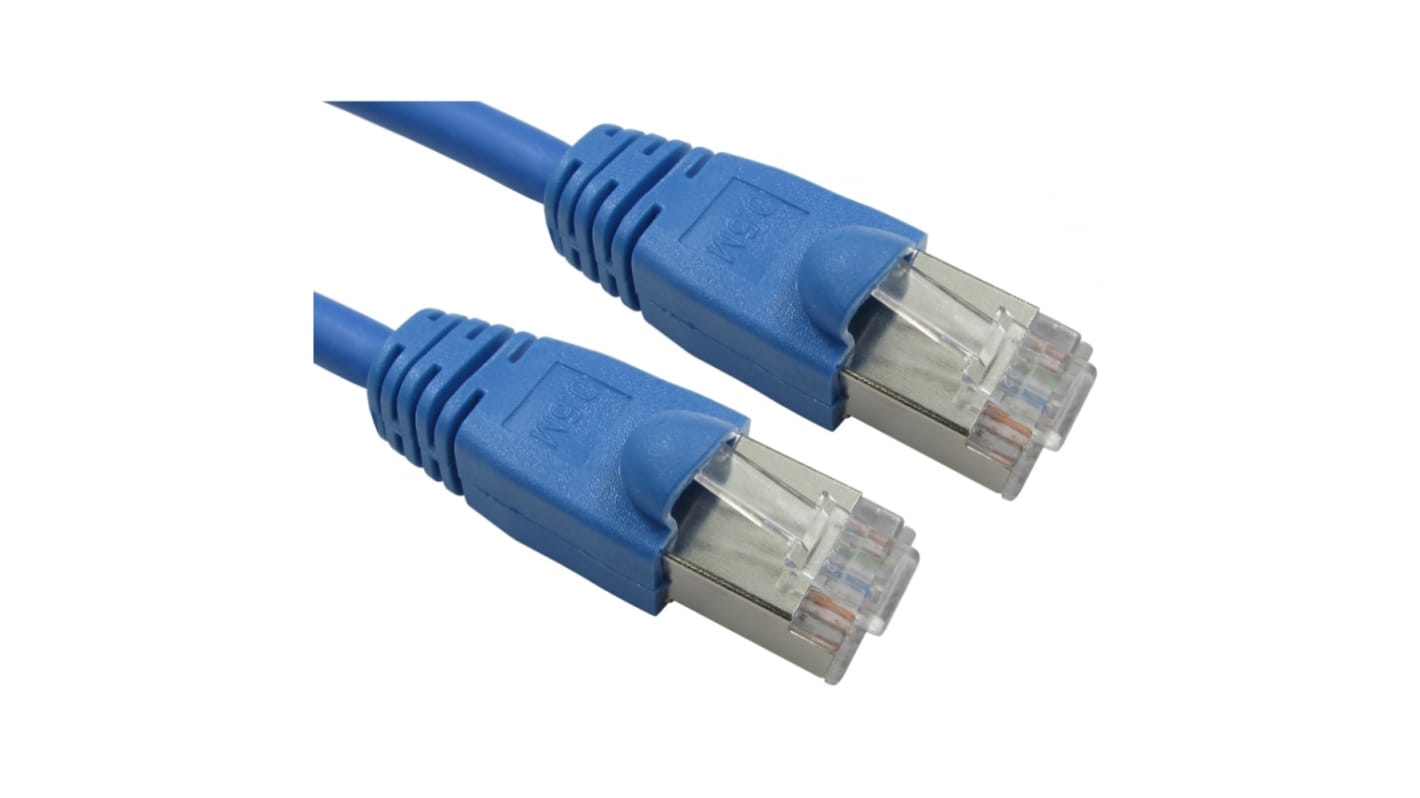

RS PRO, 20m Cat6, Blue RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath
- RS Stock No.:
- 286-3263
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
€29.63
(exc. VAT)
€36.44
(inc. VAT)
- 114 unit(s) ready to ship from another location
- Plus 72 unit(s) shipping from 10 September 2025
- Plus 60 unit(s) shipping from 08 October 2025
Units | Per unit |
|---|---|
| 1 + | €29.63 |
*price indicative
- RS Stock No.:
- 286-3263
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| LAN Category | Cat6 | |
| Length | 20m | |
| Terminated/Unterminated | Terminated | |
| Shield Type | FTP | |
| Connector 1 Gender | Male | |
| Connector 1 | RJ45 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Number of Contacts | 8 | |
| Connector 2 Gender | Male | |
| Connector 2 Number of Contacts | 8 | |
| Connector 2 | RJ45 | |
| Connector 2 Orientation | Straight | |
| Shielded/Unshielded | Shielded | |
| Outer Sheath Material | LSZH | |
| Sheath Colour | Blue | |
| Wiring Configuration | Straight Through | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Core Strands | 7/0.15 | |
| American Wire Gauge | 26AWG | |
| Outer Diameter | 5.6mm | |
| Voltage Rating | 80V | |
| Conductor Strand Type | Stranded | |
| Capacitance | 5.6nF/100m | |
| Cross Sectional Area | 0.126 to 0.158mm² | |
| Current Rating | 960mA | |
| Standards Met | ISO/IEC 11801, TIA/EIA 568B.2-1 | |
| Cable Shape | Round | |
| Number of Strands | 8 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
LAN Category Cat6 | ||
Length 20m | ||
Terminated/Unterminated Terminated | ||
Shield Type FTP | ||
Connector 1 Gender Male | ||
Connector 1 RJ45 | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 8 | ||
Connector 2 Gender Male | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 RJ45 | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Shielded | ||
Outer Sheath Material LSZH | ||
Sheath Colour Blue | ||
Wiring Configuration Straight Through | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Core Strands 7/0.15 | ||
American Wire Gauge 26AWG | ||
Outer Diameter 5.6mm | ||
Voltage Rating 80V | ||
Conductor Strand Type Stranded | ||
Capacitance 5.6nF/100m | ||
Cross Sectional Area 0.126 to 0.158mm² | ||
Current Rating 960mA | ||
Standards Met ISO/IEC 11801, TIA/EIA 568B.2-1 | ||
Cable Shape Round | ||
Number of Strands 8 | ||
