    Heatsink, Universal Rectangular Alu, 0.5K/W, 150 x 125 x 50mm

    RS Stock No.:
    271-870
    Manufacturer:
    RS PRO
    RS PRO
    View all Heatsinks
    480 In stock for delivery within 2 working days
    Add to Basket
    units

    Added

    Price Each

    €36.80

    (exc. VAT)

    €45.26

    (inc. VAT)

    unitsPer unit
    1 - 4€36.80
    5 - 9€33.86
    10 - 24€33.12
    25 - 499€30.18
    500 +€19.36
    RS Stock No.:
    271-870
    Manufacturer:
    RS PRO
    COO (Country of Origin):
    GB

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    GB

    Product Details

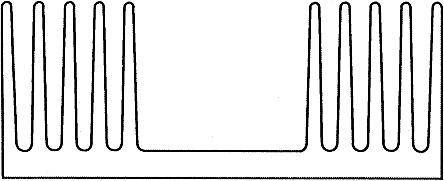

    Flatback 125mm Wide x 50mm High With Channel


    ABL design their heat sinks to increase the surface area and therefore dissipate heat over a greater area which leads to quicker cooling of the component. Designed using tempered alloys with greater thermal conductivity to maximise cooling performance. Heat sinks can be used to cool high power semiconductors, optoelectric devices and light emitting diodes.

    Note

    Thermal resistance quoted is with fins vertical in free air. Length dimension refers to extrusion length along fins.

    Specifications

    AttributeValue
    For Use WithUniversal Rectangular Alu
    Length150mm
    Width125mm
    Height50mm
    Dimensions150 x 125 x 50mm
    Thermal Resistance0.5K/W
    ColourBlack
    MaterialAluminium
