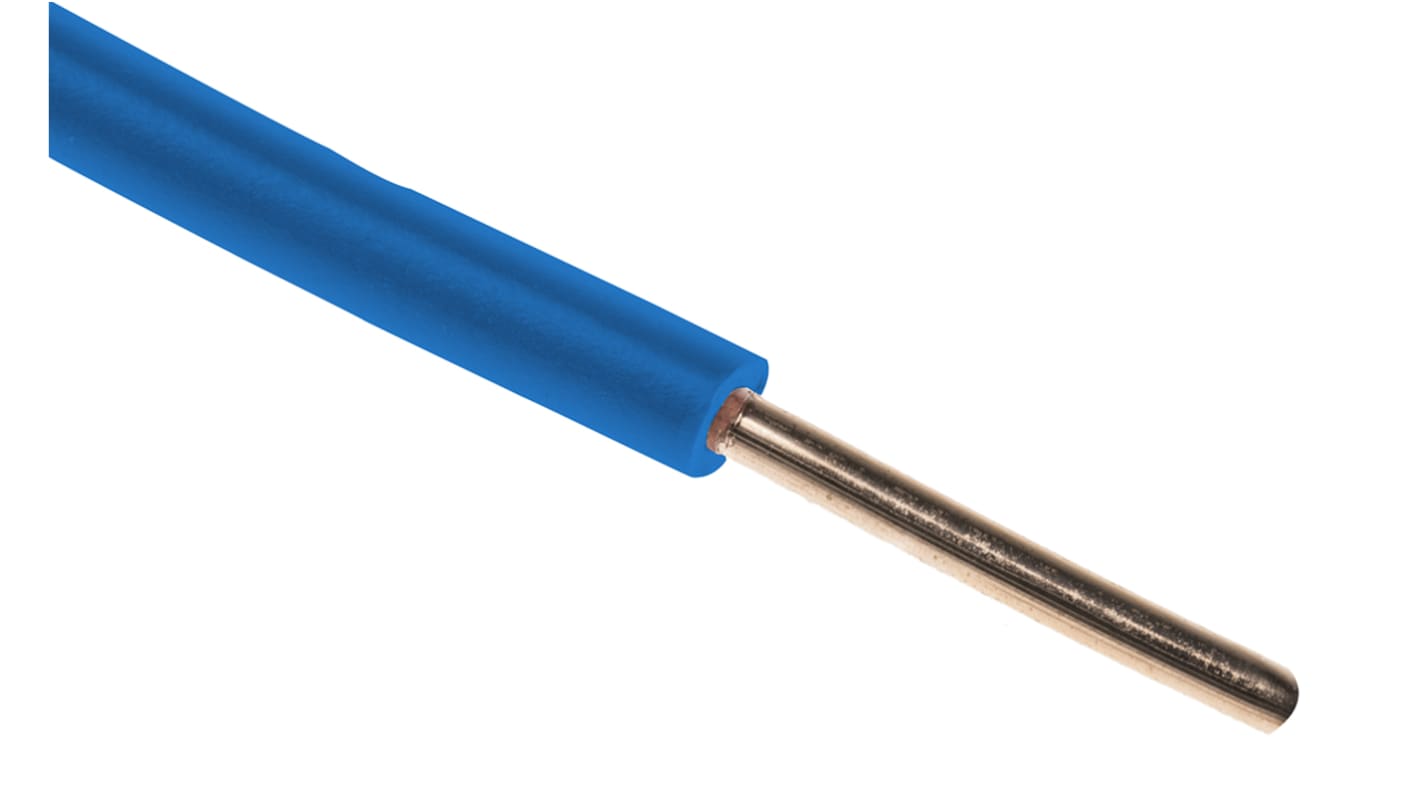

RS PRO Blue 1.5mm² Hook Up Wire, 15 AWG, 1/1.38 mm, 100m, PVC Insulation
- RS Stock No.:
- 358-983
- Manufacturer:
- RS PRO
Subtotal (1 reel of 100 metres)*
€82.50
(exc. VAT)
€101.48
(inc. VAT)
In Stock
- 35 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €82.50 | €0.825 |
*price indicative
- RS Stock No.:
- 358-983
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 1.5mm² | |
| Sheath Colour | Blue | |
| Cable Shape | Single Core | |
| American Wire Gauge | 15 AWG | |
| Core Strands | 1/1.38 mm | |
| Length | 100m | |
| Insulation Material | PVC | |
| Voltage Rating | 600 V | |
| Outer Diameter | 3.5mm | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | +70°C | |
| Current Rating | 20 A | |
| Conductor Material | Annealed Copper | |
| Standards Met | BS 6231 | |
| Cable Type | Control | |
| Series | RIGID BU | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.8mm | |
| Size of Strands | 1.38mm | |
| Outer Sheath Material | PVC | |
| Number of Strands | 1 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1.5mm² | ||
Sheath Colour Blue | ||
Cable Shape Single Core | ||
American Wire Gauge 15 AWG | ||
Core Strands 1/1.38 mm | ||
Length 100m | ||
Insulation Material PVC | ||
Voltage Rating 600 V | ||
Outer Diameter 3.5mm | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +70°C | ||
Current Rating 20 A | ||
Conductor Material Annealed Copper | ||
Standards Met BS 6231 | ||
Cable Type Control | ||
Series RIGID BU | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.8mm | ||
Size of Strands 1.38mm | ||
Outer Sheath Material PVC | ||
Number of Strands 1 | ||
