RS PRO 6491X Series Yellow, Green 16 mm² Hook Up Wire, 6 AWG, 7/1.69 mm, 100 m, Polyvinyl Chloride
- RS Stock No.:
- 836-0956
- Manufacturer:
- RS PRO
Subtotal (1 reel of 100 metres)*
€448.96
(exc. VAT)
€552.22
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €448.96 | €4.49 |
*price indicative
- RS Stock No.:
- 836-0956
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 16 mm² | |
| Jacket Colour | Yellow, Green | |
| American Wire Gauge | 6AWG | |
| Core Strands | 7/1.69 mm | |
| Cable Length | 100m | |
| Outside Diameter | 6.4 → 7.8 mm | |
| Voltage | 750 V | |
| Maximum Operating Temperature | 70°C | |
| Conductor Material | Copper | |
| Cable Type | H07V-R | |
| Jacket Material | Polyvinyl Chloride | |
| Standards/Approvals | Euroclass Eca | |
| Minimum Operating Temperature | -5°C | |
| Sub Type | 6491X | |
| Fire Behaviour | Flame Retardant | |
| Series | 6491X | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 16 mm² | ||
Jacket Colour Yellow, Green | ||
American Wire Gauge 6AWG | ||
Core Strands 7/1.69 mm | ||
Cable Length 100m | ||
Outside Diameter 6.4 → 7.8 mm | ||
Voltage 750 V | ||
Maximum Operating Temperature 70°C | ||
Conductor Material Copper | ||
Cable Type H07V-R | ||
Jacket Material Polyvinyl Chloride | ||
Standards/Approvals Euroclass Eca | ||
Minimum Operating Temperature -5°C | ||
Sub Type 6491X | ||
Fire Behaviour Flame Retardant | ||
Series 6491X | ||
- COO (Country of Origin):
- TR

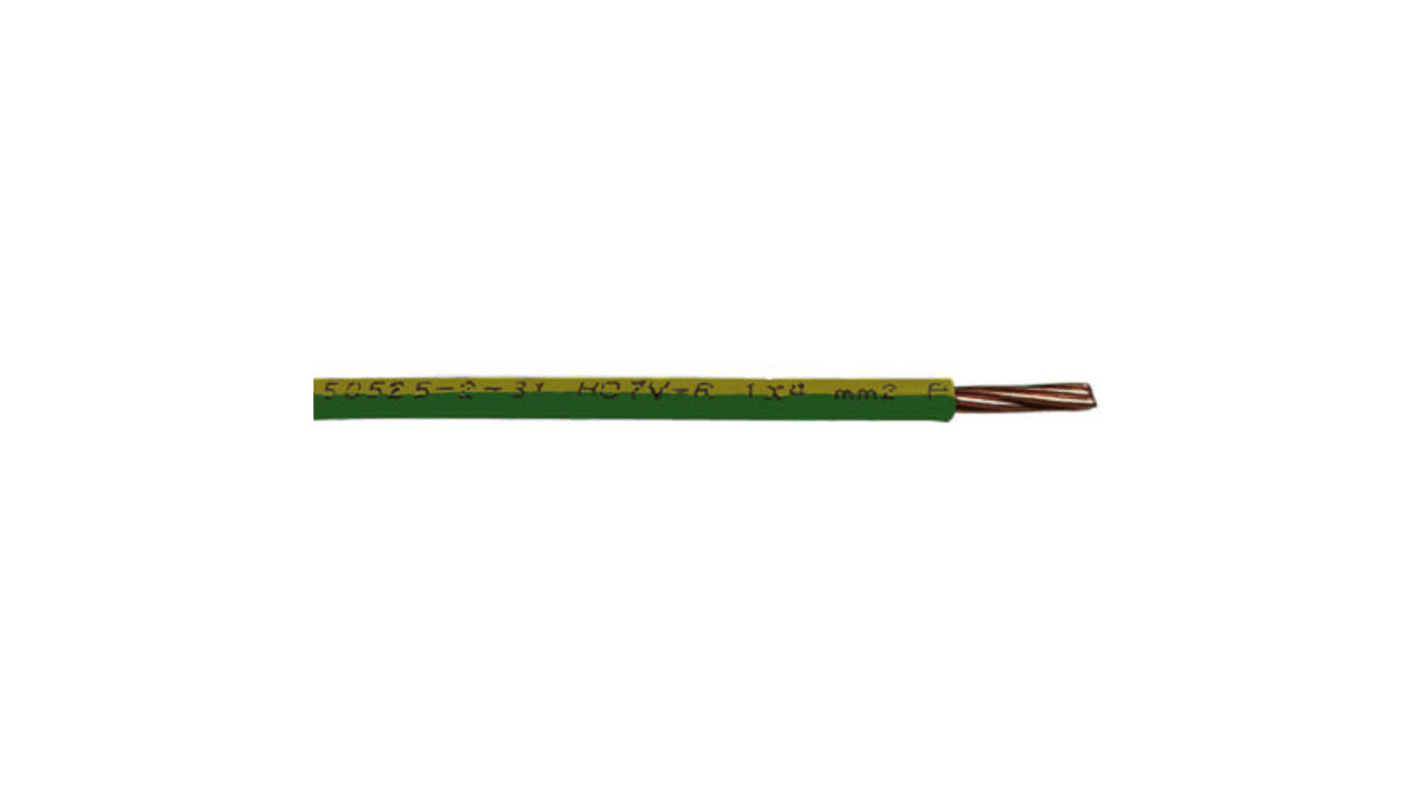

RS PRO 6491X H07V-R Conduit Cable, 16 mm² CSA, 750 V, Green/Yellow
You can use this 7-strand 16 mm² CSA conduit cable from the RS PRO range for your control gears, closed systems and light fittings. It's suitable for use in a wide variety of applications, such as closed installation ducts, lighting and power circuits and building wire.
This 6491X H07V-R harmonised cable has good mechanical strength and high-speed capability, meaning it's a robust choice for replacing the internal wiring in any of your home appliances. It's PVC-insulated for extra protection and is also flame-retardant, so it won't easily catch alight.
This conduit cable has the International Electrochemical Commission 60228 approval, meaning it's a safe conductor to use in insulated cables and assemblies. It contains minimal amounts of harmful substances and meets the EU's directive on the Restriction of Hazardous Substances (RoHS).
