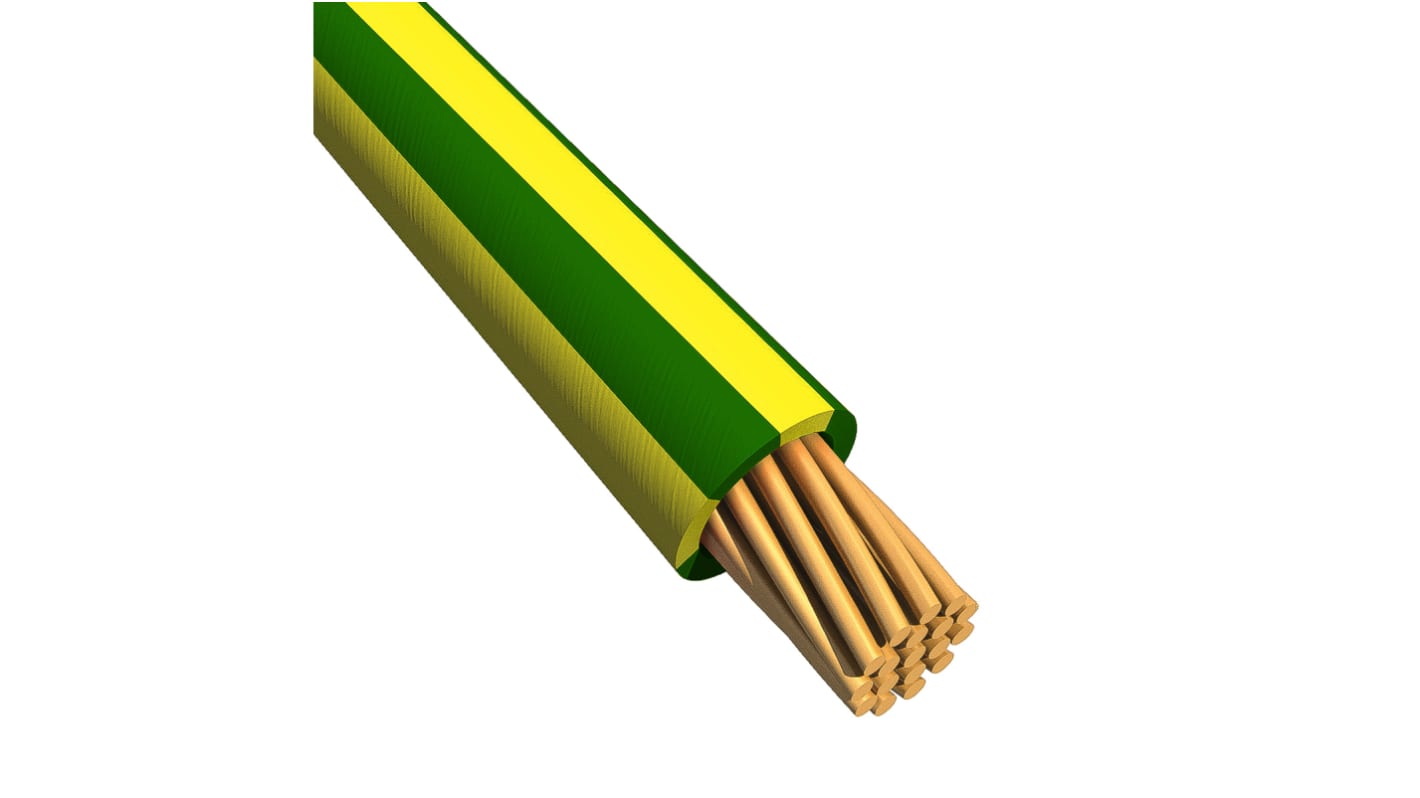

Alpha Wire Ecogen Ecowire Series Green/Yellow 5.2 mm² Hook Up Wire, 10 AWG, 105/0.25 mm, 305m, MPPE Insulation, 6719
- RS Stock No.:
- 838-5166
- Mfr. Part No.:
- 6719 GY001
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
€1,895.88
(exc. VAT)
€2,331.93
(inc. VAT)
Temporarily out of stock
- Shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €1,895.88 | €6.216 |
*price indicative
- RS Stock No.:
- 838-5166
- Mfr. Part No.:
- 6719 GY001
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 5.2 mm² | |
| Sheath Colour | Green/Yellow | |
| American Wire Gauge | 10 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 105/0.25 mm | |
| Length | 305m | |
| Insulation Material | MPPE | |
| Outer Diameter | 3.61mm | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Copper | |
| Standards Met | CE, CSA, UL | |
| Wire Style | UL11028 | |
| Series | Ecogen Ecowire | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.3mm | |
| Number of Strands | 105 | |
| Size of Strands | 0.25 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 5.2 mm² | ||
Sheath Colour Green/Yellow | ||
American Wire Gauge 10 AWG | ||
Cable Shape Single Core | ||
Core Strands 105/0.25 mm | ||
Length 305m | ||
Insulation Material MPPE | ||
Outer Diameter 3.61mm | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Copper | ||
Standards Met CE, CSA, UL | ||
Wire Style UL11028 | ||
Series Ecogen Ecowire | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.3mm | ||
Number of Strands 105 | ||
Size of Strands 0.25 mm | ||
