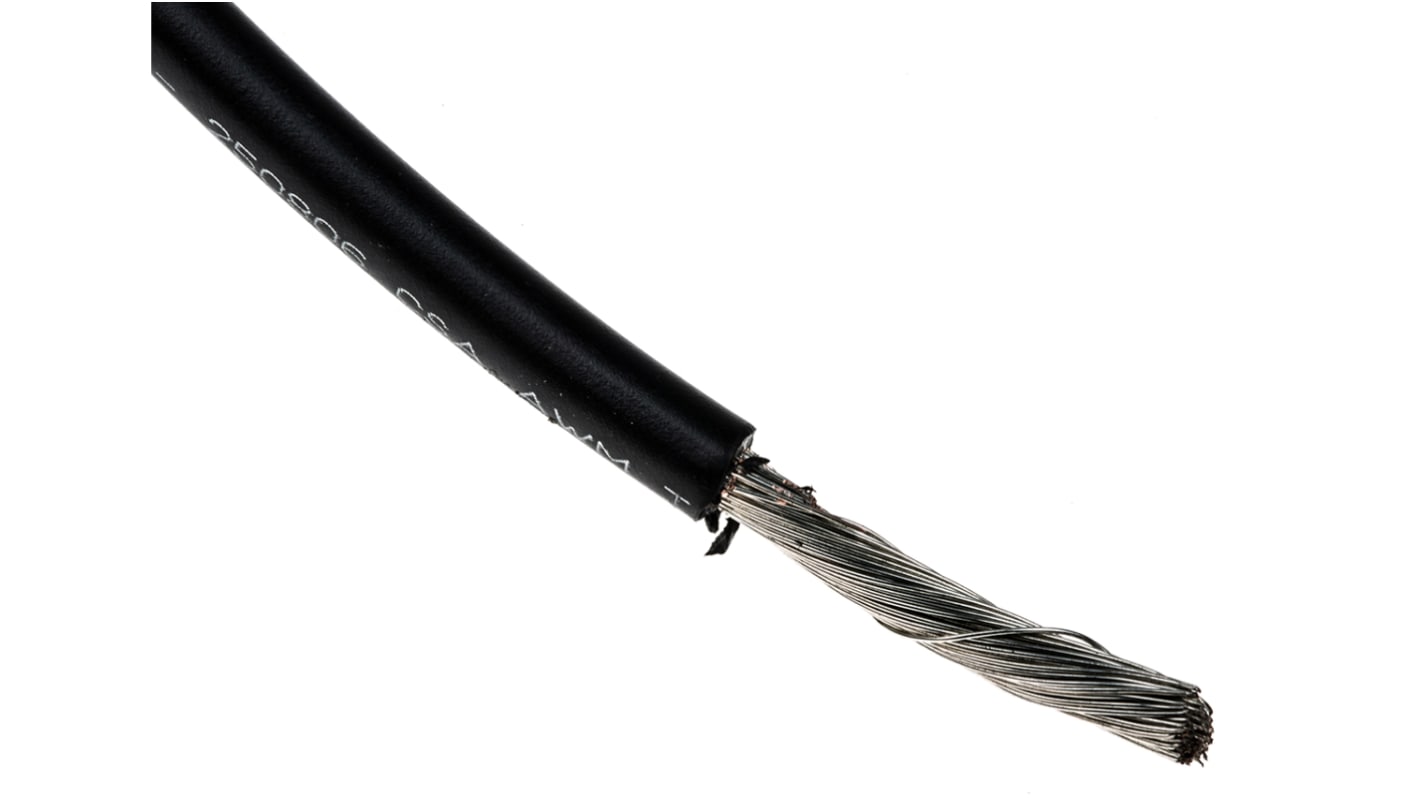

Alpha Wire Hook-up Wire PVC Series Black 5.2 mm² Hook Up Wire, 10 AWG, 105/0.25 mm, 100ft, PVC Insulation, 3081 BK005
- RS Stock No.:
- 842-5643
- Mfr. Part No.:
- 3081 BK005
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
€143.94
(exc. VAT)
€177.05
(inc. VAT)
In Stock
- 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €143.94 | €4.798 |
*price indicative
- RS Stock No.:
- 842-5643
- Mfr. Part No.:
- 3081 BK005
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 5.2 mm² | |
| Sheath Colour | Black | |
| Cable Shape | Wire/Single Core | |
| American Wire Gauge | 10 AWG | |
| Core Strands | 105/0.25 mm | |
| Length | 100ft | |
| Insulation Material | PVC | |
| Voltage Rating | 600 V | |
| Outer Diameter | 4.67mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | UL Listed | |
| Wire Style | UL1015 | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.8mm | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 105 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 5.2 mm² | ||
Sheath Colour Black | ||
Cable Shape Wire/Single Core | ||
American Wire Gauge 10 AWG | ||
Core Strands 105/0.25 mm | ||
Length 100ft | ||
Insulation Material PVC | ||
Voltage Rating 600 V | ||
Outer Diameter 4.67mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Standards Met UL Listed | ||
Wire Style UL1015 | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.8mm | ||
Size of Strands 0.25 mm | ||
Number of Strands 105 | ||
