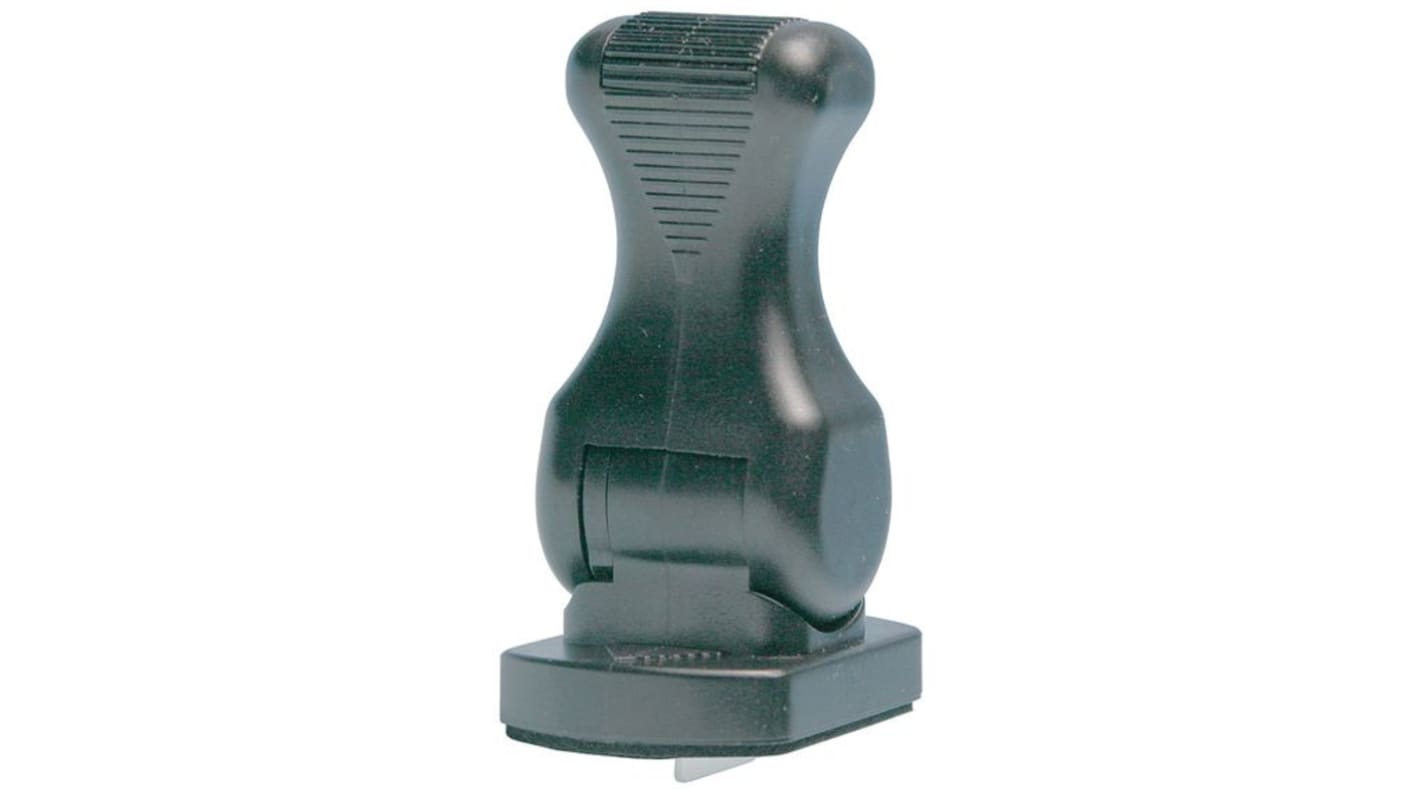

APEM 1-Axis Joystick Standard Hall Effect, IP67, 5 V dc, 20 mA
- RS Stock No.:
- 285-7201
- Distrelec Article No.:
- 164-13-412
- Mfr. Part No.:
- BF140A01BK00275
- Manufacturer:
- APEM
Subtotal (1 unit)*
€95.79
(exc. VAT)
€117.82
(inc. VAT)
Temporarily out of stock
- Shipping from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €95.79 |
*price indicative
- RS Stock No.:
- 285-7201
- Distrelec Article No.:
- 164-13-412
- Mfr. Part No.:
- BF140A01BK00275
- Manufacturer:
- APEM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Product Type | Joystick | |
| Number of Axes | 1 | |
| Series | BF | |
| Switch Technology | Hall Effect | |
| IP Rating | IP67 | |
| Handle Type | Standard | |
| Switch Contact Current | 20 mA | |
| Contact Material | Polycarbonate, Stainless Steel, Polyetherimide | |
| Joystick Travel | ±25° | |
| Contact DC Voltage | 5V dc | |
| Mechanical Life | 5000000Cycles | |
| Standards/Approvals | No | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Product Type Joystick | ||
Number of Axes 1 | ||
Series BF | ||
Switch Technology Hall Effect | ||
IP Rating IP67 | ||
Handle Type Standard | ||
Switch Contact Current 20 mA | ||
Contact Material Polycarbonate, Stainless Steel, Polyetherimide | ||
Joystick Travel ±25° | ||
Contact DC Voltage 5V dc | ||
Mechanical Life 5000000Cycles | ||
Standards/Approvals No | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- FR
The high precision contactless paddle controller combines the features of a contactless single-axis joystick and a switch in one control, offering versatility and convenience. With the latest Hall effect technology, it provides a range of output options including analog, switched, or custom PWM outputs. The BF140A01BK00275 features a sculpted ergonomic design for comfort and ease of use, as well as being IP67 sealed for durability. With its robustness, strength, and performance, this paddle controller is ideal for various applications that require precise and reliable control.
Contactless single-axis joystick and switch function
IP67 sealed for durability
Sculpted ergonomic design for comfort
Available with color-coded inserts
Dual redundant EMC and Magnetically shielded outputs
Industry standard connector for easy integration
End stackable mounting for flexibility
Next generation Hall effect technology for reliable performance
Wide range of gain and detent options for customized control
Suitable for both analog and PWM outputs
