HLMP-2450-EF000 Broadcom Light Bar LED Display, Yellow 38 mcd
- RS Stock No.:
- 195-079
- Mfr. Part No.:
- HLMP-2450-EF000
- Manufacturer:
- Broadcom
757 In stock for delivery within 2 working days
Added
Price Each
€3.03
(exc. VAT)
€3.73
(inc. VAT)
| Units | Per unit |
| 1 + | €3.03 |
- RS Stock No.:
- 195-079
- Mfr. Part No.:
- HLMP-2450-EF000
- Manufacturer:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details

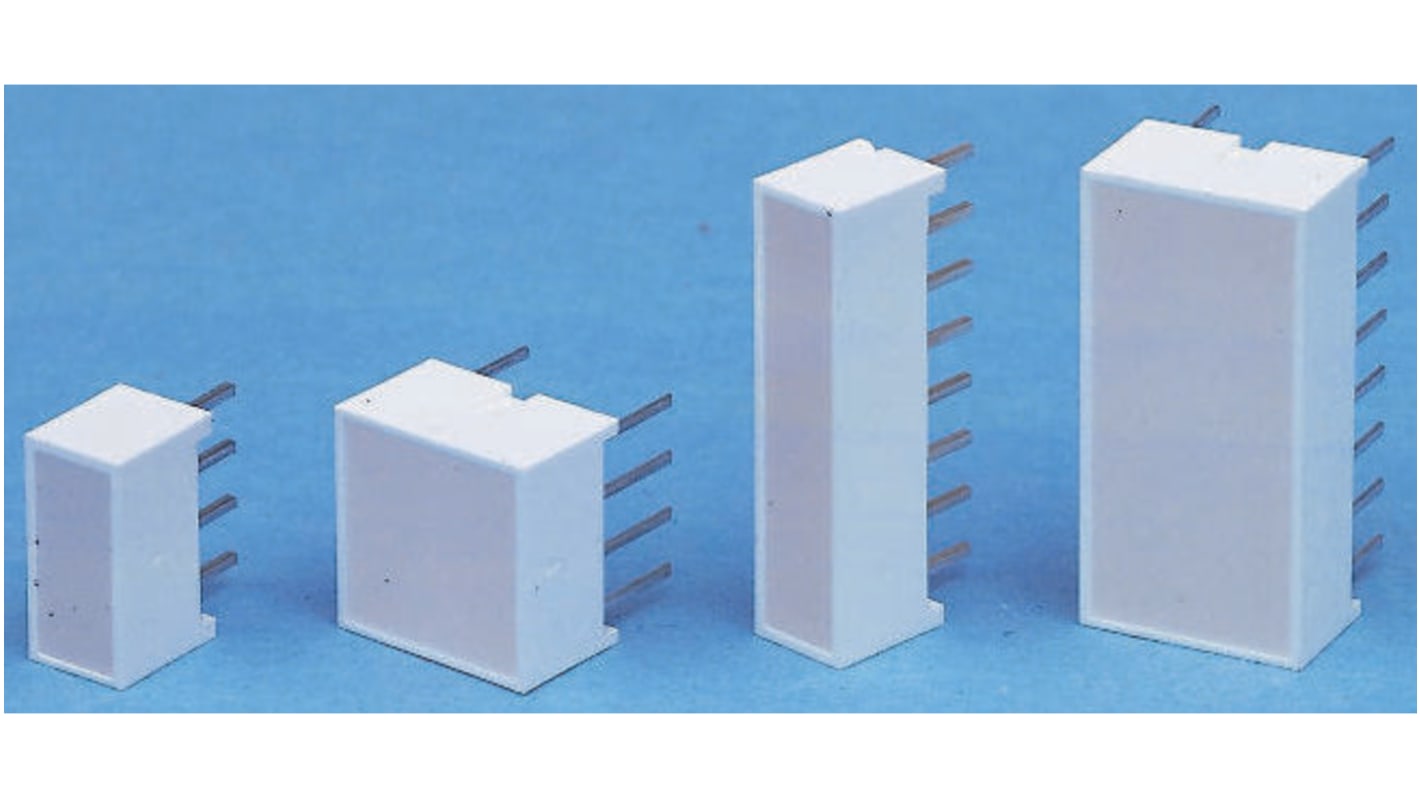

Broadcom HLCP-X100 and HLMP-2XXX Light Bar Arrays
The HLCP-X100 and HLMP-2XXX range of LED light bars are available in a range of sizes and colours. These LED light bars are ideal for applications which require a bright and uniform light.
HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.
HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.
Features of the HLCP-X100 and HLMP-2XXX LED light bars:
Rectangular LES (single or segment)
Uniform light emitting area
X-Y stackable
Flush mountable
Rectangular LES (single or segment)
Uniform light emitting area
X-Y stackable
Flush mountable
Caution
Observe Anti-static precautions when handling devices.
Broadcom Light Bar Arrays
Specifications
Attribute | Value |
|---|---|
| Display Type | Light Bar |
| LED Colours | Yellow |
| Number of Segments | 1 |
| Dominant Wavelength | 585 nm |
| Mounting Type | Through Hole |
| External Dimensions | 5 x 20.3 x 6.2mm |
| External Depth | 6.2mm |
| External Width | 20.3mm |
| External Height | 5mm |
| Luminous Intensity | 38 mcd |
| Colour of Face | White |
| Forward Voltage | 2.1 V |
| Maximum Operating Temperature | +85°C |
| Forward Current | 20mA |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
