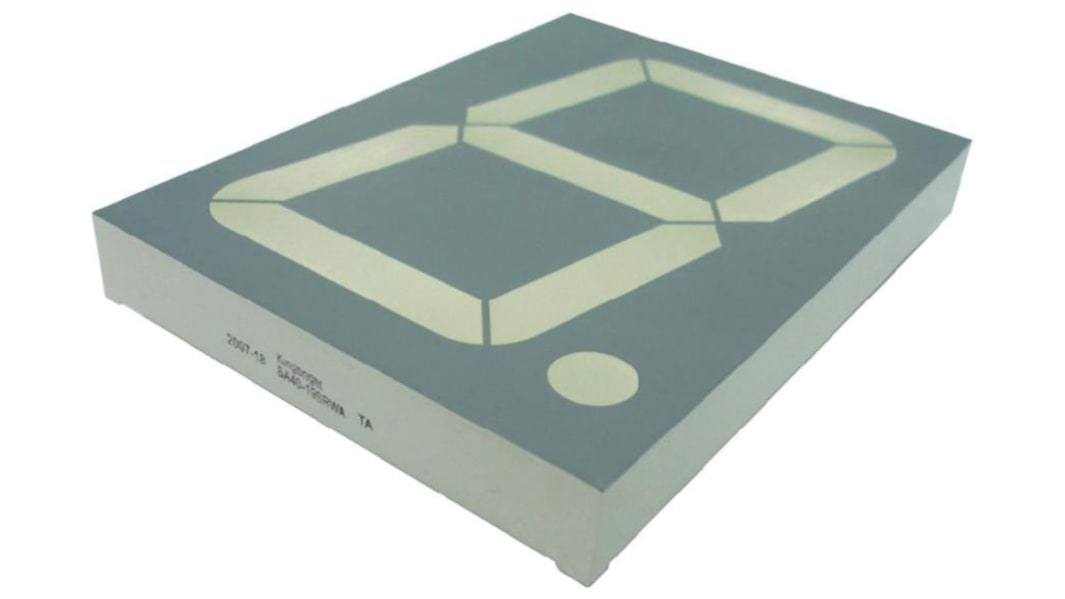

SA40-19SYKWA Kingbright 7-Segment LED Display, CA Yellow 450 mcd RH DP 101mm

View all LED Displays
Bulk discount available

Subtotal (1 unit)*

€24.36

(exc. VAT)

€29.96

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 3 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9€24.36
10 - 24€21.30
25 - 49€20.75
50 +€20.22

*price indicative

RS Stock No.:
860-9857
Mfr. Part No.:
SA40-19SYKWA
Manufacturer:
Kingbright
Find similar products by selecting one or more attributes.
Select all

Brand

Kingbright

Display Type

7-Segment

Number of Characters

1

LED Colours

Yellow

Number of Segments

7

Dominant Wavelength

590 nm

Character Width

59.5mm

Character Height

101mm

Common Connection

Anode

Mounting Type

Through Hole

External Height

15mm

External Dimensions

90 x 122 x 15mm

External Depth

122mm

External Width

90mm

Luminous Intensity

450 mcd

Colour of Face

Grey

Forward Voltage

4 V, 8 V

Power Dissipation

150 mW, 600 mW

Maximum Operating Temperature

+85°C

Forward Current

30 mA, 60 mA

Minimum Operating Temperature

-40°C

Decimal Orientation

Right Side

Operating Temperature Range

-40 → +85°C

COO (Country of Origin):
CN

Kingbright Single Digit, 101 & 127mm


A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
