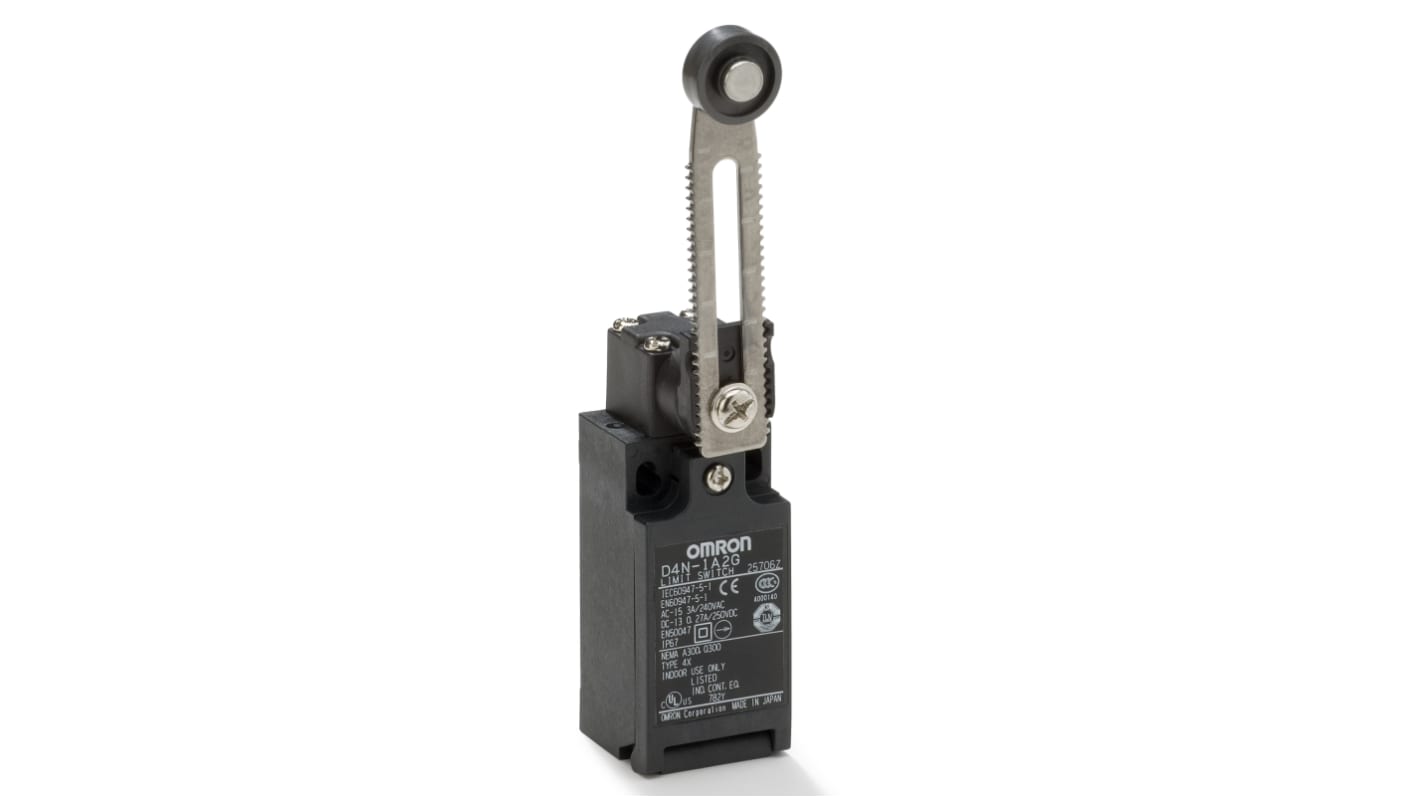

Omron D4n Series Adjustable Roller Lever Limit Switch, 1 NO/1 NC, IP67, Plastic Housing, 240V, 10A

RS Stock No.:: 214-7540
Distrelec Article No.:: 301-36-804
Mfr. Part No.:: D4N-912G
Manufacturer:: Omron

Omron D4n Series Adjustable Roller Lever Limit Switch, 1 NO/1 NC, IP67, Plastic Housing, 240V, 10A

Subtotal (1 unit)*

€70.36

(exc. VAT)

€86.54

(inc. VAT)

In Stock

12 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€70.36

*price indicative

RS Stock No.:: 214-7540
Distrelec Article No.:: 301-36-804
Mfr. Part No.:: D4N-912G
Manufacturer:: Omron

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Limit Switch
	Actuator Type	Adjustable Roller Lever
	IP Rating	IP67
	Contact Configuration	1 NO/1 NC
	Housing Material	Plastic
	Contact Type	Snap Action
	Switching Current	10A
	Terminal Type	Screw
	Series	D4n
	Switching DC Voltage	250V
	Switching AC Voltage	240V
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	+70°C
	Width	50mm
	Standards/Approvals	CCC, CE, CSA, UL, RoHS
	Length	72mm
	Depth	30mm
	Hazardous Area Certification	NO
	Mounting Orientation	Multi Directional
	Mechanical Life	15000000Cycles
	Operating Force	6.4N
	Conduit Entry	M12

	Select all
	Brand Omron
	Product Type Limit Switch
	Actuator Type Adjustable Roller Lever
	IP Rating IP67
	Contact Configuration 1 NO/1 NC
	Housing Material Plastic
	Contact Type Snap Action
	Switching Current 10A
	Terminal Type Screw
	Series D4n
	Switching DC Voltage 250V
	Switching AC Voltage 240V
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature +70°C
	Width 50mm
	Standards/Approvals CCC, CE, CSA, UL, RoHS
	Length 72mm
	Depth 30mm
	Hazardous Area Certification NO
	Mounting Orientation Multi Directional
	Mechanical Life 15000000Cycles
	Operating Force 6.4N
	Conduit Entry M12

Omron D4n Series Limit Switch, IP67, 10A Switching Current - D4N-912G

This limit switch provides electromechanical position sensing for industrial automation and control systems. Designed for machine and equipment interfaces, it offers snap-action contacts and an adjustable roller lever actuator to detect mechanical motion reliably in production, assembly and safety circuits.

Features & Benefits

• 1NO/1NC snap-action contacts give clear switching logic and fast response
• 10A switching capacity supports moderate current AC or DC loads
• IP67-rated enclosure protects against dust and temporary immersion
• Plastic housing reduces weight while maintaining environmental resistance
• Mechanical life of 15,000,000 cycles minimises maintenance intervals
• Operating range −30°C to +70°C allows use in varied temperature conditions

Applications

• Suitable for conveyor end-of-travel detection in manufacturing lines
• Ideal for position sensing on automated assembly equipment
• Used with safety interlocks on access panels and guards
• Can be used for stroke limits in pneumatic and hydraulic actuators
• Suitable for feedback in material handling and packaging systems

What connection method does it use for wiring?

Electrical connections are MADE via screw terminals designed for secure conductor retention.

How can it be mounted to accommodate different machine layouts?

The unit supports multi-directional mounting so it can be installed in varied orientations to suit machinery geometry.

What conduit entry option is provided for cable protection?

A cylindrical M12 conduit entry supplies a standardised gland Interface for cable entry and sealing.

What actuation force is required for reliable operation?

The mechanism operates with an approximate operating force of 6.4 N to ensure consistent actuation under load.

What voltages can the contacts switch in typical installations?

The contacts are rated for switching up to 240V AC and up to 250V DC for control and power signalling circuits.
