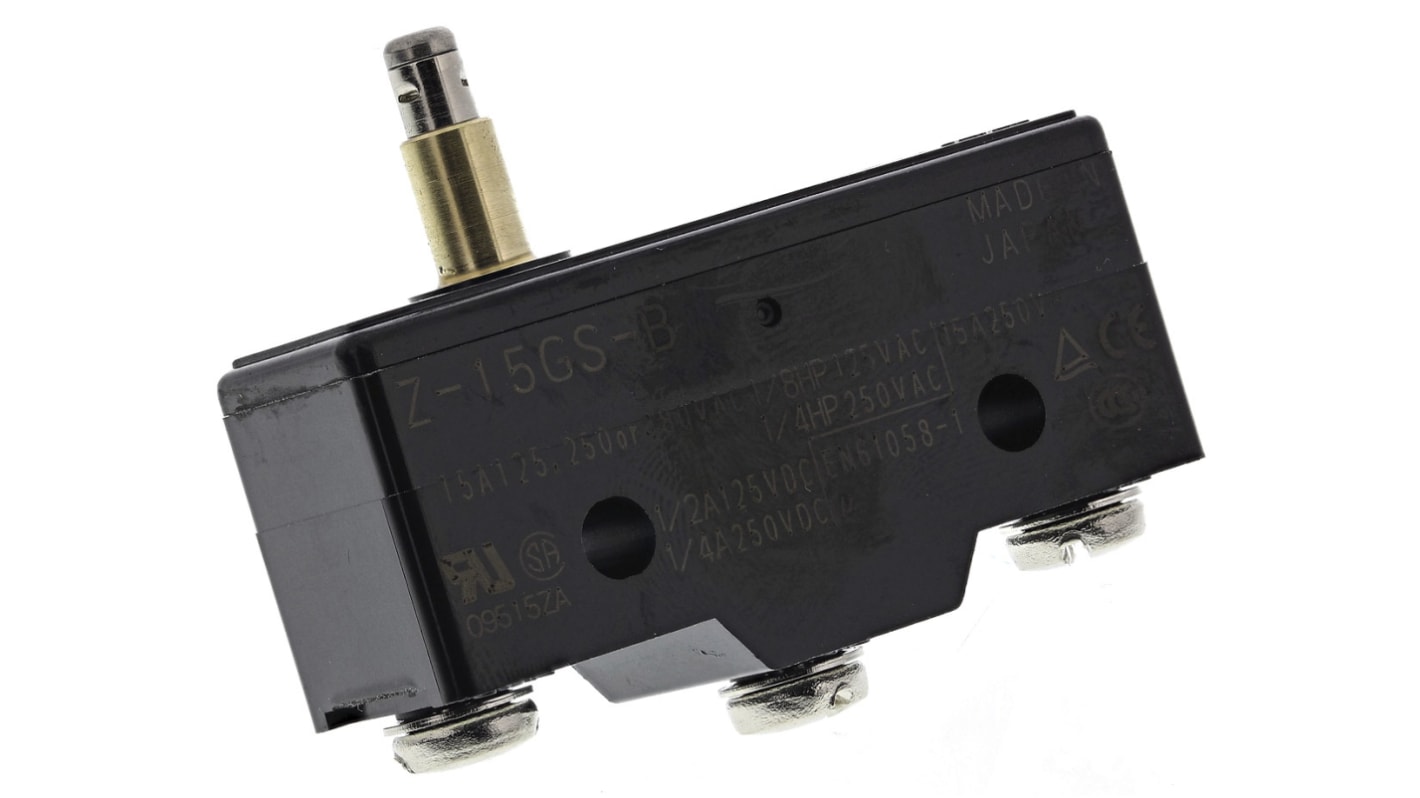

Omron Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

UL recognised, CSA

This limit switch is designed for precision functionality across industrial applications. Its robust construction and advanced features enable dependable operation, making it vital for automation and control systems. The plunger actuator mechanism facilitates accurate detection and response to mechanical movements, enhancing operational efficiency in manufacturing and assembly systems.

• Snap action mechanism ensures quick responsiveness
• High current capability supports up to 15A
• Housing made of thermosetting resin for durability
• SPDT configuration provides flexibility in electrical circuits

• Detects movement and position in machinery
• Employed in assembly lines for automated tasks
• Utilised in safety systems requiring precise actuation
• Suitable for controlling conveyors and robotic systems
• Commonly found in electrical enclosures for effective limit detection

Secure the switch with screws to a stable surface and connect the appropriate wires according to your circuit design.

The optimal operating temperature range is -25°C to +80°C.
