Select all	Attribute	Value
	Brand	onsemi
	Logic Function	Inverter
	Mounting Type	Surface Mount
	Number of Elements	6
	Schmitt Trigger Input	Yes
	Package Type	TSSOP
	Pin Count	14
	Logic Family	LVX
	Input Type	Schmitt Trigger
	Maximum Operating Supply Voltage	3.6 V
	Maximum High Level Output Current	-4mA
	Maximum Propagation Delay Time @ Maximum CL	23 ns @ 50 pF
	Minimum Operating Supply Voltage	2 V
	Maximum Low Level Output Current	4mA
	Length	5.1mm
	Propagation Delay Test Condition	50pF
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+85 °C
	Dimensions	5.1 x 4.5 x 1.05mm
	Width	4.5mm
	Height	1.05mm

	Select all
	Brand onsemi
	Logic Function Inverter
	Mounting Type Surface Mount
	Number of Elements 6
	Schmitt Trigger Input Yes
	Package Type TSSOP
	Pin Count 14
	Logic Family LVX
	Input Type Schmitt Trigger
	Maximum Operating Supply Voltage 3.6 V
	Maximum High Level Output Current -4mA
	Maximum Propagation Delay Time @ Maximum CL 23 ns @ 50 pF
	Minimum Operating Supply Voltage 2 V
	Maximum Low Level Output Current 4mA
	Length 5.1mm
	Propagation Delay Test Condition 50pF
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +85 °C
	Dimensions 5.1 x 4.5 x 1.05mm
	Width 4.5mm
	Height 1.05mm

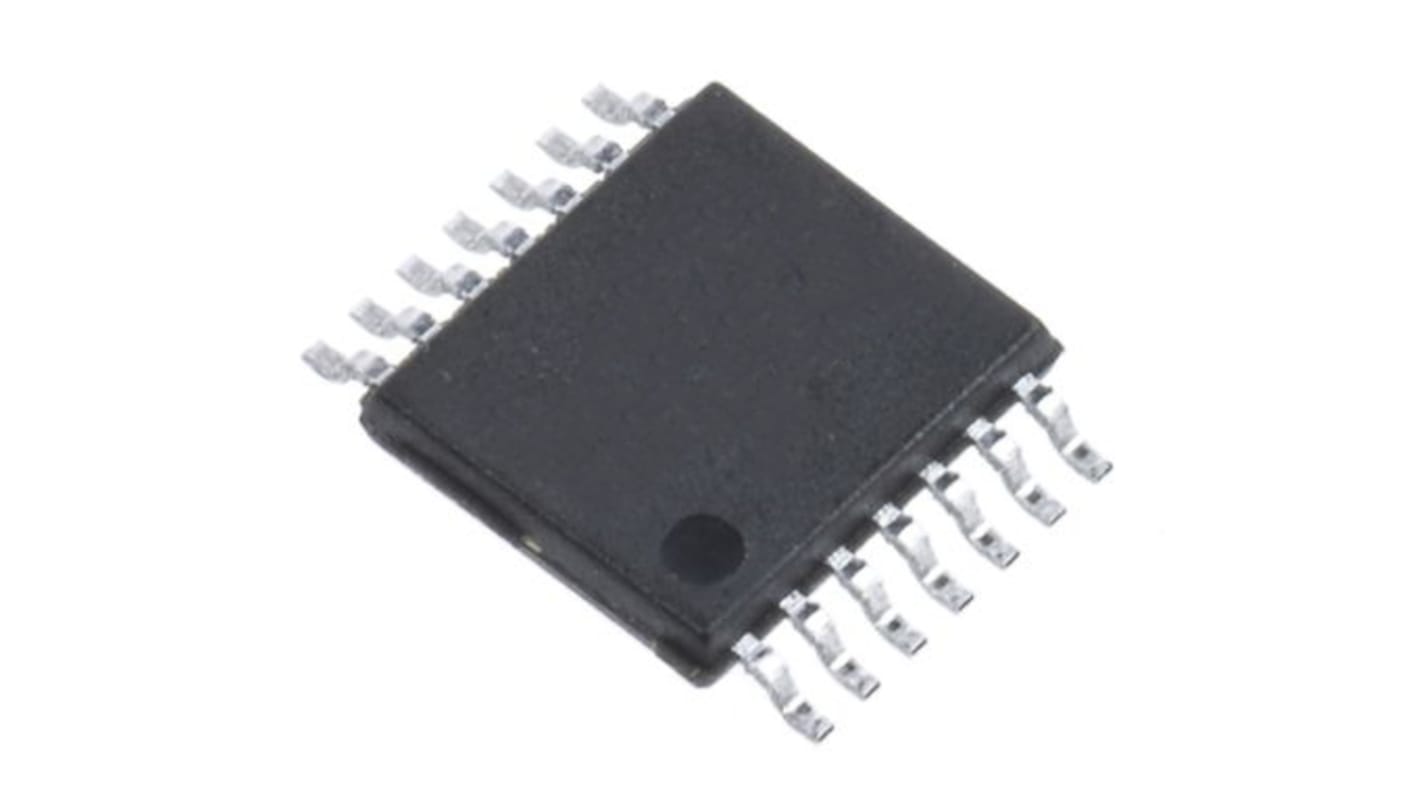

onsemi 74LVX14MTCX, Hex Inverter Schmitt Trigger Logic Gate, 14-Pin TSSOP
