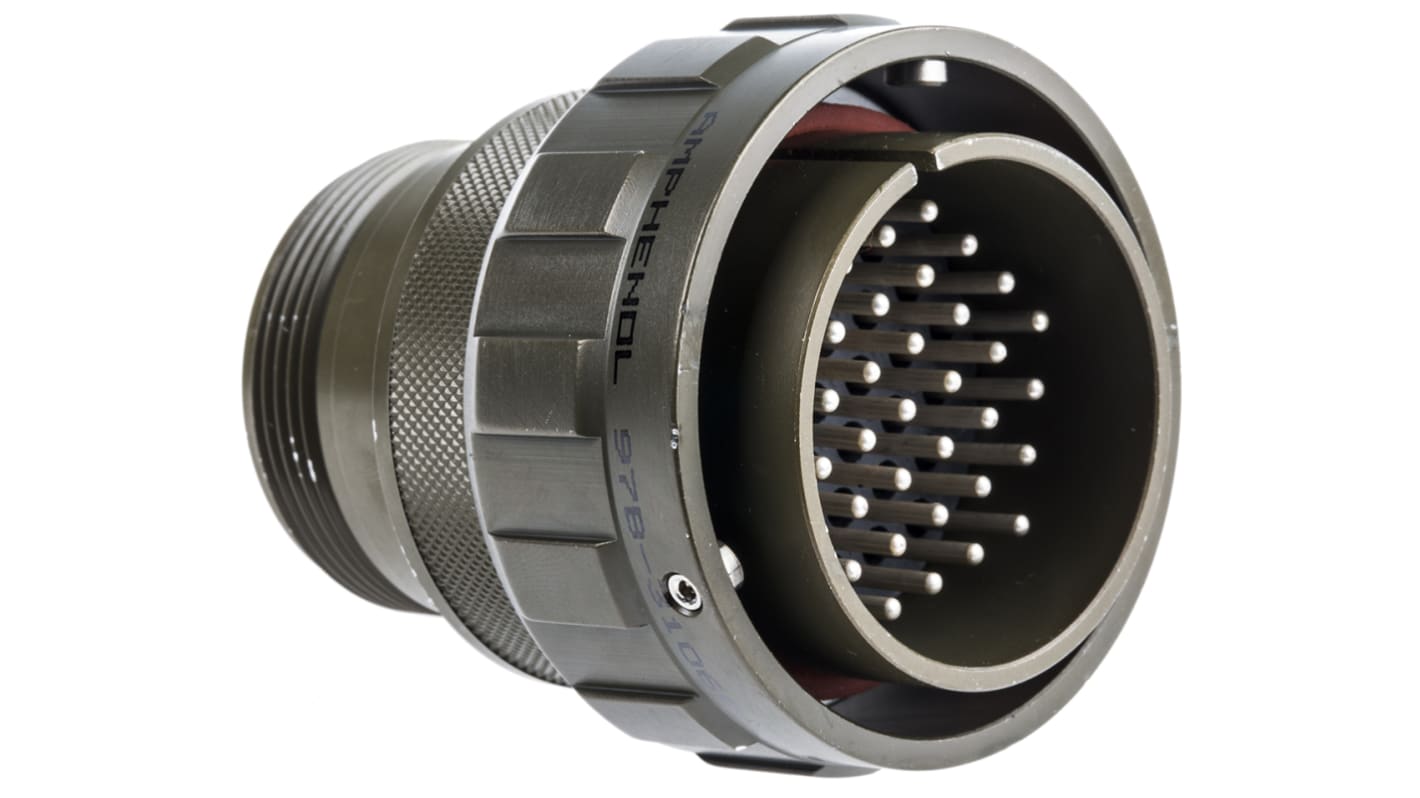

Amphenol Limited, 97B, Brass Straight 37 Way Cable MIL Spec Circular Connector Male Olive, Male Contacts,Shell Size 28,
- RS Stock No.:
- 442-2296
- Mfr. Part No.:
- 97B-3106A-28-21P-HD
- Manufacturer:
- Amphenol Limited
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
€96.10
(exc. VAT)
€118.20
(inc. VAT)
In Stock
- Plus 26 unit(s) shipping from 20 July 2026
- Plus 25 unit(s) shipping from 04 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €96.10 |
| 5 - 24 | €84.18 |
| 25 + | €72.08 |
*price indicative
- RS Stock No.:
- 442-2296
- Mfr. Part No.:
- 97B-3106A-28-21P-HD
- Manufacturer:
- Amphenol Limited
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Limited | |
| Number of Contacts | 37 | |
| Product Type | MIL Spec Circular Connector | |
| Contact Gender | Male | |
| Current | 13A | |
| Voltage | 500V ac | |
| Connector Gender | Male | |
| Shell Size | 28 | |
| Mount Type | Cable | |
| Military Standard | MIL-DTL-5015 | |
| Minimum Operating Temperature | -55°C | |
| Mating Type | Bayonet | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Connector Size | Standard | |
| Standards/Approvals | No | |
| Orientation | Straight | |
| Housing Material | Aluminium Alloy | |
| Series | 97B | |
| Colour | Olive | |
| Shell Plating | Olive Drab Cadmium | |
| Strain Relief | Yes | |
| Contact Material | Brass | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Amphenol Limited | ||
Number of Contacts 37 | ||
Product Type MIL Spec Circular Connector | ||
Contact Gender Male | ||
Current 13A | ||
Voltage 500V ac | ||
Connector Gender Male | ||
Shell Size 28 | ||
Mount Type Cable | ||
Military Standard MIL-DTL-5015 | ||
Minimum Operating Temperature -55°C | ||
Mating Type Bayonet | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Connector Size Standard | ||
Standards/Approvals No | ||
Orientation Straight | ||
Housing Material Aluminium Alloy | ||
Series 97B | ||
Colour Olive | ||
Shell Plating Olive Drab Cadmium | ||
Strain Relief Yes | ||
Contact Material Brass | ||
Contact Plating Silver | ||
Non Compliant
- COO (Country of Origin):
- IN
Cable Plugs and Sockets
From Amphenol, this 5015 series of military grade connectors are durable and versatile, offering a degree of environmental protection that makes them ideal for industrial purposes. Featuring bayonet coupling for an easy and reliable connection, these 5015 Series connectors are available in a variety of shell sizes and contact arrangements, in either male or female genders.
Olive Drab Mil-C-5015 Bayonet Lock
Bayonet locking, circular connectors which conform to MIL-C-5015 and are interconnectable with BS 9522 F0032 specification connectors.,All connectors, with the exception of four types, have size 16 contacts. The exceptions are as follows, with the contact size indicated within brackets - 20-A9 (size 12), 22-2 (size 8), 22-22 (size 8), and 24-2 (size 12). These connectors have a backshell (spacer tube) which may have to be discarded for certain cable clamps to be fitted.
Shell finish of aluminium alloy with olive drab finish
Polychloroprene insulator
Contacts of copper alloy with hard silver over nickel finish
Cable shells have arctic style finger grips
Solder bucket contacts
Note
Cable-mounting plugs (pin contacts) will only mate with chassis sockets. Cable-mounting sockets will only mate with chassis plugs.
Standards
BS 9522; F0032
