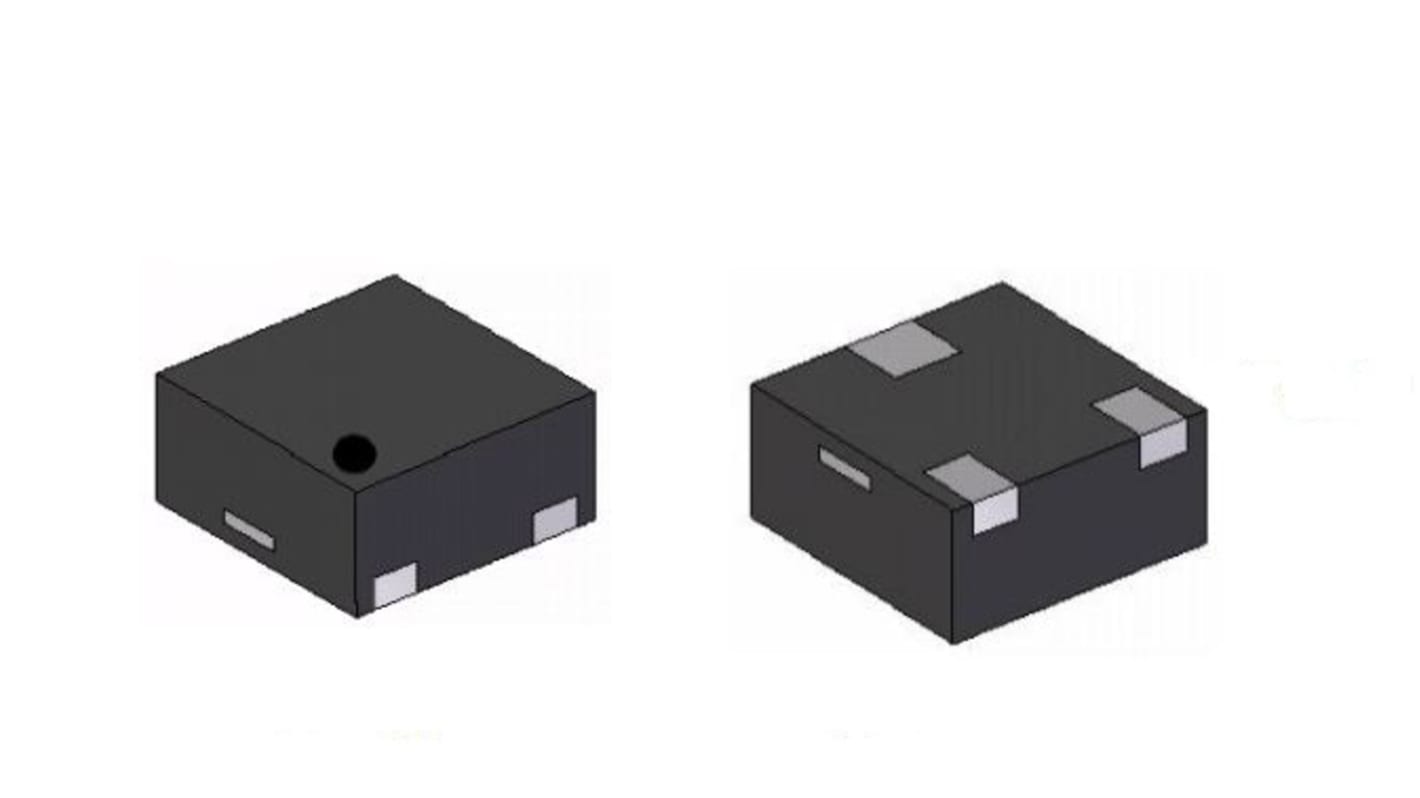

Diodes Inc P-Channel MOSFET, 600 mA, 20 V, 3-Pin X1-DFN1212 DMP21D6UFD-7 | RS

Diodes Inc P-Channel MOSFET, 600 mA, 20 V, 3-Pin X1-DFN1212 DMP21D6UFD-7

Bulk discount available

Subtotal (1 reel of 3000 units)**

€126.00

(exc. VAT)

€156.00

(inc. VAT)

Temporarily out of stock - back order for despatch 15-12-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

**price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Channel Type	P
	Maximum Continuous Drain Current	600 mA
	Maximum Drain Source Voltage	20 V
	Package Type	X1-DFN1212
	Mounting Type	Surface Mount
	Pin Count	3
	Maximum Drain Source Resistance	3 mΩ
	Channel Mode	Enhancement
	Maximum Gate Threshold Voltage	1V
	Minimum Gate Threshold Voltage	0.5V
	Maximum Power Dissipation	800 mW
	Transistor Configuration	Single
	Maximum Gate Source Voltage	±8 V
	Maximum Operating Temperature	+150 °C
	Typical Gate Charge @ Vgs	0.8 nC @ 8V
	Number of Elements per Chip	1
	Length	1.25mm
	Width	1.25mm
	Height	0.48mm
	Forward Diode Voltage	1.2V
	Minimum Operating Temperature	-55 °C

	Select all
	Brand DiodesZetex
	Channel Type P
	Maximum Continuous Drain Current 600 mA
	Maximum Drain Source Voltage 20 V
	Package Type X1-DFN1212
	Mounting Type Surface Mount
	Pin Count 3
	Maximum Drain Source Resistance 3 mΩ
	Channel Mode Enhancement
	Maximum Gate Threshold Voltage 1V
	Minimum Gate Threshold Voltage 0.5V
	Maximum Power Dissipation 800 mW
	Transistor Configuration Single
	Maximum Gate Source Voltage ±8 V
	Maximum Operating Temperature +150 °C
	Typical Gate Charge @ Vgs 0.8 nC @ 8V
	Number of Elements per Chip 1
	Length 1.25mm
	Width 1.25mm
	Height 0.48mm
	Forward Diode Voltage 1.2V
	Minimum Operating Temperature -55 °C
