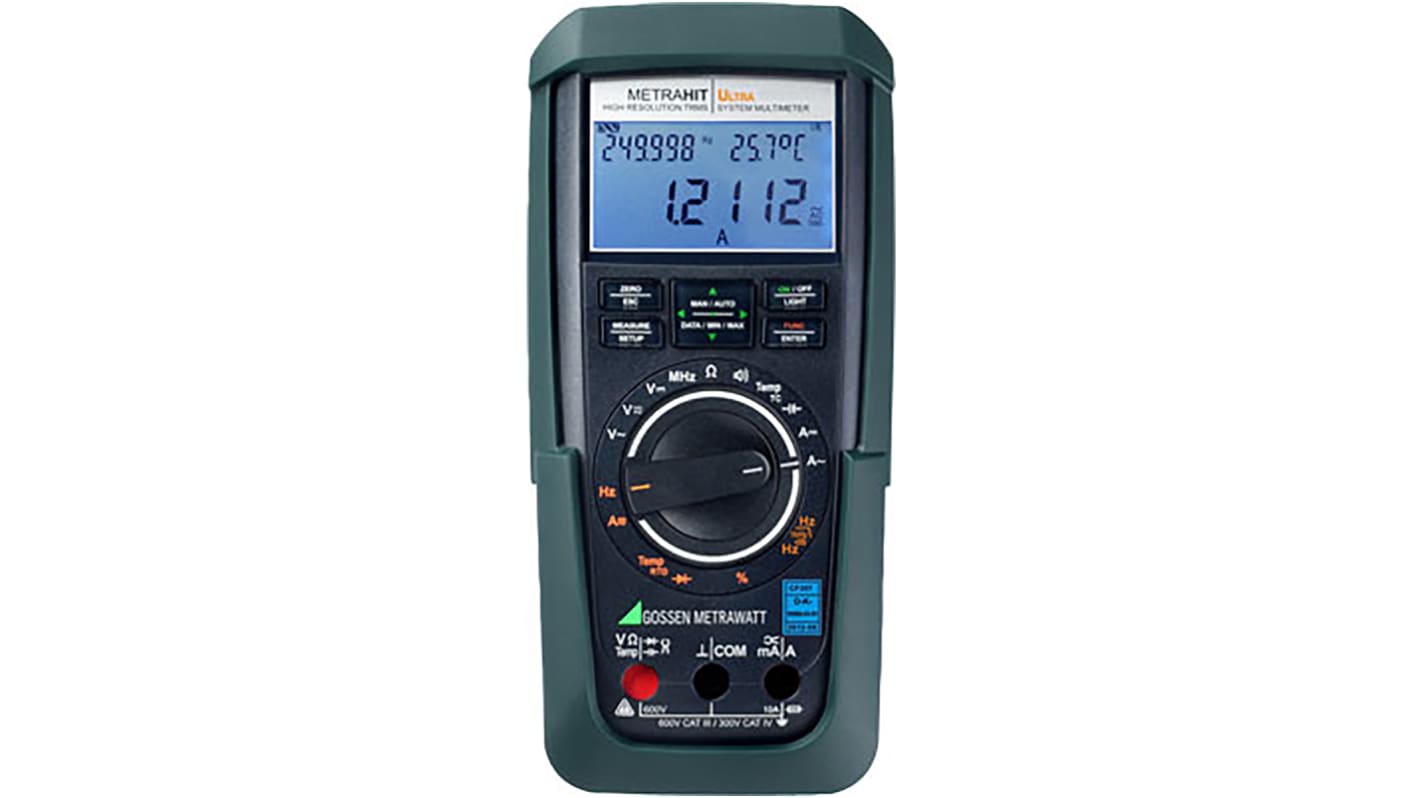

Gossen Metrawatt Digital Multimeter True RMS, 10 A, 10 A, 600 V

RS Stock No.:: 136-5804
Mfr. Part No.:: M248B
Manufacturer:: Gossen Metrawatt

Gossen Metrawatt Digital Multimeter True RMS, 10 A, 10 A, 600 V

Subtotal (1 unit)*

€1,200.84

(exc. VAT)

€1,477.03

(inc. VAT)

In Stock

3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€1,200.84

*price indicative

RS Stock No.:: 136-5804
Mfr. Part No.:: M248B
Manufacturer:: Gossen Metrawatt

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Gossen Metrawatt
	Product Type	Multimeter
	Multimeter Type	Digital
	Resistance Resolution	1mΩ
	Display Type	LCD
	Functions Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature
	Maximum Resistance Measurement	30000kΩ
	Maximum AC Voltage Measurement	600V
	Maximum DC Voltage Measurement	600V
	Maximum AC Current Measurement	10A
	Maximum DC Current Measurement	10A
	True RMS	Yes
	DC Current Accuracy	1 %
	DC Voltage Accuracy	1 %
	AC Voltage Resolution	10μV ac
	AC Current Resolution	10nA ac
	DC Voltage Resolution	1 μV dc
	Maximum Frequency	1MHz
	Power Source	Battery
	Minimum Operating Temperature	-100°C
	Battery Life	200h
	Maximum Operating Temperature	50°C
	Length	87mm
	Height	200mm
	Standards/Approvals	CE, DAkkS Calibration Certificate
	Width	45mm
	Weight	400g
	Safety Category Level	CAT III, CAT IV
	Battery Type	1.2 V Nickel Metal Hydride, 1.5 V AA Alkaline Manganese LR6
	Safety Category Voltage	600V

	Select all
	Brand Gossen Metrawatt
	Product Type Multimeter
	Multimeter Type Digital
	Resistance Resolution 1mΩ
	Display Type LCD
	Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature
	Maximum Resistance Measurement 30000kΩ
	Maximum AC Voltage Measurement 600V
	Maximum DC Voltage Measurement 600V
	Maximum AC Current Measurement 10A
	Maximum DC Current Measurement 10A
	True RMS Yes
	DC Current Accuracy 1 %
	DC Voltage Accuracy 1 %
	AC Voltage Resolution 10μV ac
	AC Current Resolution 10nA ac
	DC Voltage Resolution 1 μV dc
	Maximum Frequency 1MHz
	Power Source Battery
	Minimum Operating Temperature -100°C
	Battery Life 200h
	Maximum Operating Temperature 50°C
	Length 87mm
	Height 200mm
	Standards/Approvals CE, DAkkS Calibration Certificate
	Width 45mm
	Weight 400g
	Safety Category Level CAT III, CAT IV
	Battery Type 1.2 V Nickel Metal Hydride, 1.5 V AA Alkaline Manganese LR6
	Safety Category Voltage 600V

COO (Country of Origin):: DE

Gossen-Metrawatt Multimeter, 600V Safety Category Voltage, 10A Maximum AC Current Measurement - M248B

This multimeter is a handheld electronic instrument for measuring electrical parameters across a broad range of circuits and components. It is designed for field and workshop use, operating over a wide ambient temperature range, and provides digital readings for voltage, current, resistance, frequency and temperature while meeting recognised European standards.

Features and Benefits:

• *Made in Germany - including DAkkS calibration certificate and 3-year warranty (extendable to 5 years)
• True RMS measurement for accurate AC signal evaluation
• 1 MHz frequency range for fast signal characterisation
• 30 MΩ resistance range for high-impedance diagnostics
• 200 h battery life for extended on-site operation

Applications

• Suitable for verifying installation voltages up to 600 V
• Ideal for testing AC and DC currents up to 10 A
• Used for capacitance checks on control circuits
• Can be used for temperature measurement from −100 °C
• Suitable for diode testing and frequency troubleshooting

What battery types can it use?

It accepts 1.2 V NiMH cells or 1.5 V AA alkaline LR6 cells.

What safety ratings support electrical work on distribution systems?

It is rated for CAT III and CAT IV applications with a 600 V maximum.

How does it handle alternating current measurements?

It measures AC current up to 10 A and reports true RMS values for waveform accuracy.

What approvals validate its measurement traceability?

It includes a DAkkS calibration certificate and carries CE conformity.

What physical form factor and power supply are specified?

It is a portable digital unit powered by batteries and weighs 400 g.

Supplied with

KS17-2 cable set, AA batteries, condensed operating instructions in English and German, CD-ROM with operating instructions in multiple languages, DAkks calibration certificate and a protective rubber holster.
