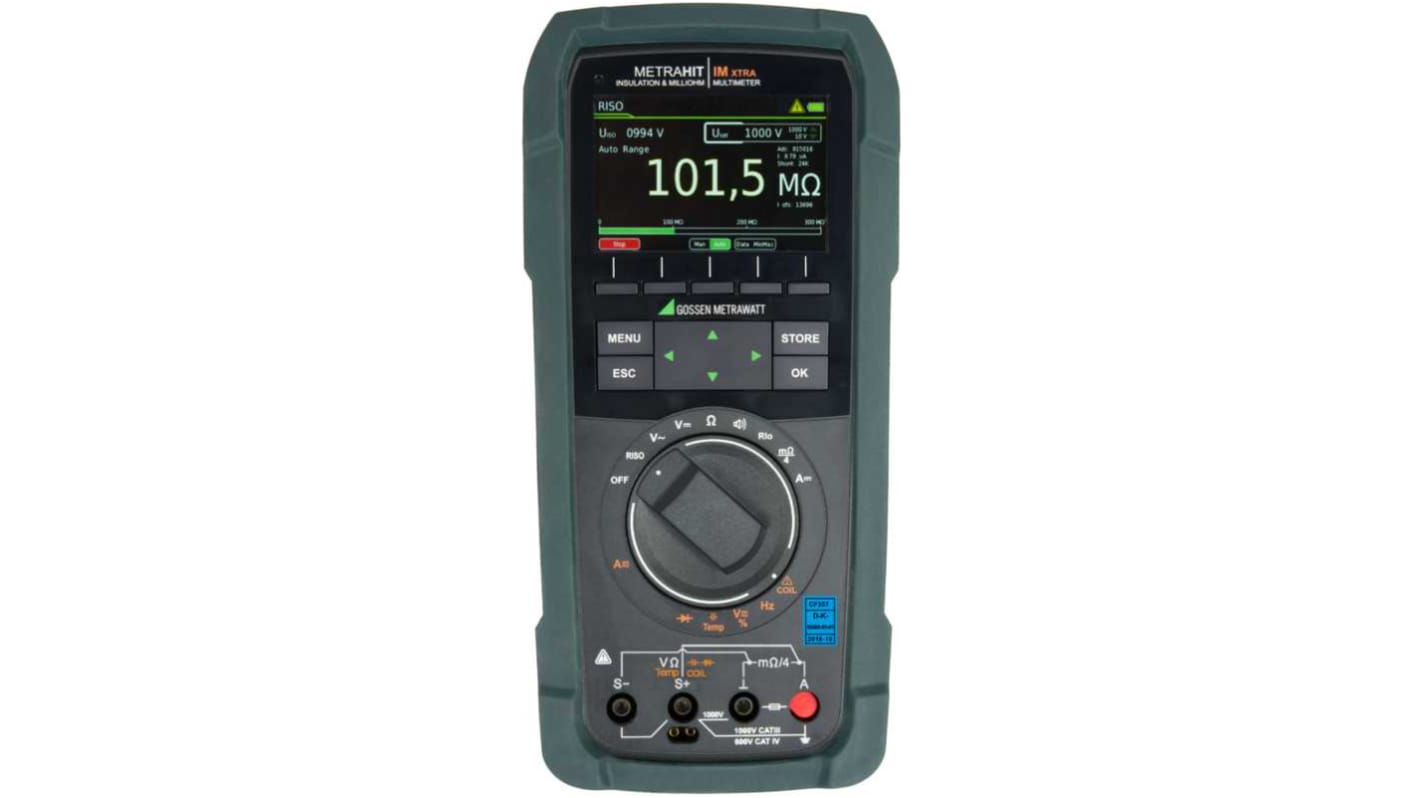

Gossen Metrawatt METRAHIT IM XTRA BT Handheld Digital Multimeter True RMS
- RS Stock No.:
- 260-8335
- Mfr. Part No.:
- M273S
- Manufacturer:
- Gossen Metrawatt
Subtotal (1 unit)*
€2,645.82
(exc. VAT)
€3,254.36
(inc. VAT)
In Stock
- Plus 4 unit(s) shipping from 23 February 2026
- Plus 7 unit(s) shipping from 23 February 2026
- Plus 1 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €2,645.82 |
*price indicative
- RS Stock No.:
- 260-8335
- Mfr. Part No.:
- M273S
- Manufacturer:
- Gossen Metrawatt
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Gossen Metrawatt | |
| Multimeter Type | Handheld | |
| Product Type | Multimeter | |
| Model Number | METRAHIT IM XTRA BT | |
| Display Type | Digital | |
| Functions Measured | Min, AC Current, Avg, AC Voltage, Max, Filter MLI, Resistance, Secondary Measurements, Diode, DC Current, Temperature, DC Voltage, Frequency, Continuity, REL, Capacitance, GRAPH | |
| Maximum Resistance Measurement | 3.1GΩ | |
| True RMS | Yes | |
| Maximum Frequency | 100kHz | |
| Power Source | Battery | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CE | |
| Weight | 0.7kg | |
| Width | 105 mm | |
| Height | 56mm | |
| Length | 235mm | |
| Safety Category Level | 600 V CAT IV, 1000 V CAT III | |
| Calibrated | UKAS | |
| Battery Type | Rechargeable, Lithium-ion | |
| Select all | ||
|---|---|---|
Brand Gossen Metrawatt | ||
Multimeter Type Handheld | ||
Product Type Multimeter | ||
Model Number METRAHIT IM XTRA BT | ||
Display Type Digital | ||
Functions Measured Min, AC Current, Avg, AC Voltage, Max, Filter MLI, Resistance, Secondary Measurements, Diode, DC Current, Temperature, DC Voltage, Frequency, Continuity, REL, Capacitance, GRAPH | ||
Maximum Resistance Measurement 3.1GΩ | ||
True RMS Yes | ||
Maximum Frequency 100kHz | ||
Power Source Battery | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CE | ||
Weight 0.7kg | ||
Width 105 mm | ||
Height 56mm | ||
Length 235mm | ||
Safety Category Level 600 V CAT IV, 1000 V CAT III | ||
Calibrated UKAS | ||
Battery Type Rechargeable, Lithium-ion | ||
- COO (Country of Origin):
- DE
The Gossen Metrawat M27 suited for service and diagnostics for electric machines and systems, in particular in the automotive industry, in electric machinery manufacturing and in aviation technology. Compact and multifunctional for use in the field. Can be used advantageously in aircraft cockpits as well as in other constricted spaces, which would otherwise require the use of several individual instruments.
Milliohm measurement using 4-wire connection with 200 mA or 1 A
Insulation tester with test voltage from 50 to 1000 V
Inter-turn short circuit test with 1000 V test voltage
High-end TRMS multimeter with 100 kHz bandwidth
