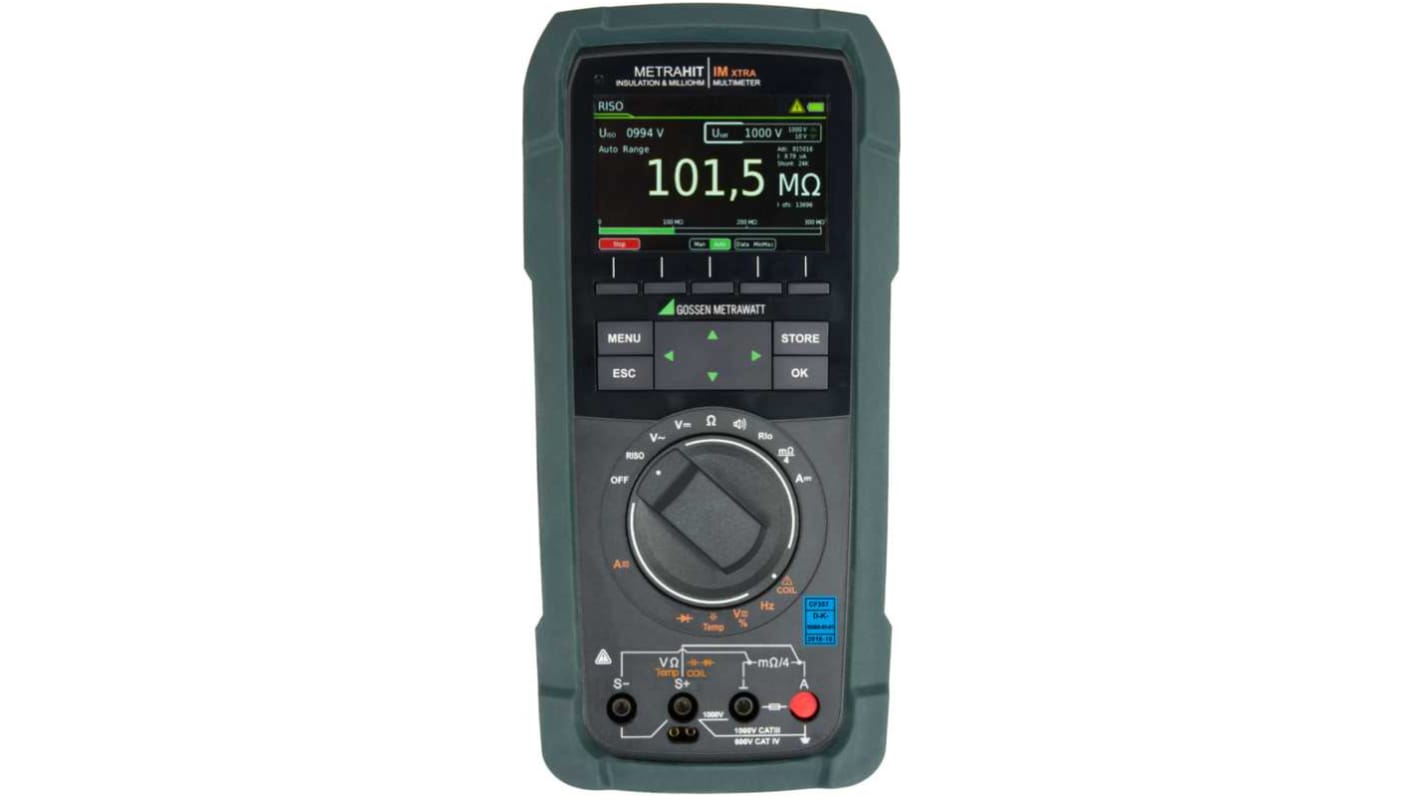

Gossen Metrawatt METRAHIT IM XTRA BT Digital Multimeter True RMS, 1 A, 1 A, 1 kV, RSCAL Calibrated

RS Stock No.:: 260-8334
Mfr. Part No.:: M273S
Manufacturer:: Gossen Metrawatt

Gossen Metrawatt METRAHIT IM XTRA BT Digital Multimeter True RMS, 1 A, 1 A, 1 kV, RSCAL Calibrated

Subtotal (1 unit)*

€2,729.60

(exc. VAT)

€3,357.41

(inc. VAT)

In Stock

16 unit(s) ready to ship from another location
Plus 5 unit(s) shipping from 13 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€2,729.60

*price indicative

RS Stock No.:: 260-8334
Mfr. Part No.:: M273S
Manufacturer:: Gossen Metrawatt

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Gossen Metrawatt
	Product Type	Multimeter
	Multimeter Type	Digital
	Resistance Resolution	0.10Ω
	Model Number	METRAHIT IM XTRA BT
	Display Type	Digital
	Functions Measured	AC Current, AC Voltage, Avg, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Filter MLI, Frequency, Max, Min, REL, Resistance, Secondary Measurements, Temperature
	Maximum AC Voltage Measurement	1kV
	Maximum Resistance Measurement	30000kΩ
	Maximum DC Voltage Measurement	1kV
	Maximum DC Current Measurement	1A
	Maximum AC Current Measurement	1A
	True RMS	Yes
	DC Voltage Resolution	0.01 mV
	DC Current Resolution	10nA
	AC Current Resolution	10nA
	AC Voltage Resolution	0.01mV
	Maximum Frequency	100kHz
	Power Source	Battery
	Minimum Operating Temperature	-10°C
	Battery Life	20h
	Maximum Operating Temperature	50°C
	Height	56mm
	Standards/Approvals	CE, DAkkS Calibration Certificate
	Width	105mm
	Length	235mm
	Weight	700g
	Safety Category Level	CAT III, CAT IV
	Calibrated	RSCAL
	Safety Category Voltage	1kV
	Battery Type	Rechargeable, Lithium-ion

	Select all
	Brand Gossen Metrawatt
	Product Type Multimeter
	Multimeter Type Digital
	Resistance Resolution 0.10Ω
	Model Number METRAHIT IM XTRA BT
	Display Type Digital
	Functions Measured AC Current, AC Voltage, Avg, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Filter MLI, Frequency, Max, Min, REL, Resistance, Secondary Measurements, Temperature
	Maximum AC Voltage Measurement 1kV
	Maximum Resistance Measurement 30000kΩ
	Maximum DC Voltage Measurement 1kV
	Maximum DC Current Measurement 1A
	Maximum AC Current Measurement 1A
	True RMS Yes
	DC Voltage Resolution 0.01 mV
	DC Current Resolution 10nA
	AC Current Resolution 10nA
	AC Voltage Resolution 0.01mV
	Maximum Frequency 100kHz
	Power Source Battery
	Minimum Operating Temperature -10°C
	Battery Life 20h
	Maximum Operating Temperature 50°C
	Height 56mm
	Standards/Approvals CE, DAkkS Calibration Certificate
	Width 105mm
	Length 235mm
	Weight 700g
	Safety Category Level CAT III, CAT IV
	Calibrated RSCAL
	Safety Category Voltage 1kV
	Battery Type Rechargeable, Lithium-ion

Datasheet - M273S

COO (Country of Origin):: DE

Gossen-Metrawatt Multimeter, 1000V Maximum DC Voltage, 1A Maximum DC Current - M273S

This handheld multimeter is a precision diagnostic instrument for measuring electrical parameters in industrial and field environments. It supports AC and DC measurements, frequency, capacitance and temperature sensing while operating from an internal rechargeable lithium‑ion battery. The unit provides true RMS readings for accurate assessment of non‑sinusoidal signals and includes safety ratings suitable for high‑voltage work up to 1000 V. It is supplied with a DAkkS calibration certificate for traceable measurement accuracy.

Features and Benefits:

• *Made in Germany - including DAkkS calibration certificate and 3-year warranty (extendable to 5 years)
• True RMS measurement for accurate non‑sinusoidal readings
• Resolution down to 0.01 μA and 0.01 mV for fine detection
• Wide measurement bandwidth up to 100kHz for high‑frequency signals
• Rechargeable lithium‑ion power delivering 20 h of operation
• CAT III and CAT IV rated for 1000 V industrial safety

Applications

• Suitable for validation of AC/DC power supplies and converters
• Ideal for commissioning high‑voltage distribution systems
• Used for testing frequency‑responsive components and filters
• Can be used for component‑level capacitance and continuity checks
• Suitable for temperature monitoring in electrical diagnostics

What display type does the instrument use?

It employs a digital display for numerical readouts and secondary measurements.

Which measurements exceed Basic multimeter capability?

It measures capacitance, frequency and temperature alongside voltage and current.

How wide is the operating temperature range?

It operates between -10 °C and 50 °C.

What resistance range can it measure?

It measures resistance up to 30 000 kΩ with 0.10 Ω resolution.

How portable is the unit in terms of size and mass?

Its external size is 235 x 105 x 56 mm and it weighs 700 g.
