Keysight Technologies Truevolt 34450A Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

RS Stock No.:: 773-9752
Distrelec Article No.:: 110-34-901
Mfr. Part No.:: 34450A
Manufacturer:: Keysight Technologies

Keysight Technologies Truevolt 34450A Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

Subtotal (1 unit)**

€1,066.00

(exc. VAT)

€1,311.18

(inc. VAT)

2 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit
1 +	€1,066.00

**price indicative

Calibration Options:

Keysight Technologies 34450A Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - RS Calibrated

Calibration Type:: RSCAL

RS Stock No.: 773-0843

Each

€1,158.00

(exc. VAT)

€1,424.34

(inc. VAT)

Keysight Technologies 34450A Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - UKAS Calibrated

Calibration Type:: UKAS

RS Stock No.: 773-0846

Each

€1,184.50

(exc. VAT)

€1,456.94

(inc. VAT)

RS Stock No.:: 773-9752
Distrelec Article No.:: 110-34-901
Mfr. Part No.:: 34450A
Manufacturer:: Keysight Technologies

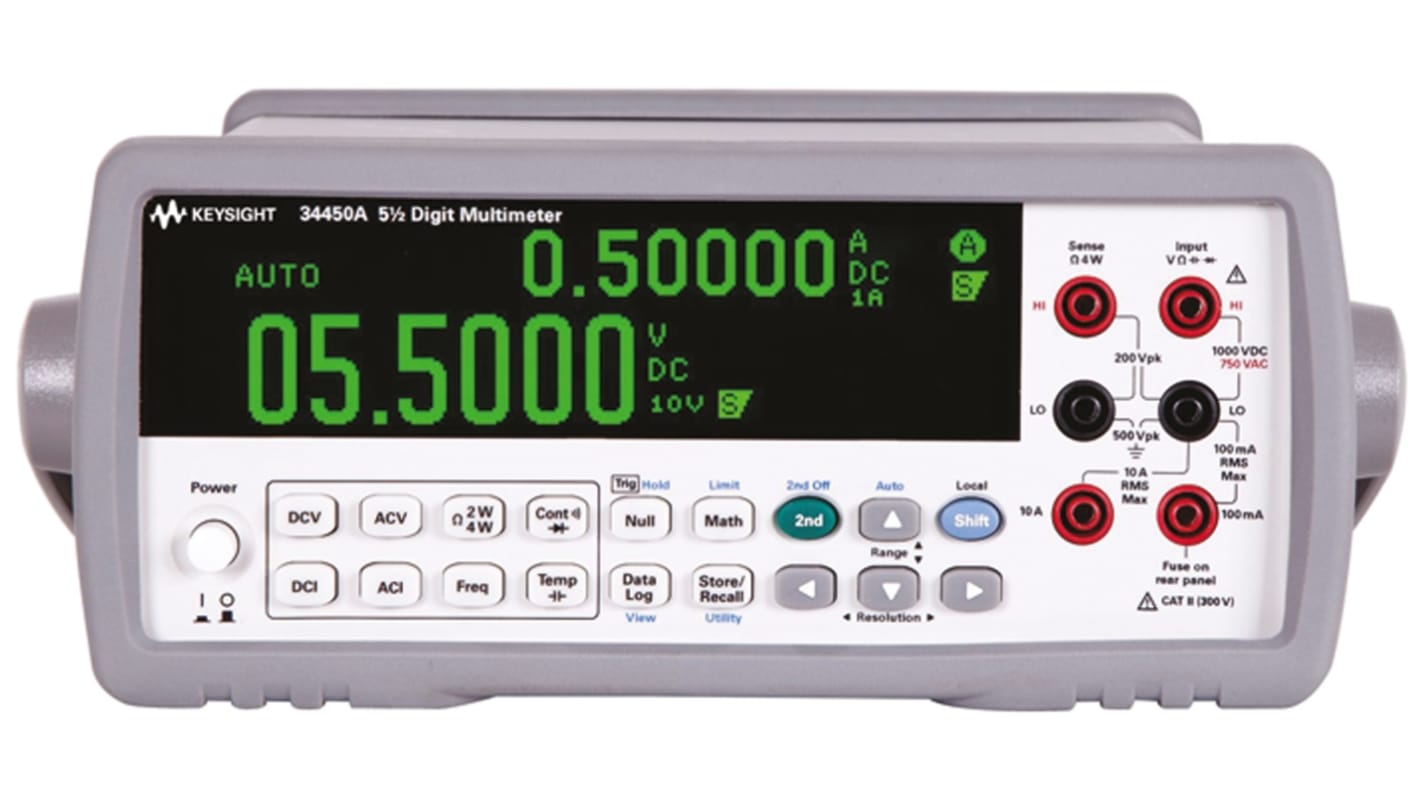

Keysight 34450A Multimeter, 5.5 digit

The Keysight 34450A is one of the fastest benchtop digital multimeters in its class, capable of measuring up to 190 readings per second with 0.015% DCV accuracy. It can deliver up to 50,000 readings of onboard memory, enabling users to log up to 14 hours of data at one sample per second. To simplify day-to-day tasks, the 34450A comes with a built-in histogram, performs basic statistical functions and provides simple data analysis.

Features and Benefits

• Up to 190 readings/second
• 0.015% DCV accuracy
• 11 measurement functions
• Ultra-bright OLED with dual display capability
• Up to 50,000 memory points for data logging
• Built-in histogram function

Further Insight

The 34450A offers a 5.5 digit OLED dual display that allows clear and quick view measurements such as trend and histogram charts offering further insight quickly. Trends can be detected faster, for example, histograms can be used to assess the variance of a measured value accurately and faster.

Triggering

The 34450A has a triggering function that allows you to initiate a measurement at desired conditions. This feature is used through the front panel during manual operation, while for an automated operation the Multimeter is controlled through the USB, GPIB or serial connector.

Data Logging

The 34450A allows you to store measurement results into its 50k non-volatile memory through the data logging function. You can perform data logging when using either single or dual display measurements.

Limit Test

Limit testing is an extra value-added feature of the 34450A. When the limit operation is enabled, the multimeter instantly notifies you if a measurement result falls outside the high or low limits you have pre-set before the series of measurements.

Digitising Data

Capturing a digital readout of log measurements or records for longer periods under PC control or upload data directly from the bench multimeter. Exporting data from a single Multimeter or multiple multimeters with time alignment, to programmes such as Microsoft Excel, Word and MATLAB.

Note

Upgrades available separately include: 773-9761 (3445GPBU) for GPIB connectivity on user's hardware; 773-9764 (3445MEMU) for up to 50,000 memory points to be saved to user's 34450A

Supplied with

Test lead set, power cord, USB interface cable, quick-start guide, product reference CD, Keysight I0 Library Suite CD-ROM

Supplied with

Test lead set, power cord, USB interface cable, Quick Start Guide, Product Reference CD, Agilent IO Library Suite CD-ROM

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keysight Technologies
	Multimeter Type	Bench
	Display Type	Digital
	Model Number p	Truevolt 34450A
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum AC Voltage Measurement	750V ac
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum Resistance Measurement	100MΩ
	True RMS	Yes
	Absolute Maximum Temperature Measurement	+150°C
	Absolute Maximum Capacitance Measurement	10mF
	Maximum Frequency	100kHz
	Safety Category Level	CAT I, CAT II
	Best DC Voltage Accuracy	±0.015 %
	Dimensions	261.1 x 303.2 x 103.8mm
	Length	261.1mm
	Width	303.2mm
	Best AC Current Accuracy	±0.5% + 0.1
	Weight	3.8kg
	Height	103.8mm
	Minimum Operating Temperature	0°C
	Best Capacitance Measurement Accuracy	1 + 0.5
	Best AC Voltage Accuracy	±0.2% + 0.1
	Best Temperature Measurement Accuracy	±0.2 °C
	Best DC Current Accuracy	±0.05% + 0.007
	Maximum Operating Temperature	+55°C
	Best Resistance Measurement Accuracy	±0.05% + 0.008
	Safety Category Voltage	600 V, 1000V

	Select all
	Brand Keysight Technologies
	Multimeter Type Bench
	Display Type Digital
	Model Number p Truevolt 34450A
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum AC Voltage Measurement 750V ac
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum Resistance Measurement 100MΩ
	True RMS Yes
	Absolute Maximum Temperature Measurement +150°C
	Absolute Maximum Capacitance Measurement 10mF
	Maximum Frequency 100kHz
	Safety Category Level CAT I, CAT II
	Best DC Voltage Accuracy ±0.015 %
	Dimensions 261.1 x 303.2 x 103.8mm
	Length 261.1mm
	Width 303.2mm
	Best AC Current Accuracy ±0.5% + 0.1
	Weight 3.8kg
	Height 103.8mm
	Minimum Operating Temperature 0°C
	Best Capacitance Measurement Accuracy 1 + 0.5
	Best AC Voltage Accuracy ±0.2% + 0.1
	Best Temperature Measurement Accuracy ±0.2 °C
	Best DC Current Accuracy ±0.05% + 0.007
	Maximum Operating Temperature +55°C
	Best Resistance Measurement Accuracy ±0.05% + 0.008
	Safety Category Voltage 600 V, 1000V
