Amprobe Digital Digital Multimeter, UKAS Calibrated
- RS Stock No.:
- 794-5023
- Mfr. Part No.:
- AM-520-EUR
- Manufacturer:
- Amprobe
Subtotal (1 unit)*
€238.50
(exc. VAT)
€293.36
(inc. VAT)
Temporarily out of stock
- Shipping from 21 July 2028
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €238.50 |
*price indicative
- RS Stock No.:
- 794-5023
- Mfr. Part No.:
- AM-520-EUR
- Manufacturer:
- Amprobe
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amprobe | |
| Multimeter Type | Digital | |
| Product Type | Multimeter | |
| Display Type | Digital | |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature | |
| True RMS | No | |
| DC Current Accuracy | ±1 % rdg + 2 Digits | |
| DC Voltage Accuracy | ±0.8 % rdg + 1 Digits | |
| AC Voltage Accuracy | ±1 % rdg + 3 Digits | |
| AC Current Accuracy | ± 1.2 % rdg + 3 Digits | |
| Maximum Frequency | 400Hz | |
| Resistance Measurement Accuracy | ±1.2 % rdg + 2 Digits | |
| Width | 90mm | |
| Standards/Approvals | No | |
| Weight | 354g | |
| Length | 182mm | |
| Height | 45mm | |
| Safety Category Level | CAT II, CAT III | |
| Calibrated | UKAS | |
| Safety Category Voltage | 1000V | |
| Select all | ||
|---|---|---|
Brand Amprobe | ||
Multimeter Type Digital | ||
Product Type Multimeter | ||
Display Type Digital | ||
Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature | ||
True RMS No | ||
DC Current Accuracy ±1 % rdg + 2 Digits | ||
DC Voltage Accuracy ±0.8 % rdg + 1 Digits | ||
AC Voltage Accuracy ±1 % rdg + 3 Digits | ||
AC Current Accuracy ± 1.2 % rdg + 3 Digits | ||
Maximum Frequency 400Hz | ||
Resistance Measurement Accuracy ±1.2 % rdg + 2 Digits | ||
Width 90mm | ||
Standards/Approvals No | ||
Weight 354g | ||
Length 182mm | ||
Height 45mm | ||
Safety Category Level CAT II, CAT III | ||
Calibrated UKAS | ||
Safety Category Voltage 1000V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
Fluke Multimeter, 400Hz Maximum Frequency, 354g Weight - AM-520-EUR

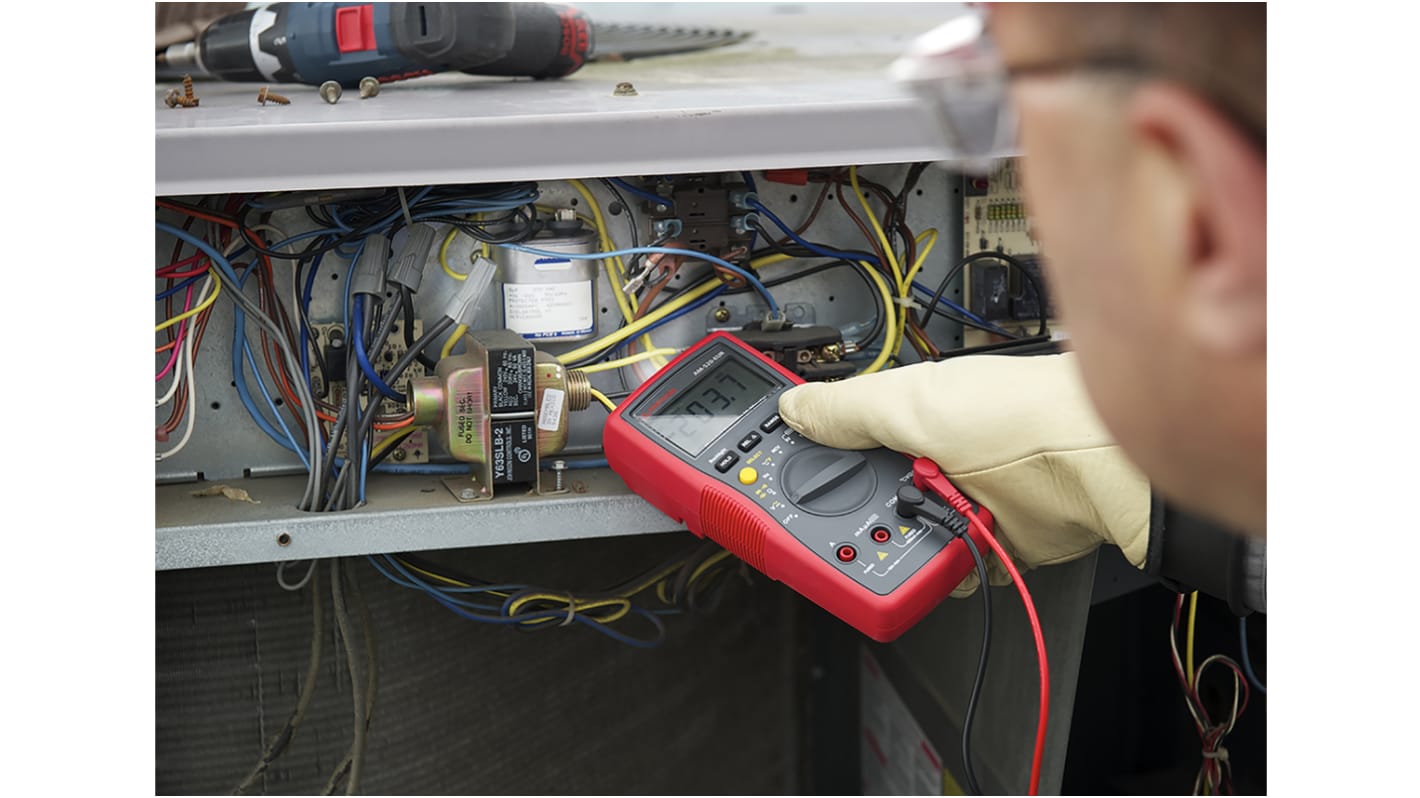

This multimeter is a handheld instrument designed for HVAC and electrical professionals to measure a wide range of electrical and temperature parameters in field environments. It provides voltage, current, resistance, capacitance and temperature measurement capability together with non-contact voltage detection and practical on-tool conveniences for troubleshooting and maintenance tasks.
Features & Benefits
• AC current accuracy ±1.2% rdg+3 digits supports precise HVAC current checks
• DC voltage ±0.8% rdg+1 digit for accurate DC system diagnostics
• Frequency measurement to 10MHz aids motor and signal verification
• Capacitance and temperature ranges verify motor start capacitors
• VolTect™ non-contact voltage detection improves safety during inspection
• Built-in torch and probe holder enable hands-free, low-light work
• DC voltage ±0.8% rdg+1 digit for accurate DC system diagnostics
• Frequency measurement to 10MHz aids motor and signal verification
• Capacitance and temperature ranges verify motor start capacitors
• VolTect™ non-contact voltage detection improves safety during inspection
• Built-in torch and probe holder enable hands-free, low-light work
**Applications**
• Suitable for flame-sensor micro-amp measurements during burner servicing
• Ideal for checking motor start-up capacitors and run components
• Used for verifying AC and DC supplies on automation panels
• Can be used for temperature checks on vents, transformers and fuses
• Used with field wiring to confirm continuity and diode behaviour
• Ideal for checking motor start-up capacitors and run components
• Used for verifying AC and DC supplies on automation panels
• Can be used for temperature checks on vents, transformers and fuses
• Used with field wiring to confirm continuity and diode behaviour
What measurement ranges are available for current and voltage?
It measures up to 10A for AC/DC current and up to 600V for both AC and DC ranges with autoranging and manual-ranging options.
How does the instrument display changing signals?
The backlit LCD includes an analogue bar graph to help monitor fast-changing values alongside numeric readings.
Which temperature probe type is supplied and what is the temperature span?
A K-type thermocouple probe is provided and the input covers −40°C to 1000°C.
What capacitance and frequency capabilities support motor diagnostics?
Capacitance ranges span from tens of nF to thousands of μF and frequency measurement extends from 10Hz to 10MHz for comprehensive component checks.
How is continuity and diode testing indicated?
Audible continuity is included and a diode-test function provides forward-voltage verification for rectifiers and semiconductor checks.
Standards
CAT III 600V, CAT II 1000V
Supplied with
• 1 x 9V(6F22) battery installed
• Test leads
• 1 x Type-K probe
• Velcro strap
• Carrying case and users manual
• Test leads
• 1 x Type-K probe
• Velcro strap
• Carrying case and users manual
