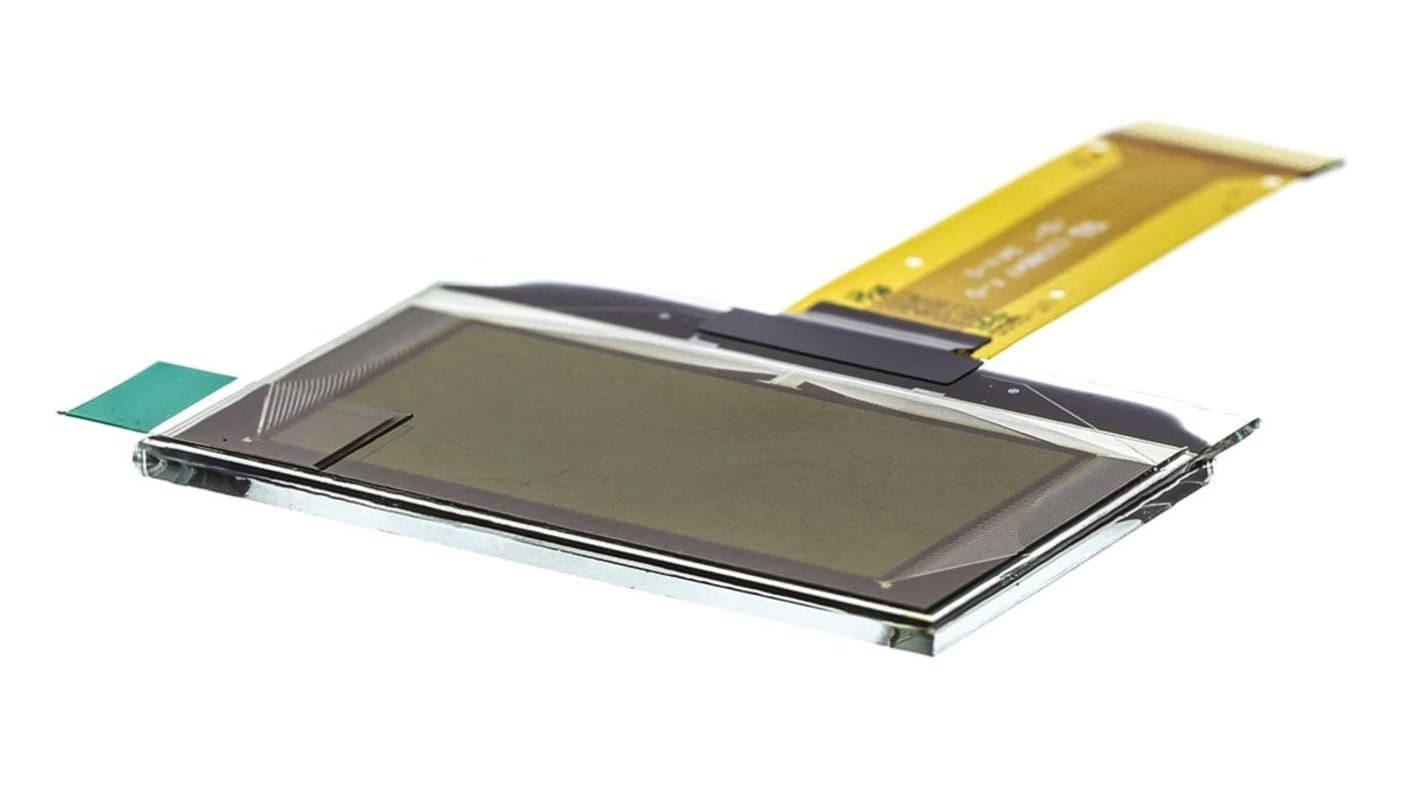

Univision 1.69 in Passive matrix Yellow OLED Display 128 x 64 pixel Matrix SPI
- RS Stock No.:
- 170-1815
- Mfr. Part No.:
- DD-12864YO-3A
- Manufacturer:
- Univision
Stock information currently inaccessible
- RS Stock No.:
- 170-1815
- Mfr. Part No.:
- DD-12864YO-3A
- Manufacturer:
- Univision
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Univision | |
| Diagonal Display Size | 1.69in | |
| Product Type | OLED Display | |
| Viewing Area Dimensions | 37.05 x 19.52 mm | |
| Matrix Type | Passive | |
| Screen Resolution | 128 x 64 pixel | |
| Interface Type | SPI | |
| Contrast Ratio | 1000:1 | |
| Driver Mounting | Matrix | |
| External Depth | 2mm | |
| Minimum Operating Temperature | -30°C | |
| External Width | 45.24mm | |
| External Height | 29.14mm | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Display Colour | Yellow | |
| Forward Voltage | 3.5V dc | |
| Forward Current | 300μA | |
| Select all | ||
|---|---|---|
Brand Univision | ||
Diagonal Display Size 1.69in | ||
Product Type OLED Display | ||
Viewing Area Dimensions 37.05 x 19.52 mm | ||
Matrix Type Passive | ||
Screen Resolution 128 x 64 pixel | ||
Interface Type SPI | ||
Contrast Ratio 1000:1 | ||
Driver Mounting Matrix | ||
External Depth 2mm | ||
Minimum Operating Temperature -30°C | ||
External Width 45.24mm | ||
External Height 29.14mm | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Display Colour Yellow | ||
Forward Voltage 3.5V dc | ||
Forward Current 300μA | ||
- COO (Country of Origin):
- TW
Univision Displays
A range of Organic LED (OLED) displays. Colour resolution varies from full (RGB), through 2 and 5 colour areas to single (monochrome).
Univision Passive Matrrix OLED Displays
