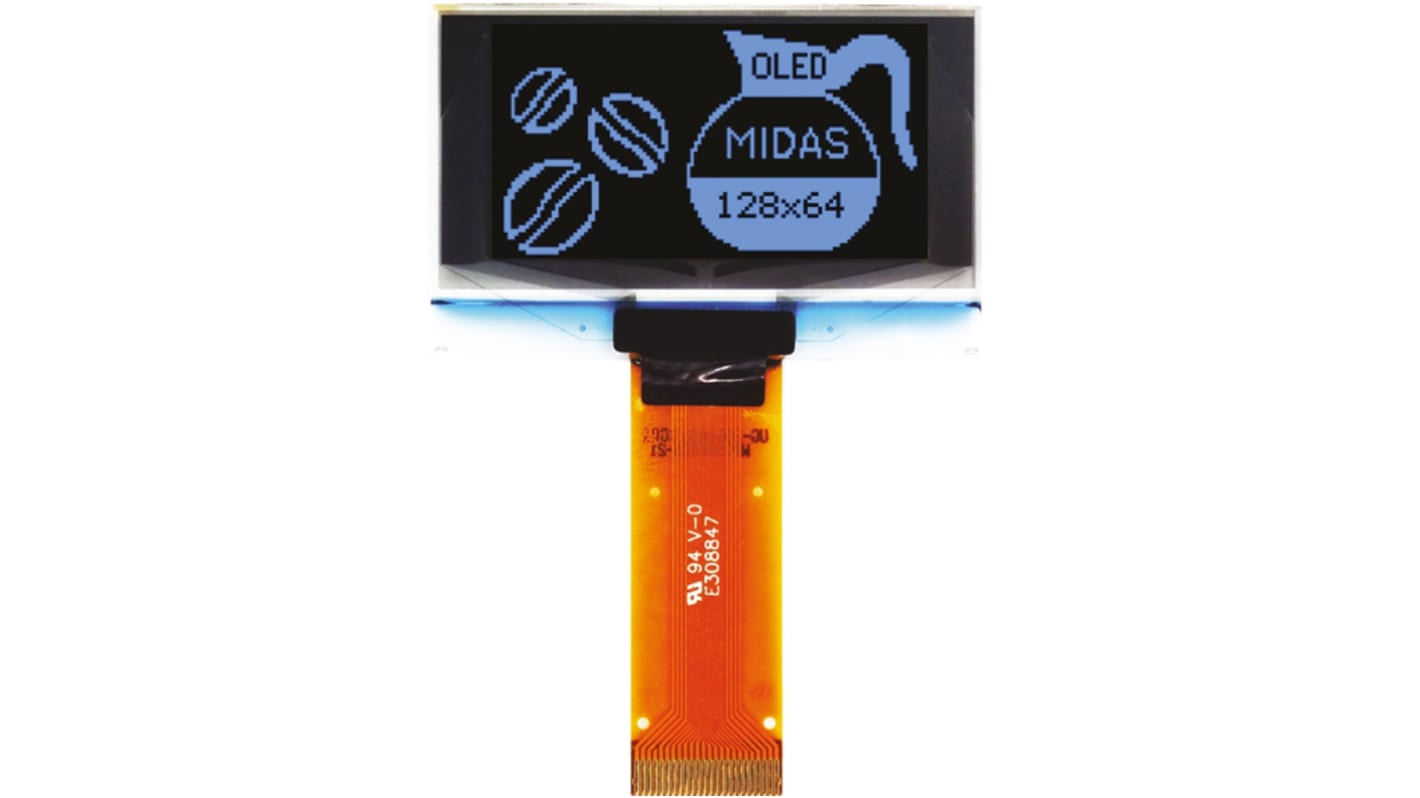

Midas 1.54 in Passive matrix Blue OLED Display 128 x 64 pixel TAB I2C, Parallel, SPI
- RS Stock No.:
- 823-5932
- Mfr. Part No.:
- MCOT128064BY-BM
- Manufacturer:
- Midas
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
€33.56
(exc. VAT)
€41.28
(inc. VAT)
Temporarily out of stock
- Shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | €33.56 |
| 10 - 19 | €31.42 |
| 20 + | €30.62 |
*price indicative
- RS Stock No.:
- 823-5932
- Mfr. Part No.:
- MCOT128064BY-BM
- Manufacturer:
- Midas
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Diagonal Display Size | 1.54in | |
| Product Type | OLED Display | |
| Viewing Area Dimensions | 37.05 x 19.51 mm | |
| Matrix Type | Passive | |
| Screen Resolution | 128 x 64 pixel | |
| Interface Type | I2C, Parallel, SPI | |
| Contrast Ratio | 10000:1 | |
| Driver Mounting | TAB | |
| External Depth | 1.45mm | |
| Minimum Operating Temperature | -40°C | |
| External Width | 42.04mm | |
| External Height | 27.22mm | |
| Maximum Operating Temperature | 70°C | |
| Touch Screen Type | OLED | |
| Standards/Approvals | No | |
| Forward Current | 300μA | |
| Forward Voltage | 3.3V dc | |
| Display Colour | Blue | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Diagonal Display Size 1.54in | ||
Product Type OLED Display | ||
Viewing Area Dimensions 37.05 x 19.51 mm | ||
Matrix Type Passive | ||
Screen Resolution 128 x 64 pixel | ||
Interface Type I2C, Parallel, SPI | ||
Contrast Ratio 10000:1 | ||
Driver Mounting TAB | ||
External Depth 1.45mm | ||
Minimum Operating Temperature -40°C | ||
External Width 42.04mm | ||
External Height 27.22mm | ||
Maximum Operating Temperature 70°C | ||
Touch Screen Type OLED | ||
Standards/Approvals No | ||
Forward Current 300μA | ||
Forward Voltage 3.3V dc | ||
Display Colour Blue | ||
- COO (Country of Origin):
- TW
Midas Graphic OLED Displays, TAB
A range of TAB (Taped Automated Bonding) monochrome OLED displays from Midas. These TAB displays allow for very compact, low-profile modules and require significantly less space than traditional LCD graphics modules. The Passive Matrix OLED technology provides high-visibility displays with outstanding visual characteristics, including high contrast and wide viewing angles. The modules are available in a wide range of display colours and resolutions, and have a typical operating life of 60,000 hours.
Viewing angle: > 160° horizontal and vertical
Contrast ratio: > 2000:1
Operating temperature range: -30 to 70°C
Operating life: 60,000 hours at 25°C
Interface type: Parallel/Serial (823-5948 has I2C only)
Midas Graphic PMOLED Displays
Note
Some versions have a wider operating temperature range and higher contrast ratio – see manufacturer’s data for details.
