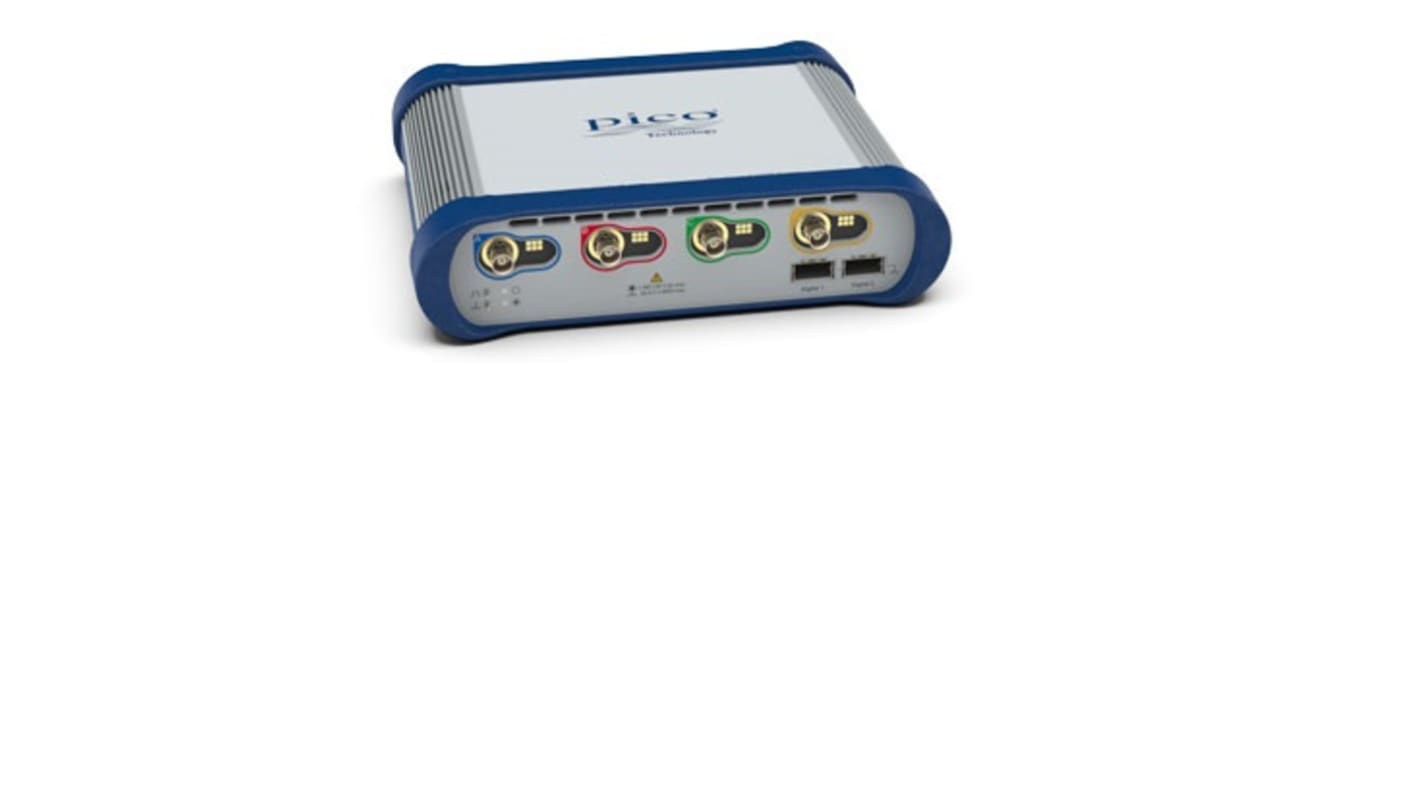

Pico Technology 6425E PicoScope 6000E Series, 750MHz PC Based Oscilloscope, 4 Analogue Channels - RS Calibrated

The PicoScope 6000E Series fixed-resolution and FlexRes mixed-signal oscilloscopes provide 8 to 12 bits of vertical resolution, with up to 1 GHz bandwidth and 5 GS/s sampling rate.

Models with four or eight analog channels have the timing and amplitude resolution you need to reveal critical signal integrity issues such as timing errors, glitches, dropouts, crosstalk and metastability issues.

Up to 1 GHz bandwidth
8-bit to 12-bit FlexRes® ADC
A choice of 4 (up to 1 GHz) or 8 (up to 500 MHz) analog channels
Supports up to 16 digital MSO channels
200 ms capture time at 5 GS/s
Up to 4 GS capture memory
50 MHz 200 MS/s 14-bit AWG
300 000 waveforms per second update rate
PicoScope, PicoLog® and PicoSDK® software included
21 serial protocol decoder / analyzers included
Mask limit testing and user-definable alarms
High-resolution time-stamping of waveforms
Over ten million DeepMeasure™ results per acquisition
Advanced triggers: edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt and logic

These oscilloscopes, with PicoScope 6 application software, are ideal for design engineers working with high-performance embedded systems, signal processing, power electronics, mechatronics and automotive designs, and for researchers and scientists working on multichannel high-performance experiments in physics labs, particle accelerators and similar facilities.

The PicoScope 6000E Application Programming Interface (API) provides programming access to the full set of advanced hardware features and can be used to develop diverse custom and OEM applications.

PicoScope 6000E Series PC oscilloscope
P2056 10:1 500 MHz passive probes
User’s Guide
12 V power adaptor, universal input
USB cable, 1.8 m
Storage/carry case

Pollution degree: EN 61010 pollution degree 2
Safety compliance: Designed to EN 61010-1:2010 + A1:2019
EMC compliance: Tested to EN61326-1:2013 and FCC Part 15 Subpart B
Environmental compliance: RoHS, REACH, WEEE
Warranty: 5 years
