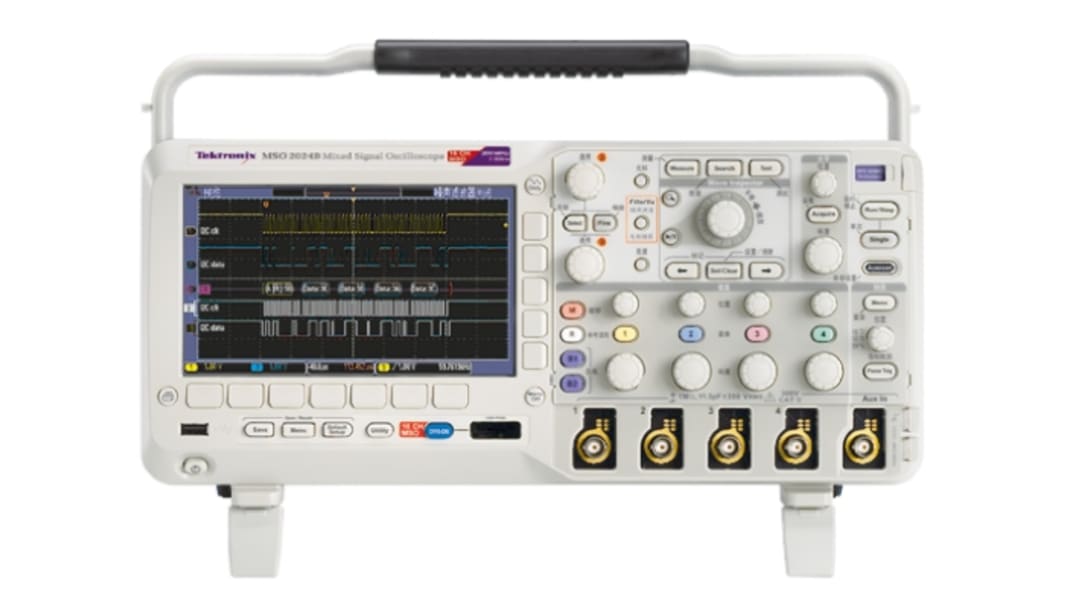

Tektronix MSO2014 MSO2000B Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels

RS Stock No.:: 768-3380
Mfr. Part No.:: MSO2014B
Manufacturer:: Tektronix

Tektronix MSO2014 MSO2000B Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels

1 / 2

Subtotal (1 unit)**

€4,355.40

(exc. VAT)

€5,357.14

(inc. VAT)

Temporarily out of stock - back order for despatch when stock is available*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 +	€4,355.40

**price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Tektronix MSO24 MSO2 Series, 100MHz Bench, Portable, Ultra Compact Oscilloscope, 4 Analogue Channels, 16 Digital

RS Stock No.: 240-8194

Each

€3,372.00

(exc. VAT)

€4,147.56

(inc. VAT)

RS Stock No.:: 768-3380
Mfr. Part No.:: MSO2014B
Manufacturer:: Tektronix

Tektronix Mixed Signal Oscilloscopes MSO2000B Series

Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the MSO2000B Mixed Signal Oscilloscope Series from Tektronix delivers advanced debug features at an entry-level price. Users can quickly find and diagnose problems in complex designs with up to 20 channels for analysing analogue and digital signals. With a deep record length of 1 Mpoints standard on all channels, the MSO2000B lets you capture long windows of signal activity while maintaining fine timing resolution.

The MSO2000B Series offers 16 digital channels in addition to its analogue channels. Since the digital channels are fully integrated into the oscilloscope, you can trigger across all input channels, automatically time-correlating all analogue, digital, and serial signals.

The MSO2000B Series offers a comprehensive set of integrated analysis tools including waveform- and screen-based cursors, 29 automated measurements, and FFT analysis. Specialised application support for serial bus analysis is also available.

Features and Benefits

• 200, 100, 70 MHz bandwidth models

• 2 and 4 analogue channel models

• 16 digital channels

• 1 GS/s sample rate on all channels

• 1 mega-point record length on all channels

• 5000 wfm/s maximum waveform capture rate

• Suite of advanced triggers

• Wave Inspector® controls provide easy navigation and automated search of waveform data

• FilterVu™ variable low-pass filter allows for removal of unwanted signal noise while still capturing high-frequency events

• 29 automated measurements, and FFT analysis for simplified waveform analysis

• TekVPI® probe interface supports active, differential, and current probes for automatic scaling and units

• 7" (180 mm) wide-screen TFT-LCD colour display

• Small footprint and Lightweight, only 5.3" (134 mm) deep and 7 lb 14 oz (3.6 kg)

• Automated serial triggering, decode, and search options for I2C, SPI, CAN, LIN, and RS-232/422/485/UART

Connectivity

• USB 2.0 host port on the front panel for quick and easy data storage

• USB 2.0 device port on rear panel for easy connection to a PC or direct printing to a PictBridge®-compatible printer

• Optional 10/100 Ethernet port for network connection and video-out port to export the oscilloscope display to a monitor or projector

Supplied with

10X passive probe (1 per analog channel), installation & safety manual and translated front-panel overlay, documentation CD, OpenChoice® desktop software, calibration certificates, power cord, 16-channel logic probe & accessory kit, accessory bag

Mixed Signal Oscilloscopes

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Tektronix
	Bandwidth	100MHz
	Number of Analogue Channels	4
	Number of Digital Channels	16
	Oscilloscope Type	Bench
	Interface	USB
	Oscilloscope Form	Mixed Signal
	Sample Rate Random	1 Gsps
	Screen Size	7in
	Series	MSO2000B
	Record Length	1M points/ch
	Display Type	Colour
	Rise Time	3.5ns
	Length	377mm
	Maximum Vertical Sensitivity	5V/div
	Power Source	Mains
	Safety Category Voltage	300V
	Safety Category Level	CAT II
	Weight	3.6kg
	Minimum Vertical Sensitivity	2mV/div
	Input Impedance	1 (Analogue) MΩ, 101 (Digital) kΩ
	Height	180mm
	Minimum Time Base	4ns/div
	Dimensions	377 x 134 x 180mm
	Input Capacitance	11.5 pF
	Vertical Resolution	1 (Digital) bit, 8 (Analogue) bit
	Maximum Time Base	100s/div
	Safety Category	CAT II 300 V

	Select all
	Brand Tektronix
	Bandwidth 100MHz
	Number of Analogue Channels 4
	Number of Digital Channels 16
	Oscilloscope Type Bench
	Interface USB
	Oscilloscope Form Mixed Signal
	Sample Rate Random 1 Gsps
	Screen Size 7in
	Series MSO2000B
	Record Length 1M points/ch
	Display Type Colour
	Rise Time 3.5ns
	Length 377mm
	Maximum Vertical Sensitivity 5V/div
	Power Source Mains
	Safety Category Voltage 300V
	Safety Category Level CAT II
	Weight 3.6kg
	Minimum Vertical Sensitivity 2mV/div
	Input Impedance 1 (Analogue) MΩ, 101 (Digital) kΩ
	Height 180mm
	Minimum Time Base 4ns/div
	Dimensions 377 x 134 x 180mm
	Input Capacitance 11.5 pF
	Vertical Resolution 1 (Digital) bit, 8 (Analogue) bit
	Maximum Time Base 100s/div
	Safety Category CAT II 300 V
