AXINDUS H05VVF, H05VVF, 50m 4 Core, Grey PVC Power Cable +70°C
- RS Stock No.:
- 910-7790
- Mfr. Part No.:
- VVF4G075G
- Manufacturer:
- AXINDUS

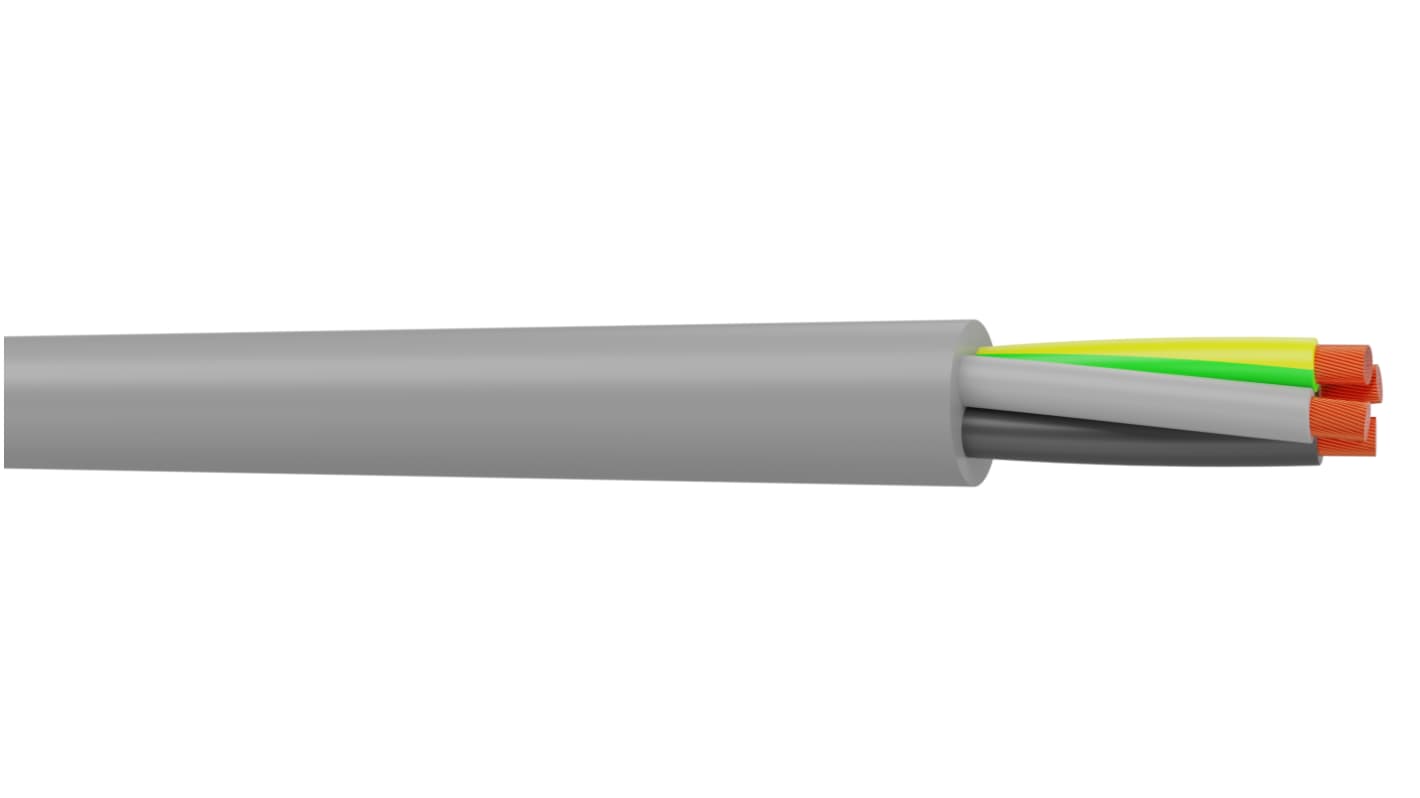

Image representative of range
Subtotal (1 reel of 50 metres)*
€54.19
(exc. VAT)
€66.65
(inc. VAT)
In Stock
- 27 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | €54.19 | €1.084 |
*price indicative
- RS Stock No.:
- 910-7790
- Mfr. Part No.:
- VVF4G075G
- Manufacturer:
- AXINDUS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | AXINDUS | |
Cross Sectional Area | 0.75 mm² | |
Number of Cores | 4 | |
Sheath Colour | Grey | |
Length | 50m | |
Armoured | No | |
Cable Type | H05VVF | |
Current Rating | 6 A | |
Sheath Material | PVC | |
Outer Diameter | 6.6 → 8.3mm | |
CPR Certification | Eca | |
Voltage Rating | 300 V, 500 V | |
European Harmonised Code | H05VV-F | |
Conductor Strand Type | Stranded | |
Series | H05VVF | |
Conductor Material | Copper | |
Maximum Operating Temperature | +70°C | |
American Wire Gauge | 18 AWG | |
Minimum Operating Temperature | -5°C | |
Cable Shape | Multi-Conductor | |
Standards Met | CENELEC HD 21.1, CENELEC HD 21.2, CENELEC HD 21.5, EN 50525-2-11, IEC 60332-1 | |
Fire Behaviour | Flame Retardant | |
Insulation Material | PVC | |
Select all | ||
---|---|---|
Brand AXINDUS | ||
Cross Sectional Area 0.75 mm² | ||
Number of Cores 4 | ||
Sheath Colour Grey | ||
Length 50m | ||
Armoured No | ||
Cable Type H05VVF | ||
Current Rating 6 A | ||
Sheath Material PVC | ||
Outer Diameter 6.6 → 8.3mm | ||
CPR Certification Eca | ||
Voltage Rating 300 V, 500 V | ||
European Harmonised Code H05VV-F | ||
Conductor Strand Type Stranded | ||
Series H05VVF | ||
Conductor Material Copper | ||
Maximum Operating Temperature +70°C | ||
American Wire Gauge 18 AWG | ||
Minimum Operating Temperature -5°C | ||
Cable Shape Multi-Conductor | ||
Standards Met CENELEC HD 21.1, CENELEC HD 21.2, CENELEC HD 21.5, EN 50525-2-11, IEC 60332-1 | ||
Fire Behaviour Flame Retardant | ||
Insulation Material PVC | ||
