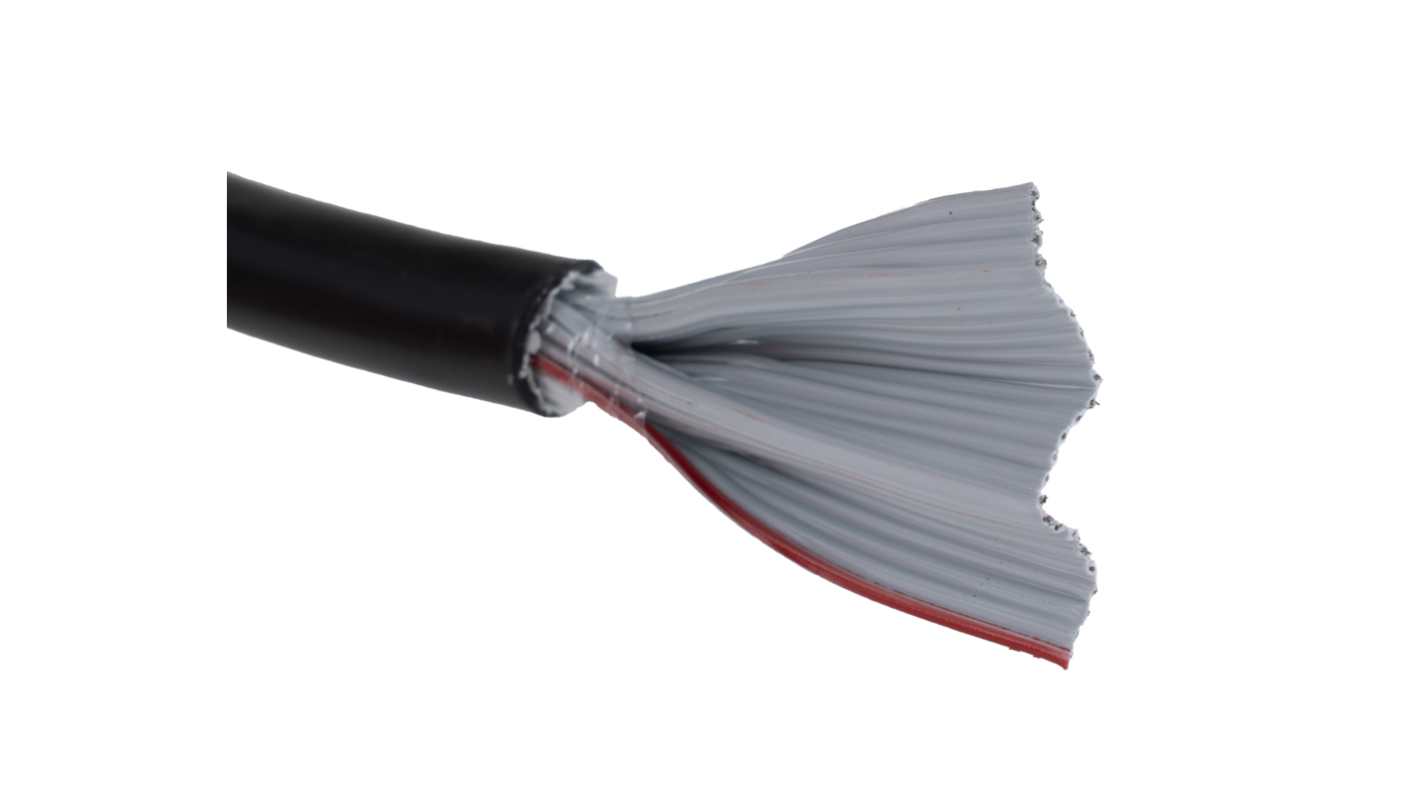

3M 3759 Series Ribbon Cable, Round, 1.27 mm Pitch, 25, 30 m Length
- RS Stock No.:
- 192-4991
- Mfr. Part No.:
- 3759-25
- Manufacturer:
- 3M
Subtotal (1 reel of 30 metres)*
€244.37
(exc. VAT)
€300.58
(inc. VAT)
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €244.37 | €8.146 |
*price indicative
- RS Stock No.:
- 192-4991
- Mfr. Part No.:
- 3759-25
- Manufacturer:
- 3M
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Cable Type | Round | |
| Product Type | Ribbon Cable | |
| Pitch | 1.27mm | |
| Voltage | 300V | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 25 | |
| American Wire Gauge | 28AWG | |
| Jacket Material | Polyvinyl Chloride | |
| Series | 3759 | |
| Conductor Type | Stranded | |
| Cable Length | 30m | |
| Standards/Approvals | AWM 2464, CSA, CSA AWM II A/B FT4, NEC CL2, RoHS Compliant, UL, UL Listed, UL Recognized, UL VW-1 | |
| Hi-Flex | No | |
| Jacket Colour | Black | |
| Size of Strands | 36AWG | |
| Core Strands | 7 x 36AWG | |
| Maximum Operating Temperature | 80°C | |
| Fire Behaviour | FT1 | |
| Minimum Operating Temperature | -20°C | |
| Conductor Material | Tin Plated Copper | |
| Number of Strands | 7 | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Cable Type Round | ||
Product Type Ribbon Cable | ||
Pitch 1.27mm | ||
Voltage 300V | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 25 | ||
American Wire Gauge 28AWG | ||
Jacket Material Polyvinyl Chloride | ||
Series 3759 | ||
Conductor Type Stranded | ||
Cable Length 30m | ||
Standards/Approvals AWM 2464, CSA, CSA AWM II A/B FT4, NEC CL2, RoHS Compliant, UL, UL Listed, UL Recognized, UL VW-1 | ||
Hi-Flex No | ||
Jacket Colour Black | ||
Size of Strands 36AWG | ||
Core Strands 7 x 36AWG | ||
Maximum Operating Temperature 80°C | ||
Fire Behaviour FT1 | ||
Minimum Operating Temperature -20°C | ||
Conductor Material Tin Plated Copper | ||
Number of Strands 7 | ||
3M 3759 Series Ribbon Cable, Round Type, 25 Ways - 3759-25
This ribbon cable is a 25-way interconnect solution designed specifically for reliability and ease of use in electronic applications. With a round construction and a generous length of 30m, it offers flexibility for routing while accommodating multiple connections. This unscreened cable utilises high-quality stranded conductors, making it suitable for various technical environments.
Features & Benefits
• Round design simplifies routing and installation
• 28 AWG wire optimised for mass termination
• Continuous bonded wire enhances ease of fabrication
• Unscreened type ensures easy integration in uncomplicated settings
• Capable of operating between -20 °C to +80 °C for versatile applications
• Compliant with UK regulations for electrical safety
Applications
• Used with IDC connectors for reliable connections
• Ideal for automation systems requiring multiple connections
• Suited for electronics requiring a flammability-rated cable
• Applicable in environments where high-temperature performance is necessary
What is the significance of the cable's stranded conductor design?
The stranded conductor design provides increased flexibility and resilience, making the cable easier to manoeuvre around tight spaces without risking breakage. This is particularly beneficial in installations where the cable may be frequently adjusted or moved.
How does the temperature rating affect performance?
The operating temperature range of -20 °C to +80 °C indicates that the cable can function well across various environments, ensuring consistent performance whether in colder conditions or hotter climates, which is essential for electronic applications.
What benefits do the length and construction of this cable provide in practical use?
The 30 m length allows for extensive reach and adaptability in setups, while the round construction contributes to a streamlined routing process, minimising the risk of tangling or damage during installation. This combination is particularly valuable in complex electronic configurations.
What electrical standards does this cable comply with?
This cable adheres to relevant electrical safety standards, ensuring it provides reliable service in specified applications, thus maintaining both efficiency and safety in use.
Why might unscreened cabling be chosen over screened alternatives?
Unscreened cabling is preferred in simpler setups where electromagnetic interference (EMI) is minimal. This choice often results in cost savings and easier handling while still providing effective connectivity in applications with less stringent requirements.
Approvals
UL listed / UL listed for Canada
