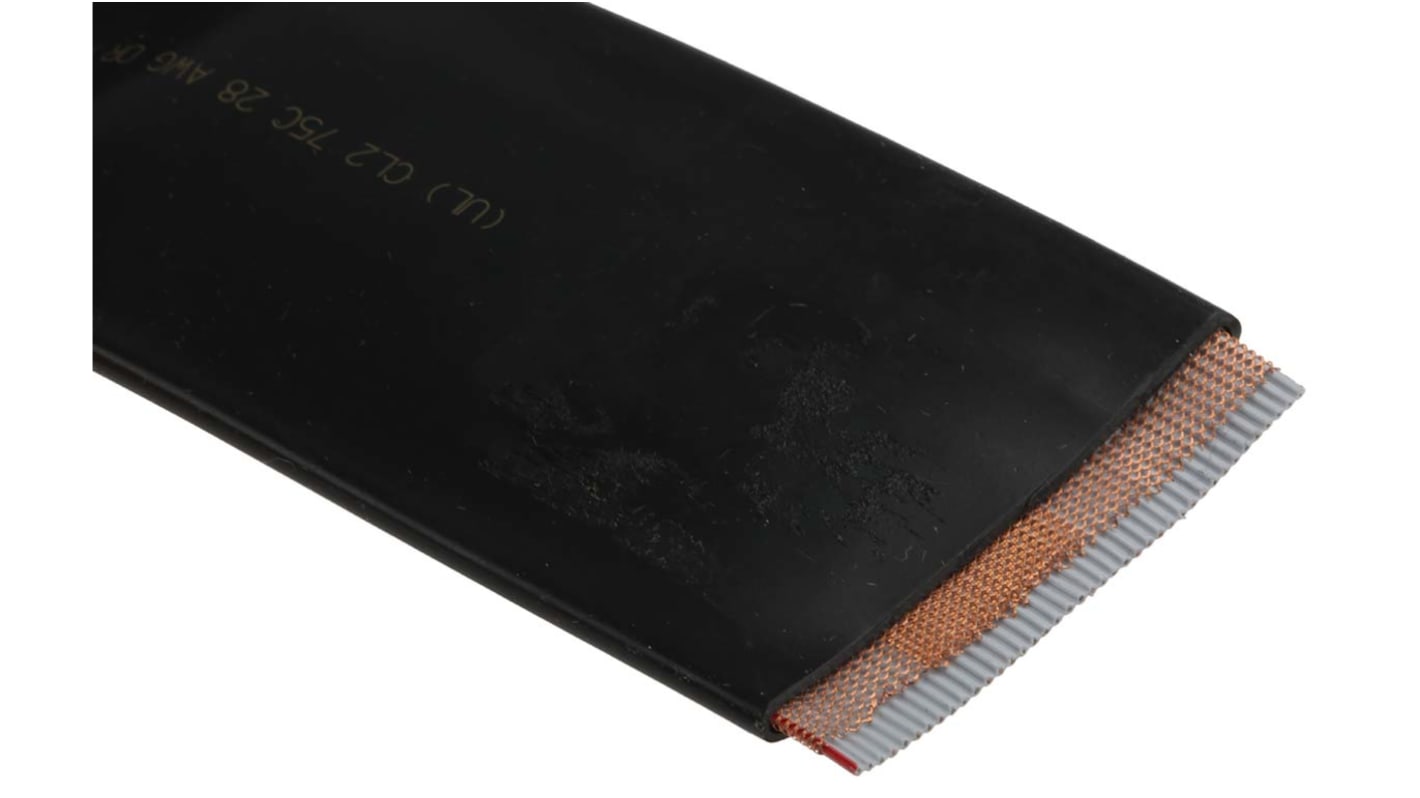

3M 3517 Series Flat Ribbon Cable, 40-Way, 1.27mm Pitch, 5m Length
- RS Stock No.:
- 216-7212
- Mfr. Part No.:
- 3517/40
- Manufacturer:
- 3M
Subtotal (1 reel of 5 metres)*
€191.84
(exc. VAT)
€235.96
(inc. VAT)
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €191.84 | €38.368 |
*price indicative
- RS Stock No.:
- 216-7212
- Mfr. Part No.:
- 3517/40
- Manufacturer:
- 3M
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Ribbon Cable Type | Flat | |
| Pitch | 1.27mm | |
| Terminated/Unterminated | Unterminated | |
| Number of Ways | 40 | |
| Screened/Unscreened | Screened | |
| American Wire Gauge | 28 AWG | |
| Series | 3517 | |
| Length | 5m | |
| Width | 54.1 mm | |
| Minimum Operating Temperature | -20°C | |
| Sheath Colour | Black | |
| Maximum Operating Temperature | +80°C | |
| Number of Strands | 7 | |
| Conductor Strand Type | Stranded | |
| Voltage Rating | 300 V | |
| Capacitance | 70.52pF/m | |
| Core Strands | 7/0.127 mm | |
| Size of Strands | 0.127 mm | |
| Operating Temperature Range | -20 → +80 °C | |
| Characteristic Impedance | 119 Ω | |
Select all | ||
|---|---|---|
Brand 3M | ||
Ribbon Cable Type Flat | ||
Pitch 1.27mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 40 | ||
Screened/Unscreened Screened | ||
American Wire Gauge 28 AWG | ||
Series 3517 | ||
Length 5m | ||
Width 54.1 mm | ||
Minimum Operating Temperature -20°C | ||
Sheath Colour Black | ||
Maximum Operating Temperature +80°C | ||
Number of Strands 7 | ||
Conductor Strand Type Stranded | ||
Voltage Rating 300 V | ||
Capacitance 70.52pF/m | ||
Core Strands 7/0.127 mm | ||
Size of Strands 0.127 mm | ||
Operating Temperature Range -20 → +80 °C | ||
Characteristic Impedance 119 Ω | ||
