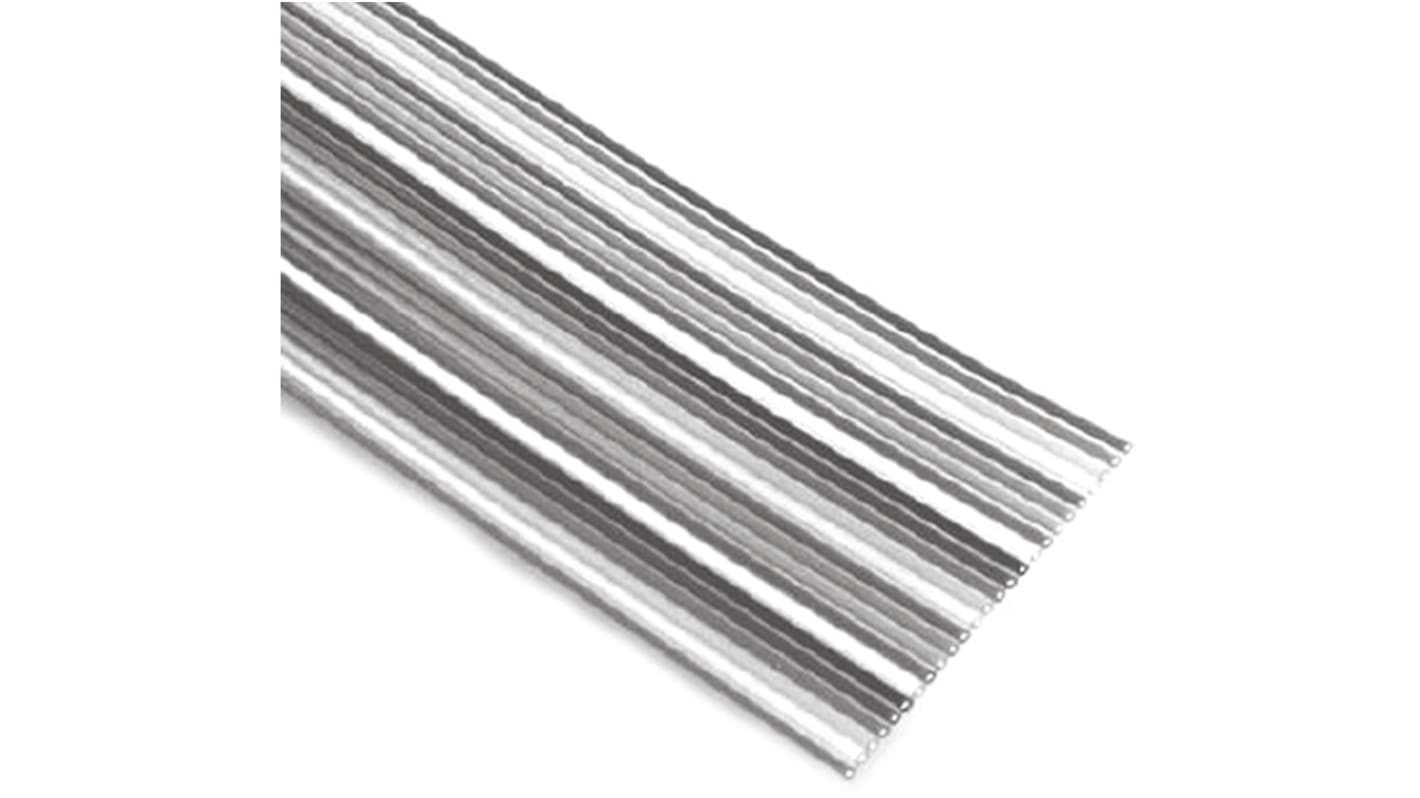

3M 3811 Series Flat Ribbon Cable, 10-Way, 1.27mm Pitch, 30.48m Length, IDC to IDC
- RS Stock No.:
- 815-8223
- Mfr. Part No.:
- 3811/10-100
- Manufacturer:
- 3M
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 815-8223
- Mfr. Part No.:
- 3811/10-100
- Manufacturer:
- 3M
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Ribbon Cable Type | Flat | |
| Connector 1 | IDC | |
| Pitch | 1.27mm | |
| Connector 2 | IDC | |
| Terminated/Unterminated | Unterminated | |
| Connector 1 Gender | Male | |
| Connector 2 Gender | Male | |
| Number of Ways | 10 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 26 AWG | |
| Series | 3811 | |
| Length | 30.48m | |
| Width | 12.7 mm | |
| Voltage Rating | 300 V | |
| Sheath Colour | Multicoloured | |
| Maximum Operating Temperature | +105°C | |
| Conductor Strand Type | Stranded | |
| Hi-Flex | Yes | |
| Minimum Operating Temperature | -20°C | |
| Number of Strands | 7 | |
| Standards Met | RoHS Compliant | |
| Characteristic Impedance | 95 Ω | |
| Operating Temperature Range | -20 → +105 °C | |
| Capacitance | 48.6pF/m | |
| Core Strands | 7/34 | |
| Size of Strands | 34 AWG | |
| Jacketed | Yes | |
Select all | ||
|---|---|---|
Brand 3M | ||
Ribbon Cable Type Flat | ||
Connector 1 IDC | ||
Pitch 1.27mm | ||
Connector 2 IDC | ||
Terminated/Unterminated Unterminated | ||
Connector 1 Gender Male | ||
Connector 2 Gender Male | ||
Number of Ways 10 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 26 AWG | ||
Series 3811 | ||
Length 30.48m | ||
Width 12.7 mm | ||
Voltage Rating 300 V | ||
Sheath Colour Multicoloured | ||
Maximum Operating Temperature +105°C | ||
Conductor Strand Type Stranded | ||
Hi-Flex Yes | ||
Minimum Operating Temperature -20°C | ||
Number of Strands 7 | ||
Standards Met RoHS Compliant | ||
Characteristic Impedance 95 Ω | ||
Operating Temperature Range -20 → +105 °C | ||
Capacitance 48.6pF/m | ||
Core Strands 7/34 | ||
Size of Strands 34 AWG | ||
Jacketed Yes | ||
