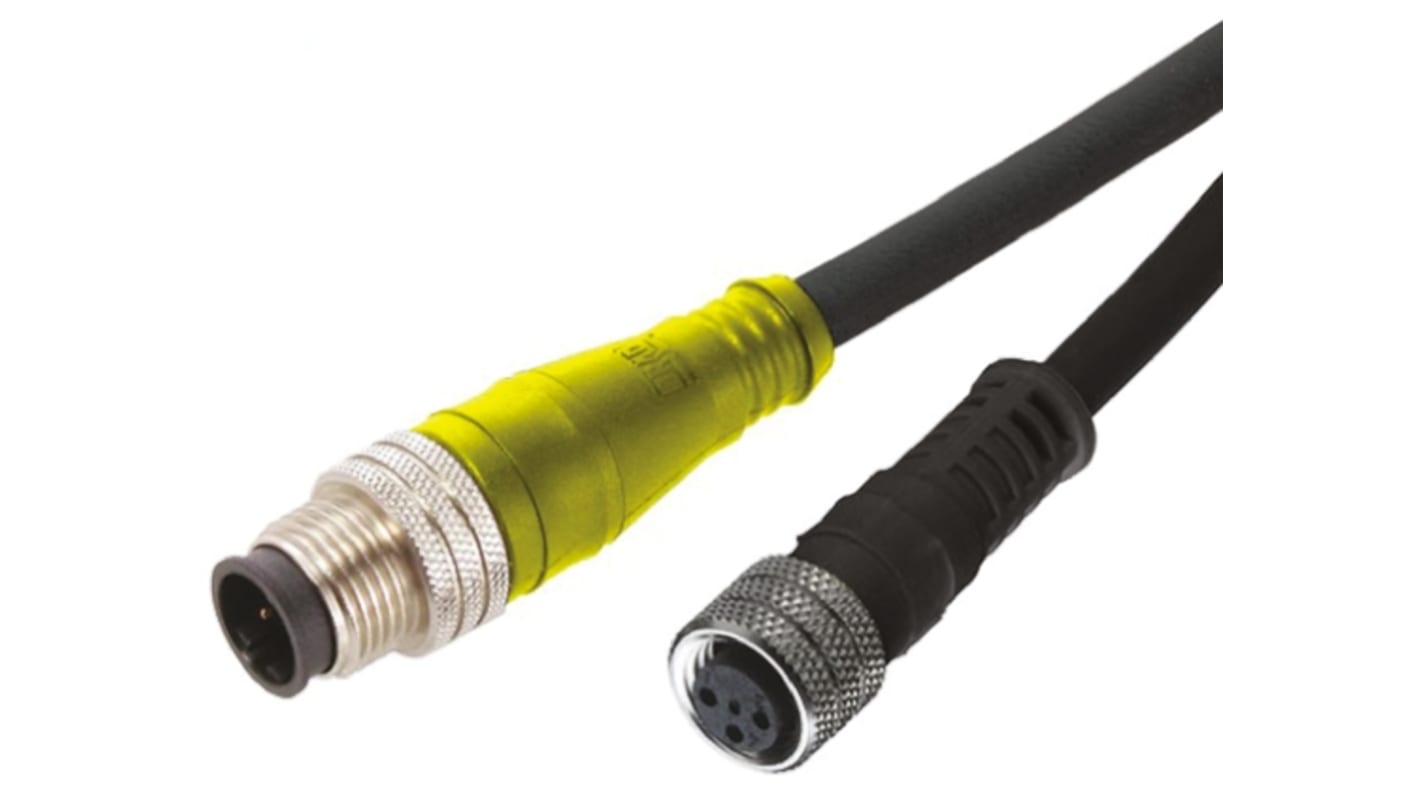

    Brad from Molex Straight Female M8 to Straight Male M12 Sensor Actuator Cable, 3 Core, PUR, 2m

    RS Stock No.:
    751-8974
    Mfr. Part No.:
    1200878415
    Manufacturer:
    Brad from Molex
    Brad from Molex
    View all Sensor & Actuator Cables
    Temporarily out of stock - back order for despatch 17-08-2022, delivery within 2 working days
    Add to Basket
    units

    Added

    Price Each

    €16.82

    (exc. VAT)

    €20.69

    (inc. VAT)

    unitsPer unit
    1 - 4€16.82
    5 - 24€15.99
    25 +€15.10
    RS Stock No.:
    751-8974
    Mfr. Part No.:
    1200878415
    Manufacturer:
    Brad from Molex

    Legislation and Compliance


    Product Details

    Brad® Nano-Change® M8 Female to Micro-Change® M12 Male Cordsets


    Brad® Nano-Change® to Micro-Change® double ended cordsets with a M8 compact design suitable for use with miniature sensors and a larger M12 .


    IEC compliant M8 to M12 cordset assembly with threaded couplers
    M8 compact design for space sensitive applications
    Anti vibration feature
    Cable: Black PUR jacket, 0.25mm2, 65x0.07 conductors



    Brad Harrison - M8


    The Brad Harrison® range of connectors and splitter boxes have been principally designed for use in industrial applications. The Quick Disconnect® principle offers cost savings by enabling quick and simple replacement of either the sensors or cable, helping keep machine down time to a minimum. Designed for use in harsh environments, these connectors are available in re-wireable or pre-wired, factory moulded versions which are robust, compact and waterproof up to IP68. They are typically used for control system products such as proximity, limit and other forms of switches, but are equally at home in test, instrumentation and other electrical/electronic applications where the operating environment is less arduous.


    Specifications

    AttributeValue
    Connector AM8
    Connector BM12
    Sheath ColourBlack
    Connector A GenderFemale
    Connector B GenderMale
    Connector A OrientationStraight
    Connector B OrientationStraight
    Number of Cores3
    CodingA
    ShieldingUnshielded
    Length2m
    Sheath MaterialPUR
    Voltage Rating250 V
    Cross Sectional Area0.25 mm²
    Current Rating4 A
    American Wire Gauge24 AWG
    Connector A Number of Contacts3
