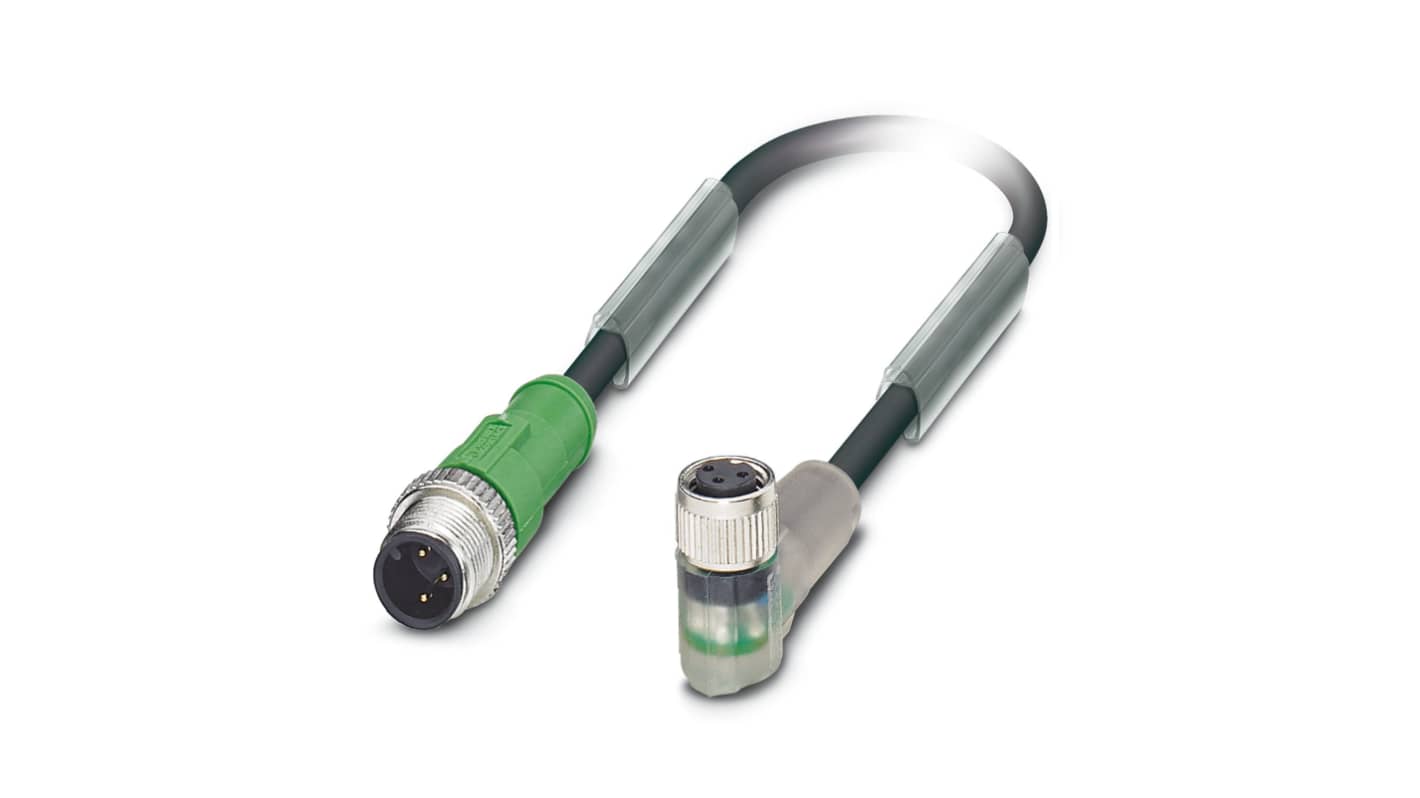

Phoenix Contact Straight Male 3 way M12 to Right Angle Female 3 way M8 Sensor Actuator Cable, 300mm

RS Stock No.:: 858-2800
Mfr. Part No.:: 1694884
Manufacturer:: Phoenix Contact

Phoenix Contact Straight Male 3 way M12 to Right Angle Female 3 way M8 Sensor Actuator Cable, 300mm

Bulk discount available

Price Each

€17.78

(exc. VAT)

€21.87

(inc. VAT)

4 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 4	€17.78
5 - 9	€17.28
10 +	€16.82

RS Stock No.:: 858-2800
Mfr. Part No.:: 1694884
Manufacturer:: Phoenix Contact

Datasheet

Attribute	Value
Series	SAC-3P-M12MS
Number of Cores	3
Cross Sectional Area	0.25 mm²
Length	300mm
Sheath Material	PUR
Sheath Colour	Black/Grey
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	3
Connector 1	M12
Connector 1 Gender	Male
Connector 2	M8
Connector 2 Gender	Female
Connector 2 Orientation	Right Angle
Connector 2 Housing Gender	Female
Connector 2 Number of Contacts	3
Coding	A
Current Rating	4 A
Voltage Rating	24 V
IP Rating	IP65, IP67, IP68
Outer Diameter	4.4mm
Cable Shape	Twisted Pair
Oil Resistant	Yes
Connector 1 Housing Gender	Male
Insulation Material	PP
American Wire Gauge	24 AWG
Conductor Material	Bare Cu litz wires
Minimum Bend Radius	22 mm (Fixed), 44 mm (Movable)

Phoenix Contact Straight Male 3 way M12 to Right Angle Female 3 way M8 Sensor Actuator Cable, 300mm
