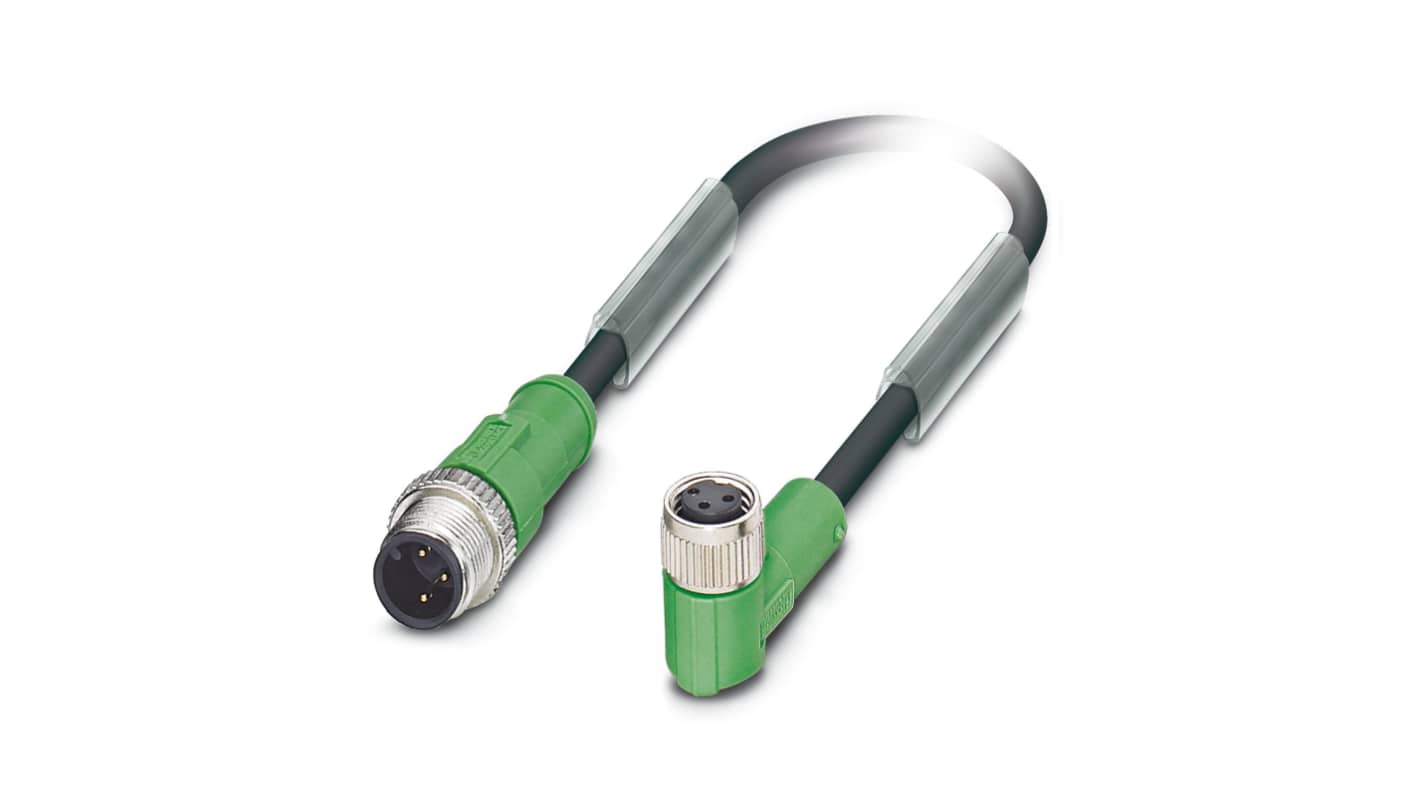

Phoenix Contact Straight Male 5 way M12 to Right Angle Female 3 way M8 Sensor Actuator Cable, 300mm

RS Stock No.:: 858-2806
Mfr. Part No.:: 1668836
Manufacturer:: Phoenix Contact

Phoenix Contact Straight Male 5 way M12 to Right Angle Female 3 way M8 Sensor Actuator Cable, 300mm

Subtotal (1 unit)**

€16.96

(exc. VAT)

€20.86

(inc. VAT)

2 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit
1 +	€16.96

**price indicative

RS Stock No.:: 858-2806
Mfr. Part No.:: 1668836
Manufacturer:: Phoenix Contact

Datasheet 1668836

Attribute	Value
Series	SAC-3P-M12MS
Cross Sectional Area	0.25 mm²
Number of Cores	3
Sheath Colour	Black/Grey
Sheath Material	PUR
Length	300mm
Connector 1 Gender	Male
Connector 1 Number of Contacts	5
Connector 1 Orientation	Straight
Connector 1	M12
Connector 2 Number of Contacts	3
Connector 2 Orientation	Right Angle
Connector 2 Gender	Female
Connector 2	M8
Connector 2 Housing Gender	Female
Coding	A
Current Rating	4 A
Voltage Rating	60 V
IP Rating	IP65, IP67, IP68
Cable Shape	Twisted Pair
Insulation Material	PP
Connector 1 Housing Gender	Male
Conductor Material	Bare Cu litz wires
Minimum Bend Radius	22 mm (Fixed), 44 mm (Movable)
Outer Diameter	4.4mm
American Wire Gauge	24 AWG
Oil Resistant	Yes

Phoenix Contact Straight Male 5 way M12 to Right Angle Female 3 way M8 Sensor Actuator Cable, 300mm
