MOXA 2 Port CANbus RS232 Serial Card

View all Serial Cards

Subtotal (1 unit)*

€563.44

(exc. VAT)

€693.03

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +€563.44

*price indicative

RS Stock No.:
258-9738
Mfr. Part No.:
CB-602I-T w/o Cable
Manufacturer:
MOXA
Find similar products by selecting one or more attributes.
Select all

Brand

MOXA

Bus Type

CANbus

Product Type

Serial Card

Communication Interface

Serial

Number of Ports

2

Connection Port

RS232

Maximum Baud Rate

1000kbps

Standards/Approvals

RoHS, WEEE, IEC 61000-4-2, CE

COO (Country of Origin):
TW

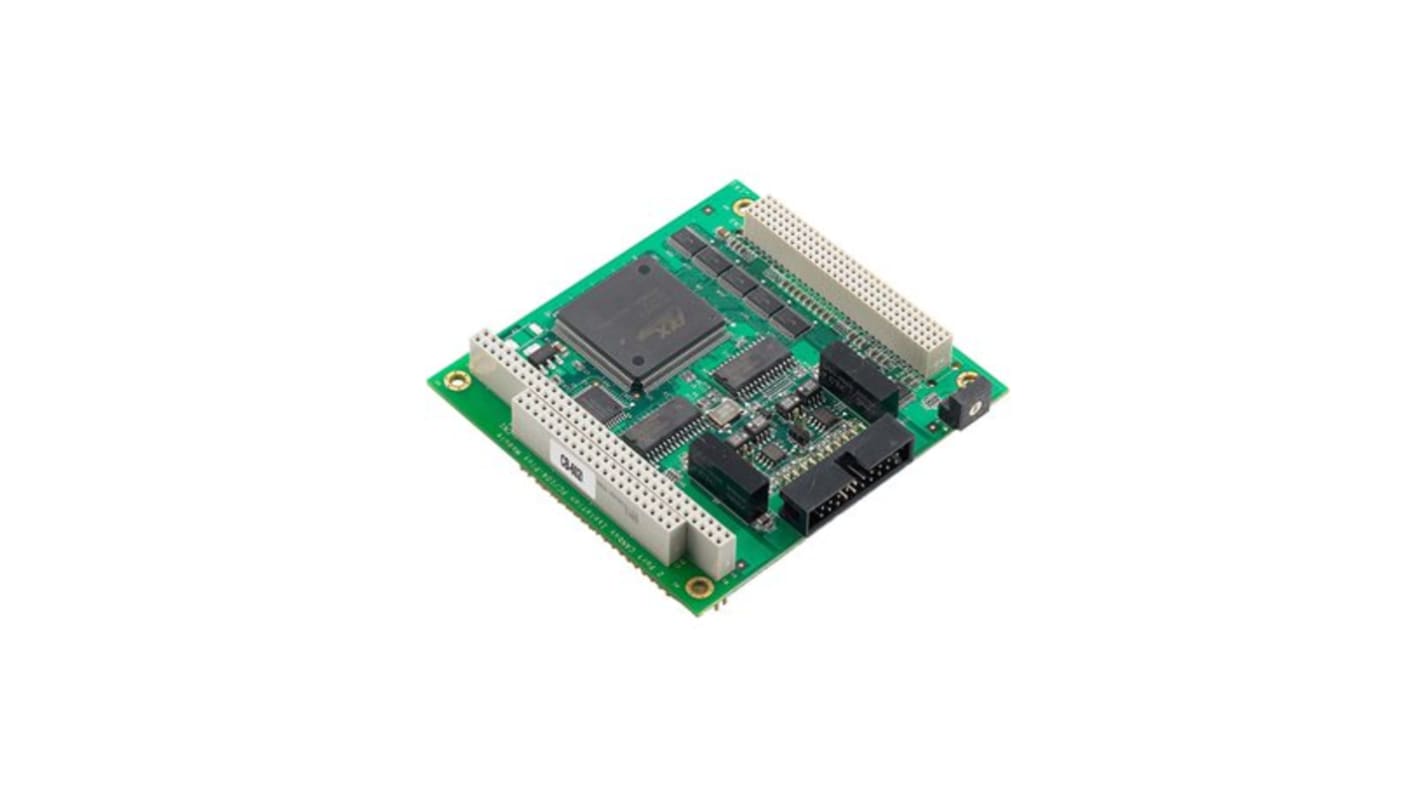

The Moxa Europe CB-602I CAN (Controller Area Network) interface boards support the PC/104-Plus interface. Optional DB9 and DB25 connection cables are available for connecting to CAN interface devices. The CB-602I CAN interface boards use the NXP SJA1000 and PCA82C251 transceiver, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CB-602I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

Supports CAN 2.0A and CAN 2.0B

Two independent CAN communication ports

CAN transfer rate up to 1 Mbps

2 kV electrical isolation

LED for transmit/receive status on each port

Optional 120-ohm terminal resistor for CAN bus network

DLL library and examples in
