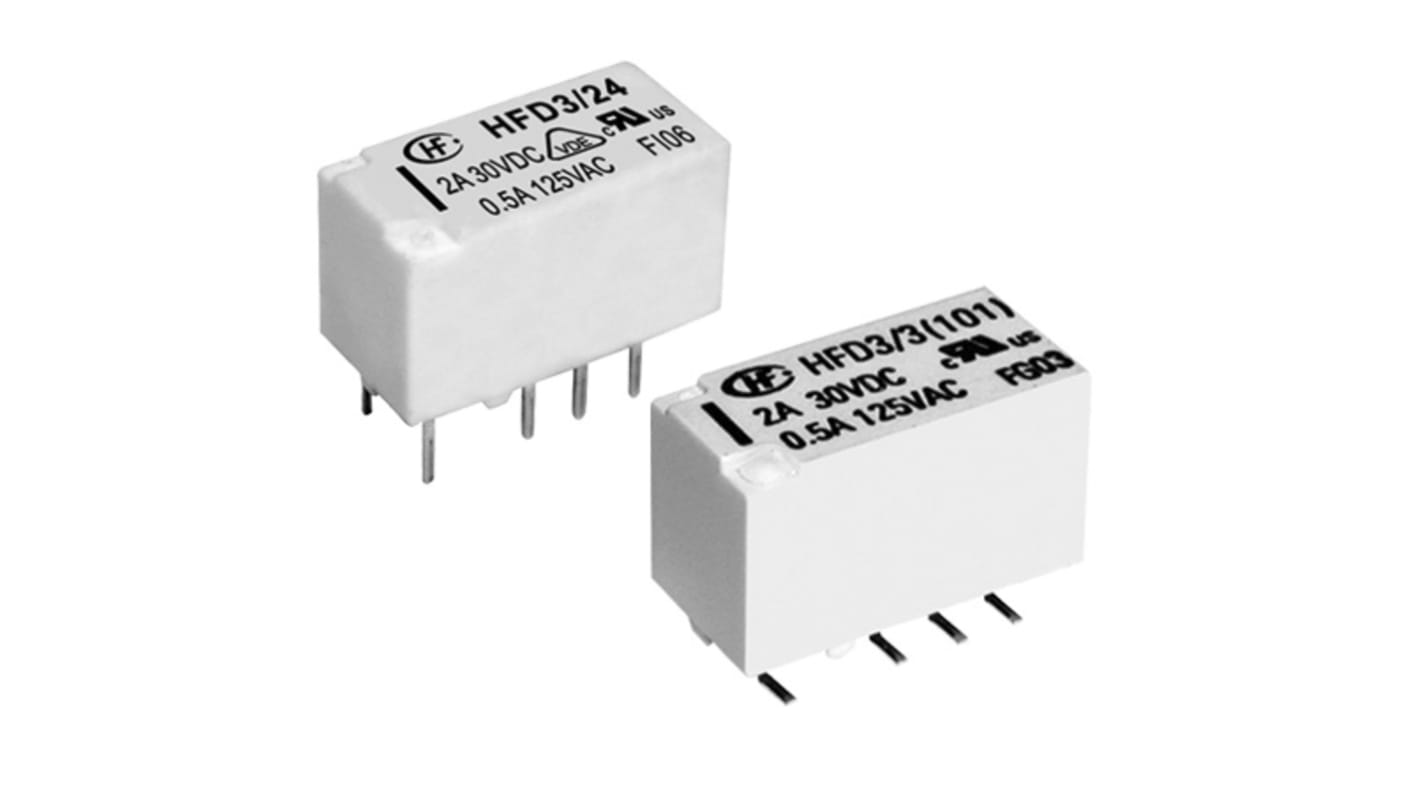

Hongfa Europe GMBH PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT

RS Stock No.:: 176-2711
Mfr. Part No.:: HFD3/005-S
Manufacturer:: Hongfa Europe GMBH

Hongfa Europe GMBH PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT

Price Each (In a Tube of 40)**

€1.43

(exc. VAT)

€1.76

(inc. VAT)

120 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Tube**
40 +	€1.43	€57.20

**price indicative

RS Stock No.:: 176-2711
Mfr. Part No.:: HFD3/005-S
Manufacturer:: Hongfa Europe GMBH

Datasheet

Attribute	Value
Coil Voltage	5V dc
Contact Configuration	DPDT
Mounting Type	PCB Mount
Maximum Switching Current AC	4 A
Maximum Switching Current DC	4 A
Maximum Switching Voltage AC	277V
Maximum Switching Voltage DC	220V
Series	HFD3
Maximum Switching Power DC	90 W
Length	15mm
Latching	No
Depth	7.5mm
Height	9.4mm
Dimensions	15 x 7.5 x 8.5mm
Terminal Type	PCB Pin
Number of Poles	1
Switching Current	2A
Life	1 x 10^8 cycles
Maximum Switching Power AC	62.5VA
Electrical Life	100000 Operations
Coil Resistance	178Ω
Operating Temperature Range	-40 → +85°C
Minimum Operating Temperature	-40°C
Coil Power	140mW
Maximum Operating Temperature	+85°C
Isolation Coil To Contact	1.5kV ac
Relay Switching Classification	Subminiature Signal Relay
Contact Material	Gold Plated
Features	SMT And DIP Types Available, Bifurcated Contacts, Single Side Stable And Latching Type Available

Hongfa Europe GMBH PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT
