RS PRO Solid State Relay, 40 A rms Load, Panel Mount, 280 V ac Load, 32 V dc Control
- RS Stock No.:
- 922-5201
- Manufacturer:
- RS PRO
Price Each**
€21.43
(exc. VAT)
€26.36
(inc. VAT)
Stock check temporarily unavailable - call for stock availability
Units | Per unit |
|---|---|
| 1 + | €21.43 |
**price indicative
- RS Stock No.:
- 922-5201
- Manufacturer:
- RS PRO
- COO (Country of Origin):
- BE

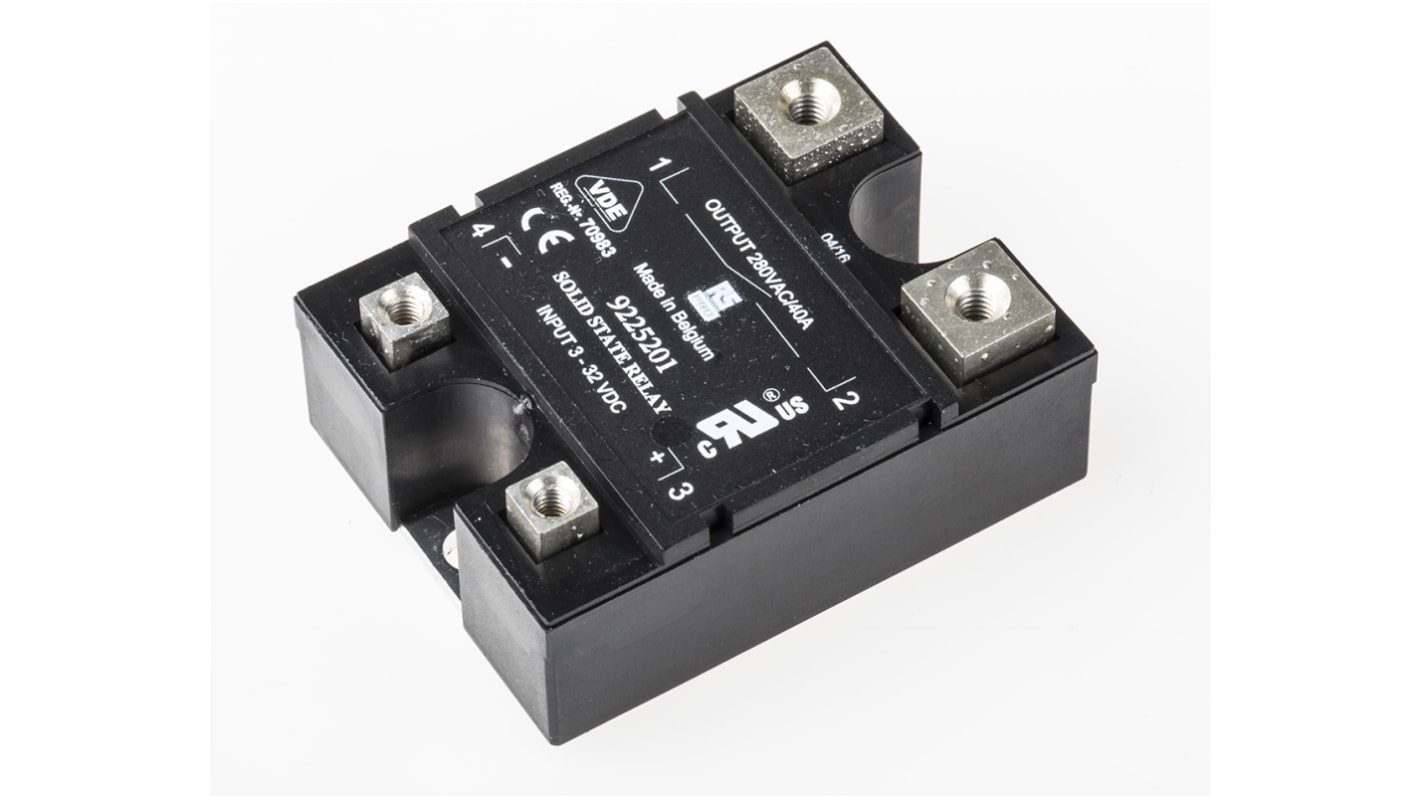

RS PRO 45A Zero Cross SPST Solid State Relay
A robust and compact solid state relay with a Single Pole Single Throw (SPST) configuration designed with zero cross switching to substantially suppress noise generated due to sudden rises in load current.
Unlike other types of relays solid state relays (SSR) contain no moving parts making them more reliable and significantly quieter.
The compact design of the zero cross relay makes it ideal for use in cramped and tight spaces and the robust impact resistant housing protects the contacts against any external damage
Suitable for use in both commercial and domestic and specifically suited for switching resistive loads and ideal for use in appliances such lamps and heaters.
Features and Benefits
- Solid state relay
- SPST configuration
- Zero cross switching
- AC load/ DC input
- Constant current input resistance
- Thyristor output device
- Robust impact resistant housing
- Panel mount
- Control voltage range of 3 to 32 V DC
- Dimensions of 57.2 (length) x 44.5 (depth) x 23 mm (height)
- Load voltage range of 24 to 280 V AC
- Maximum load current of 40 A RMS (root mean square)
- Maximum turn-on time of 11 ms
- Minimum load current of 0.4 A
- Off-state leakage current of 12 mA
- Operating temperature range of -20°C to +80°C
- Screw terminals
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Attribute | Value |
|---|---|
| Maximum Load Current | 40 A rms |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 280 V ac |
| Minimum Load Voltage | 24 V ac |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 3 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 0.4 A |
| Number of Poles | 1 |
| Terminal Type | Screw |
| Contact Configuration | SPST |
| Output Device | Triac |
| Relay Type | AC |
| Maximum Turn On Time | 11ms |
| Load Voltage Range | 24 → 280V ac |
| Dimensions | 57.2 x 44.5 x 23mm |
| Depth | 44.5mm |
| Height | 23mm |
| Off State Leakage Current | 12 mA |
| Length | 57.2mm |
| Operating Temperature Range | -20 → +80°C |
| Special Features | Especially Suited to Switch Resistive Loads as In Heaters and Lamps, Hockey Puck Housing, Panel Mounted |
| Standards Met | CE, cULus Recognized |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
