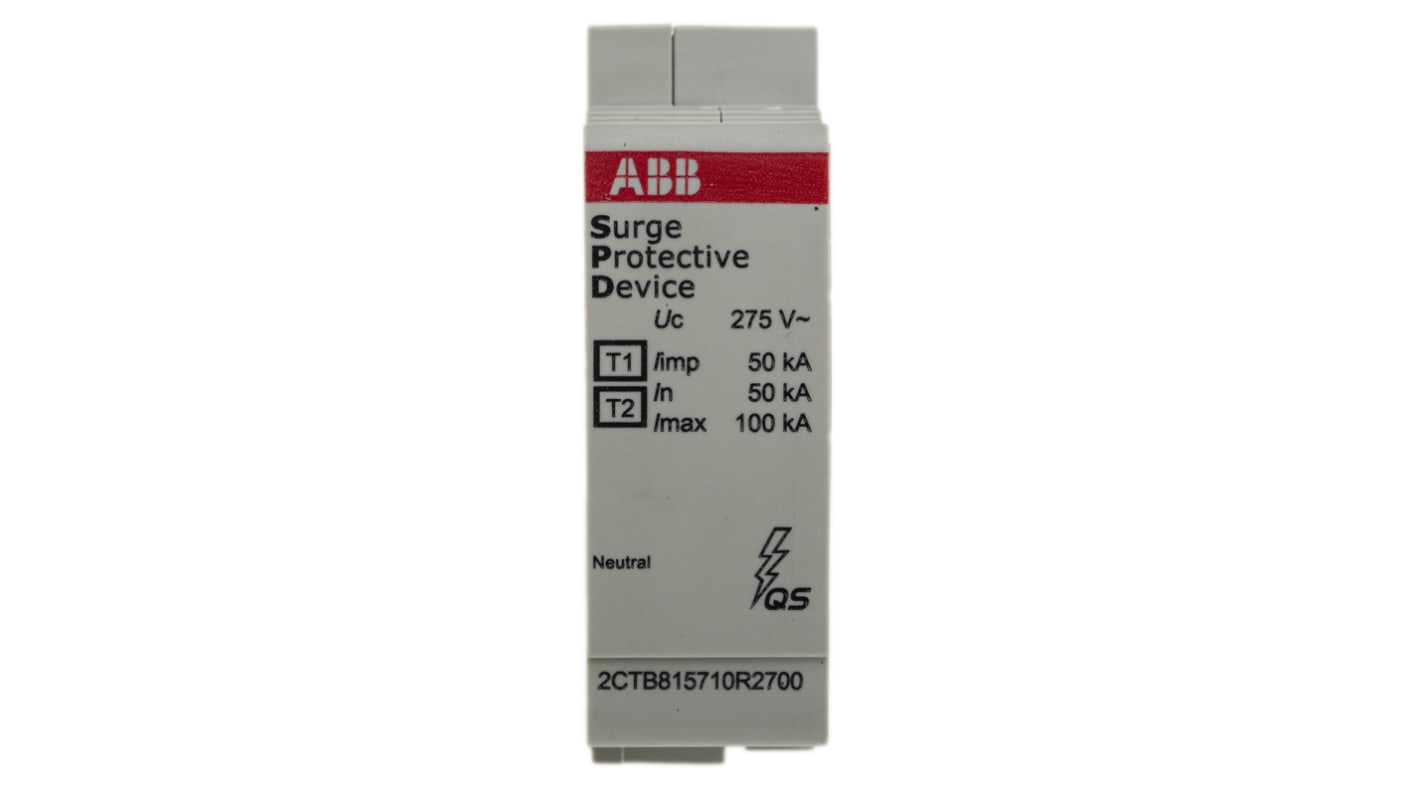

ABB Surge Suppressor Unit

The ABB OVR series surge suppressor unit is a protective device to ensure that electrical equipment is not damaged by a sudden voltage spike. It has an electrical rating of 275V and 80Ka. Type 1 + 2 SPD's have characteristics of type 1 but also type 2. They are capable of discharging a high lightning current (T1 10/350μs) and have a low residual voltage.

Features and Benefits

• Back up protection up to 160A fuse or 125A Mcb
• DIN rail mount
• Has 2 protected lines
• Improved safety
• Operating temperature ranges between -40°C and 80°C
• Patented QuickSafe technology
• Pluggable
• Protection mode is N-PE
• Safety reserve system
• Voltage protection level at N-PE is 1.4kV

Applications

• To protect the systems against transient overvoltage (lightning)

Certifications

• IEC 61643-11 / EN 61643-11

Units	Per unit
1 - 4	€196.68
5 - 9	€190.78
10 +	€159.31

Select all	Attribute	Value
	Brand	ABB
	Suppressor Type	Surge Protection Device
	Maximum Voltage Rating	275 V
	Mounting Type	DIN Rail
	Maximum Surge Current	80kA
	Series	OVR
	Length	17.6mm
	Depth	67mm
	Height	57mm
	Dimensions	17.6 x 67 x 57mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+80°C

	Select all
	Brand ABB
	Suppressor Type Surge Protection Device
	Maximum Voltage Rating 275 V
	Mounting Type DIN Rail
	Maximum Surge Current 80kA
	Series OVR
	Length 17.6mm
	Depth 67mm
	Height 57mm
	Dimensions 17.6 x 67 x 57mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +80°C

ABB, OVR Surge Protection Device 275 V Maximum Voltage Rating 80kA Maximum Surge Current Surge Protection Device
