TC74 is a serially accessible digital temperature sensor particularly suited for low cost and small form-factor applications. Temperature data is converted from the on-board thermal sensing element and made available as an 8-bit digital word. Communication with the TC74 is accomplished via a simple 2-wire SMBus/I2C™-compatible serial port. This bus also can be used to implement multi-drop/multi-zone monitoring. The SHDN bit in the CONFIG register can be used to activate the low-power Standby mode. Temperature resolution is 1°C. Conversion rate is a nominal 8 samples/sec.

Digital Temperature Sensing in SOT-23-5 Package
Outputs Temperature as an 8-Bit Digital Word
Simple Serial Port Interface
Solid State Temperature Sensing:
±2°C Accuracy from +25°C to +85°C
±3°C Accuracy from 0°C to +125°C
Supply Voltage of 2.7V to 5.5V
Low Power:
200 μA (typ.) Operating Current
5 μA (typ.) Standby Mode Current

Units	Per unit	Per Tube*
50 - 50	€1.476	€73.80
100 +	€1.337	€66.85

Select all	Attribute	Value
	Brand	Microchip
	Sensor Function	Temperature
	Output Type	Digital
	Interface Type	Serial-I2C, SMBus
	Accuracy	±3°C
	Mounting Type	Through Hole
	Pin Count	5
	Minimum Operating Temperature	-40 °C
	Operating Temperature Range	-40 to +125 °C
	Maximum Operating Temperature	+125 °C
	Minimum Operating Supply Voltage	2.7 V
	Maximum Operating Supply Voltage	5.5 V
	Package Type	TO-220
	Length	10.54mm
	Series	TC74
	Height	15.57mm
	Width	4.7mm
	Dimensions	10.54 x 4.7 x 15.57mm
	Resolution	±1 °C

	Select all
	Brand Microchip
	Sensor Function Temperature
	Output Type Digital
	Interface Type Serial-I2C, SMBus
	Accuracy ±3°C
	Mounting Type Through Hole
	Pin Count 5
	Minimum Operating Temperature -40 °C
	Operating Temperature Range -40 to +125 °C
	Maximum Operating Temperature +125 °C
	Minimum Operating Supply Voltage 2.7 V
	Maximum Operating Supply Voltage 5.5 V
	Package Type TO-220
	Length 10.54mm
	Series TC74
	Height 15.57mm
	Width 4.7mm
	Dimensions 10.54 x 4.7 x 15.57mm
	Resolution ±1 °C

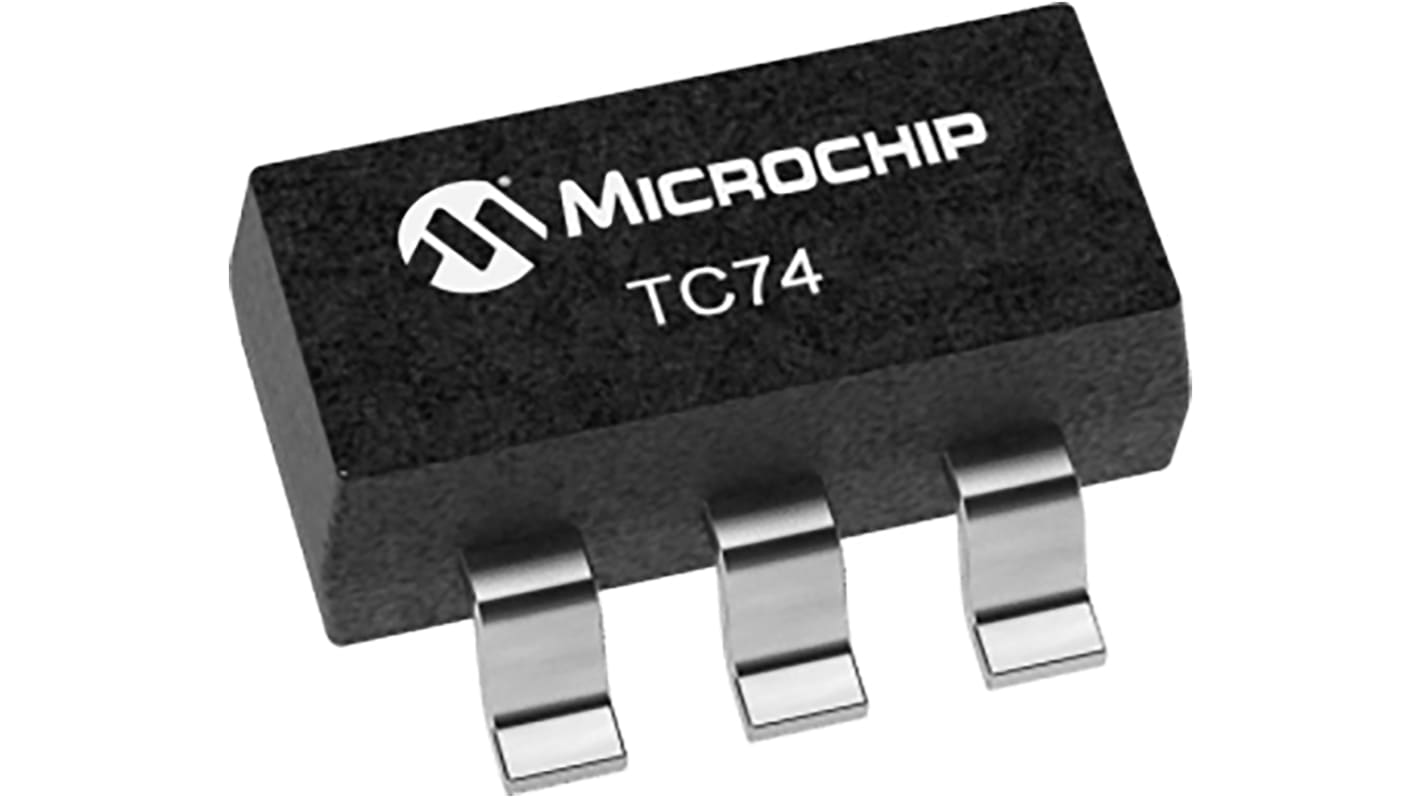

Microchip TC74 Series Temperature Sensor, Digital Output, Through Hole Mount, Serial-I2C, SMBus, ±3°C, 5 Pins
