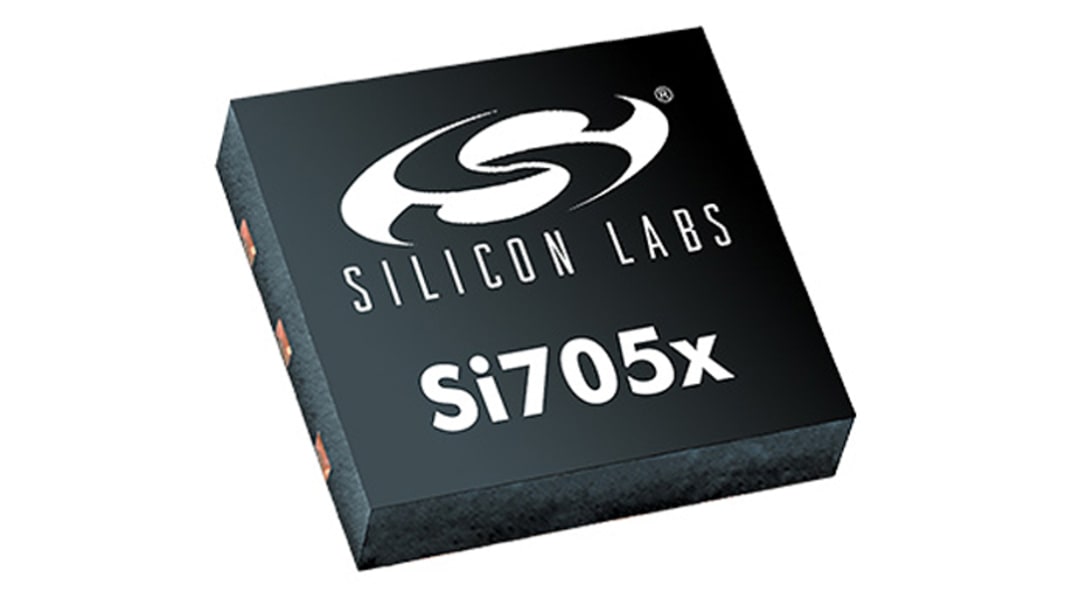

Si705x Digital Temperature Sensors

Si705x Digital Temperature Sensors are composed of a band-gap temperature sensor and a 14-bit ADC. They have been developed with power efficiency in mind featuring minimal self-heating, longer coin-cell battery lifespan and accuracy stability across all temperature and voltage ranges. They are also cost-effective, requiring no calibration and use battery power.
The Si705x sensors are ideal for HVAC, white goods, computer equipment, asset tracking, cold chain storage, industrial control and medical equipment applications.

Features;
I²C serial interface
DFN package
1.9 V power supply voltage
-40°C to +125°C temperature range

Temperature & Humidity Sensors, Silicon Laboratories

Select all	Attribute	Value
	Brand	Silicon Labs
	Sensor Function	Temperature
	Output Type	Digital
	Interface Type	Serial-I2C
	Accuracy	±0.3°C
	Mounting Type	Surface Mount
	Pin Count	6
	Minimum Operating Temperature	-40 °C
	Operating Temperature Range	-40 to +125 °C
	Maximum Operating Temperature	+125 °C
	Minimum Operating Supply Voltage	1.9 V
	Maximum Operating Supply Voltage	3.6 V
	Package Type	DFN
	Length	3mm
	Height	0.8mm
	Width	3mm
	Resolution	14 bit
	Dimensions	3 x 3 x 0.8mm

	Select all
	Brand Silicon Labs
	Sensor Function Temperature
	Output Type Digital
	Interface Type Serial-I2C
	Accuracy ±0.3°C
	Mounting Type Surface Mount
	Pin Count 6
	Minimum Operating Temperature -40 °C
	Operating Temperature Range -40 to +125 °C
	Maximum Operating Temperature +125 °C
	Minimum Operating Supply Voltage 1.9 V
	Maximum Operating Supply Voltage 3.6 V
	Package Type DFN
	Length 3mm
	Height 0.8mm
	Width 3mm
	Resolution 14 bit
	Dimensions 3 x 3 x 0.8mm

Silicon Labs Temperature Sensor, Digital Output, Surface Mount, Serial-I2C, ±0.3°C, 6 Pins

Si705x Digital Temperature Sensors
