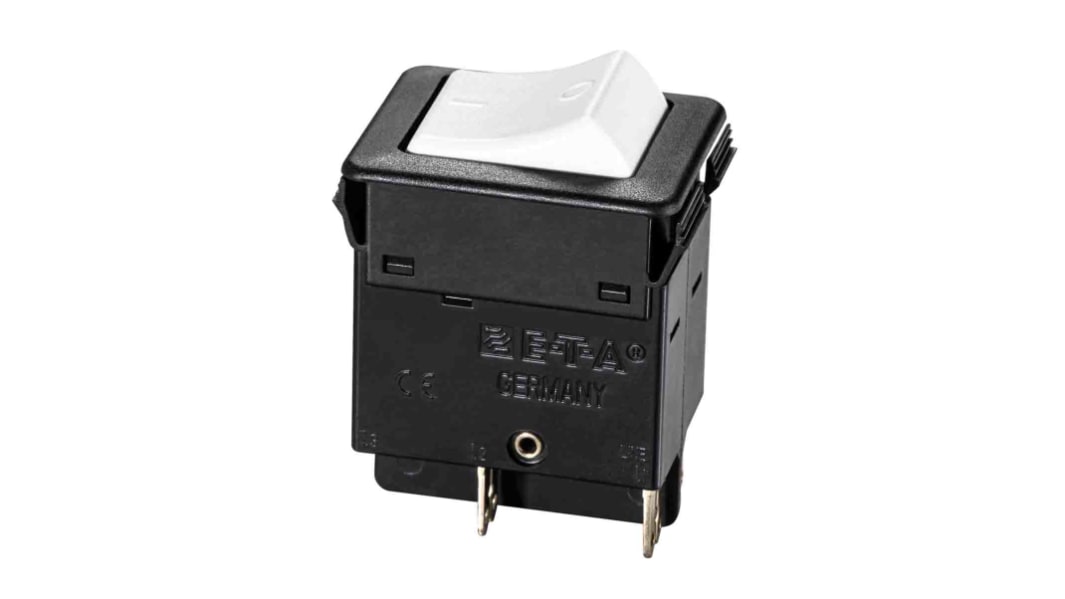

ETA 3130 Thermal Circuit Breaker - 2-Pole, Snap-in, 15 A Current Rating, 25 A, 240 V ac, 28 V dc

Bulk discount available

Subtotal (1 unit)*

€35.98

(exc. VAT)

€44.26

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

	Select all
	Brand ETA
	Product Type Thermal Circuit Breaker
	Current Rating 15 A
	Series 3130
	Number of Poles 2
	Width 29.5 mm
	Mount Type Snap-in
	Mount Hole Size 26.1 x 34 mm
	Terminal Type Screw
	Tripping Mechanism Thermal
	Reset Actuator Type Rocker
	Tripping Characteristics Type R
	Rated AC Voltage 240 V ac
	Height 78.5mm
	Standards/Approvals RoHS, CE
	Rated DC Voltage 28 V dc
	Breaking Capacity 25A
	Break Time Medium

Rocker switch and thermal circuit breaker (CBE) combined

Trip-free mechanism

Snap-in panel mounting

Panel thickness 1 to 2.5 mm

Blade terminals DIN 46244-C-Ms-S

Overload protection on all poles (multi-pole)

Typical life 30000 operations at nominal current rating

Main applications for motors, white goods industries, portable hand tools and transformers

IEC Classification S/TO

UL; CSA; VDE (EN 60934).
