STMicroelectronics TN4050HP-12GY-TR, Silicon Controlled Rectifier 1200V, 25A 40A

The STMicroelectronics product is an automotive grade SCR thyristor designed for applications such as automotive on board and stationary battery chargers. This SCR Thyristor, rated for a 40 A RMS power switching, offers superior performances in peak voltage robustness up to 400 V sine wave pulse. Its key features allow the design of functions such as a 56 A RMS AC switch and a 50 A AC DC controlled rectifier bridge.

AEC-Q101 qualified
High junction temperature of 150 degree C
Nominal on state RMS current of 40 A RMS
High EFT noise immunity of 1000 V per μs
Max gate triggering current of 50 mA

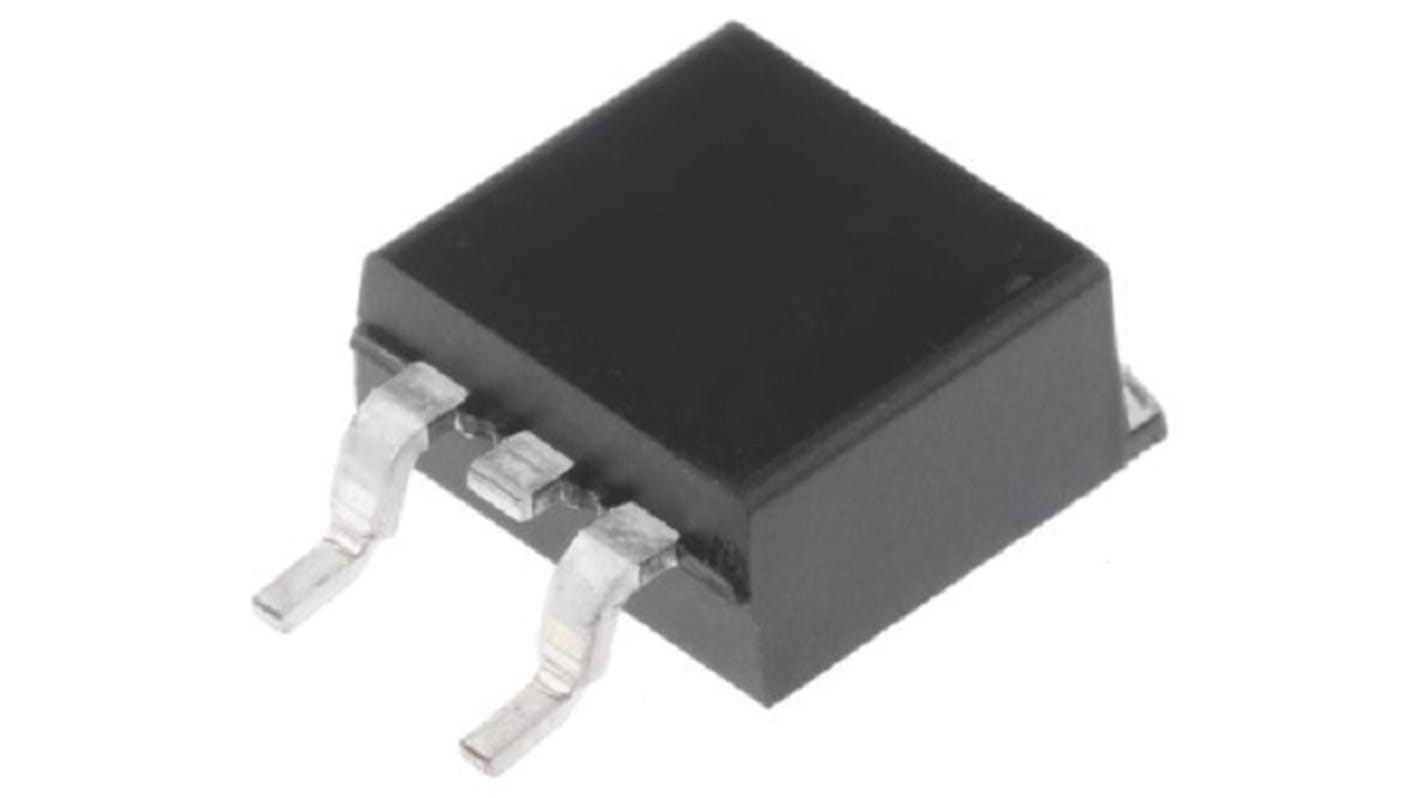

Available in D2PAK package
