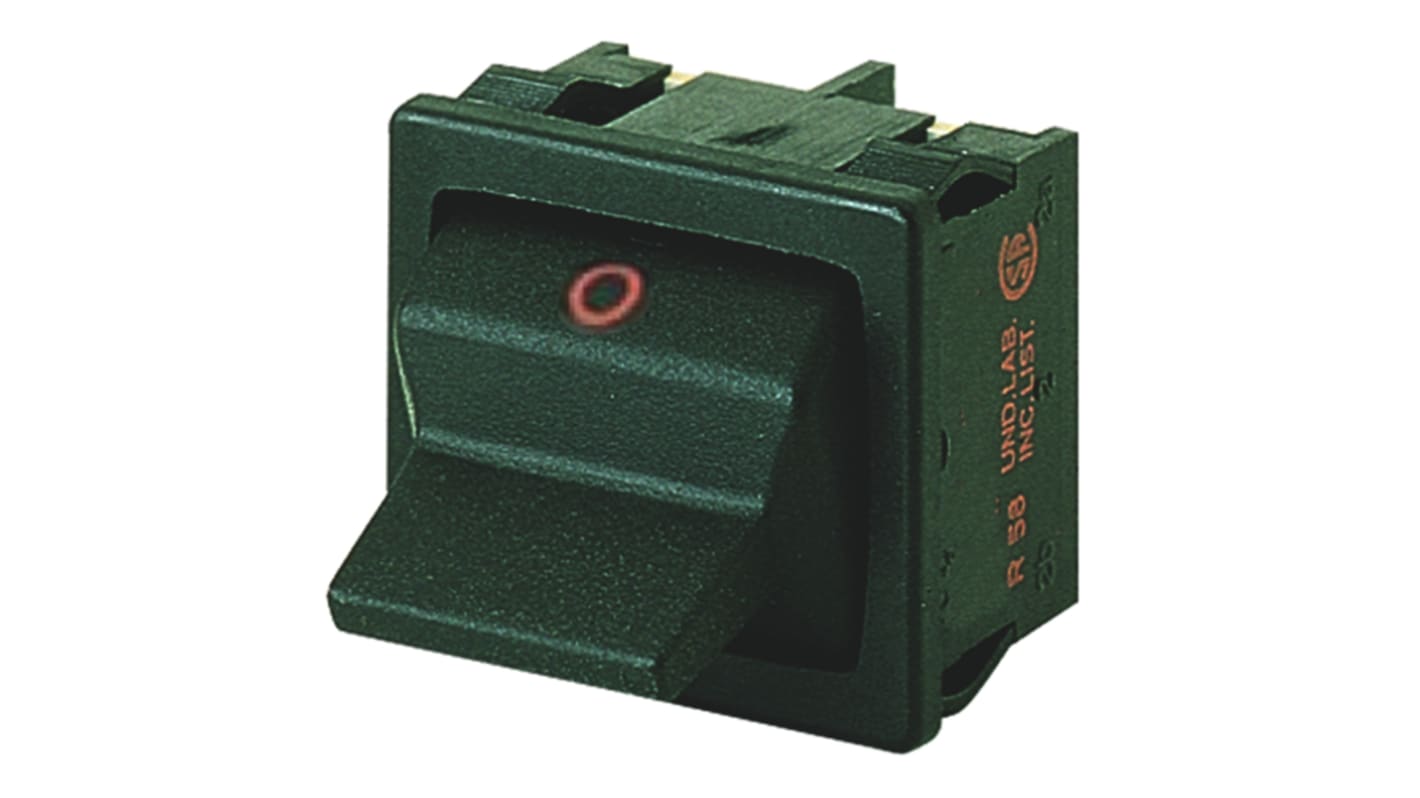

Marquardt Toggle Switch, Panel Mount, On-Off, DPST, Tab Terminal

RS Stock No.:: 823-5106
Mfr. Part No.:: 01812.1102-02
Manufacturer:: Marquardt

Marquardt Toggle Switch, Panel Mount, On-Off, DPST, Tab Terminal

Bulk discount available

Price Each**

€4.96

(exc. VAT)

€6.10

(inc. VAT)

128 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 9	€4.96
10 - 24	€4.72
25 - 49	€4.43
50 +	€4.06

**price indicative

RS Stock No.:: 823-5106
Mfr. Part No.:: 01812.1102-02
Manufacturer:: Marquardt

Datasheet
Datasheet

Attribute	Value
Contact Configuration	DPST
Switch Operation	On-Off
Contact Current Rating	10 A @ 250 V ac
Mounting Type	Panel Mount
Terminal Type	Tab
IP Rating	IP40
Panel Cut Out Width	18.6mm
Panel Cut Out Height	18mm
Actuator Length	14mm
Actuator Material	PA
Contact Material	Ag
Panel Cut Out Size	18 x 18.6mm
Contact Resistance	<100mΩ
Maximum Operating Temperature	+100 (Terminal Side) °C, +55 (Actuating Side) °C
Mechanical Life	100000Cycles
Operating Temperature Range	-20 → +100 (Terminal Side) °C, -20 → +55 (Actuating Side) °C
Minimum Operating Temperature	-20 (Terminal Side, Actuating Side)°C

Marquardt Toggle Switch, Panel Mount, On-Off, DPST, Tab Terminal

Marquardt 1810 Series Toggle Switches
