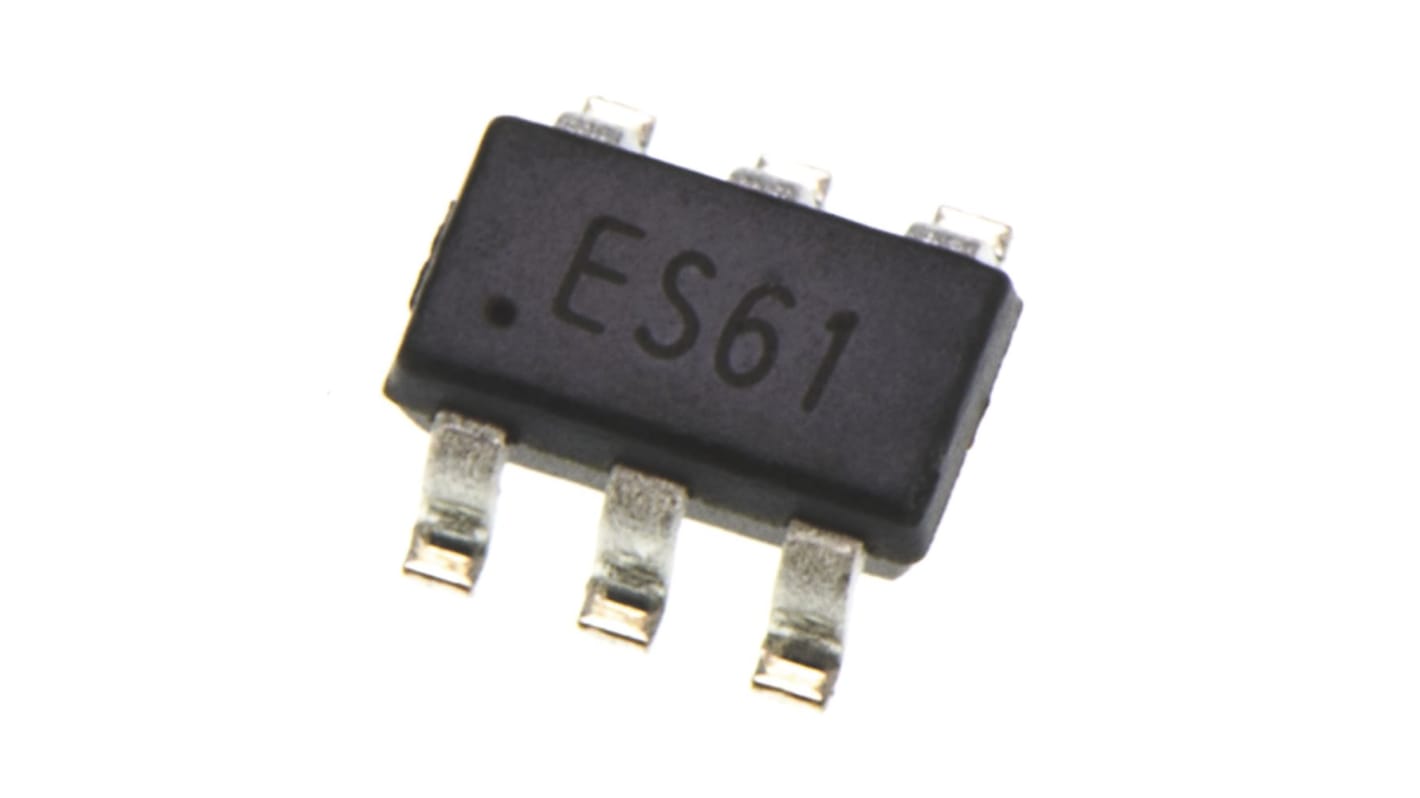

STMicroelectronics ESDA6V1SC6, Quad-Element Uni-Directional TVS Diode, 400W, 6-Pin SOT-23

RS Stock No.:: 102-6171
Mfr. Part No.:: ESDA6V1SC6
Manufacturer:: STMicroelectronics

STMicroelectronics ESDA6V1SC6, Quad-Element Uni-Directional TVS Diode, 400W, 6-Pin SOT-23

Subtotal (1 reel of 3000 units)**

€378.00

(exc. VAT)

€465.00

(inc. VAT)

Temporarily out of stock - back order for despatch 24-04-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Reel**
3000 +	€0.126	€378.00

**price indicative

RS Stock No.:: 102-6171
Mfr. Part No.:: ESDA6V1SC6
Manufacturer:: STMicroelectronics

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Diode Configuration	Common Anode
Direction Type	Uni-Directional
Minimum Breakdown Voltage	6.1V
Mounting Type	Surface Mount
Package Type	SOT-23
Maximum Reverse Stand-off Voltage	5.2V
Pin Count	6
Peak Pulse Power Dissipation	400W
ESD Protection	Yes
Number of Elements per Chip	4
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Dimensions	3.05 x 1.75 x 1.3mm
Maximum Reverse Leakage Current	20µA
Length	3.05mm
Test Current	1mA
Height	1.3mm
Width	1.75mm

STMicroelectronics ESDA6V1SC6, Quad-Element Uni-Directional TVS Diode, 400W, 6-Pin SOT-23

Transil™ Array Unidirectional for ESD Protection, ESDA Series, STMicroelectronics
