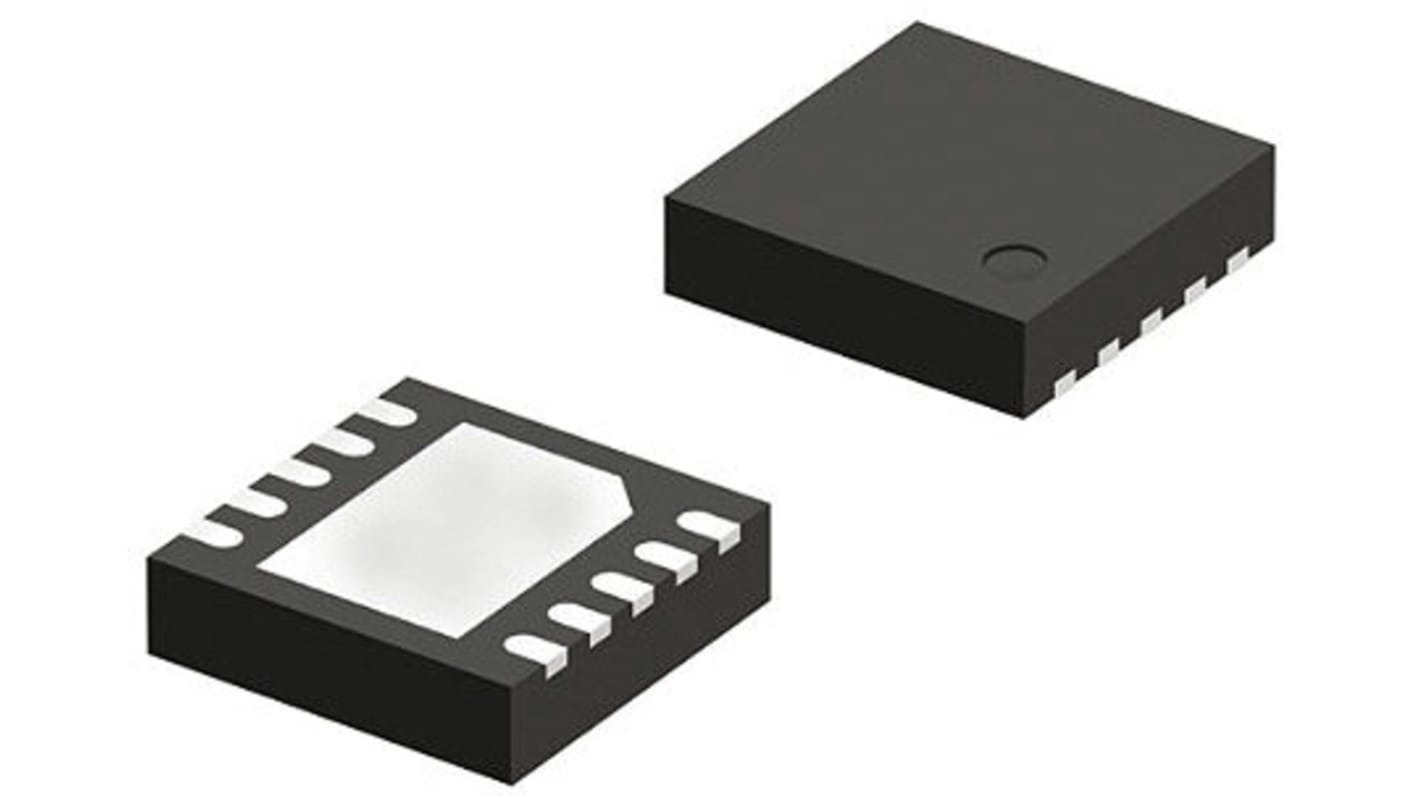

onsemi ESD7504MUTAG, Uni-Directional TVS Diode, 10-Pin U-DFN2510
- RS Stock No.:
- 162-9957
- Mfr. Part No.:
- ESD7504MUTAG
- Manufacturer:
- onsemi
Subtotal (1 reel of 3000 units)**
€270.00
(exc. VAT)
€330.00
(inc. VAT)
Temporarily out of stock - back order for despatch 29-06-2025, delivery within 2 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
Units | Per unit | Per Reel** |
|---|---|---|
| 3000 + | €0.09 | €270.00 |
**price indicative
- RS Stock No.:
- 162-9957
- Mfr. Part No.:
- ESD7504MUTAG
- Manufacturer:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Diode Configuration | Common Anode | |
| Direction Type | Uni-Directional | |
| Maximum Clamping Voltage | 13.7V | |
| Minimum Breakdown Voltage | 4V | |
| Mounting Type | Surface Mount | |
| Package Type | U-DFN2510 | |
| Pin Count | 10 | |
| Maximum Peak Pulse Current | 8A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -55 °C | |
| Dimensions | 2.5 x 1 x 0.5mm | |
| Maximum Operating Temperature | +125 °C | |
| Height | 0.5mm | |
| Working Voltage | 3.3V | |
| Maximum Reverse Leakage Current | 1µA | |
| Capacitance | 0.55pF | |
| Length | 2.5mm | |
| Test Current | 1mA | |
| Width | 1mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Diode Configuration Common Anode | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage 13.7V | ||
Minimum Breakdown Voltage 4V | ||
Mounting Type Surface Mount | ||
Package Type U-DFN2510 | ||
Pin Count 10 | ||
Maximum Peak Pulse Current 8A | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -55 °C | ||
Dimensions 2.5 x 1 x 0.5mm | ||
Maximum Operating Temperature +125 °C | ||
Height 0.5mm | ||
Working Voltage 3.3V | ||
Maximum Reverse Leakage Current 1µA | ||
Capacitance 0.55pF | ||
Length 2.5mm | ||
Test Current 1mA | ||
Width 1mm | ||
