Units	Per unit	Per Pack**
50 - 50	€0.233	€11.65
100 - 450	€0.138	€6.90
500 - 950	€0.135	€6.75
1000 - 1950	€0.131	€6.55
2000 +	€0.128	€6.40

Select all	Attribute	Value
	Brand	STMicroelectronics
	Direction Type	Uni-Directional
	Diode Configuration	Array
	Maximum Clamping Voltage	26.5V
	Minimum Breakdown Voltage	15.6V
	Mounting Type	Surface Mount
	Package Type	QFN
	Maximum Reverse Stand-off Voltage	15V
	Pin Count	2
	Peak Pulse Power Dissipation	1200W
	Maximum Peak Pulse Current	46A
	ESD Protection	Yes
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+150 °C
	Dimensions	1.6 x 1 x 0.55mm
	Length	1.6mm
	Test Current	1mA
	Maximum Reverse Leakage Current	50nA
	Width	1mm
	Height	0.55mm

	Select all
	Brand STMicroelectronics
	Direction Type Uni-Directional
	Diode Configuration Array
	Maximum Clamping Voltage 26.5V
	Minimum Breakdown Voltage 15.6V
	Mounting Type Surface Mount
	Package Type QFN
	Maximum Reverse Stand-off Voltage 15V
	Pin Count 2
	Peak Pulse Power Dissipation 1200W
	Maximum Peak Pulse Current 46A
	ESD Protection Yes
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +150 °C
	Dimensions 1.6 x 1 x 0.55mm
	Length 1.6mm
	Test Current 1mA
	Maximum Reverse Leakage Current 50nA
	Width 1mm
	Height 0.55mm

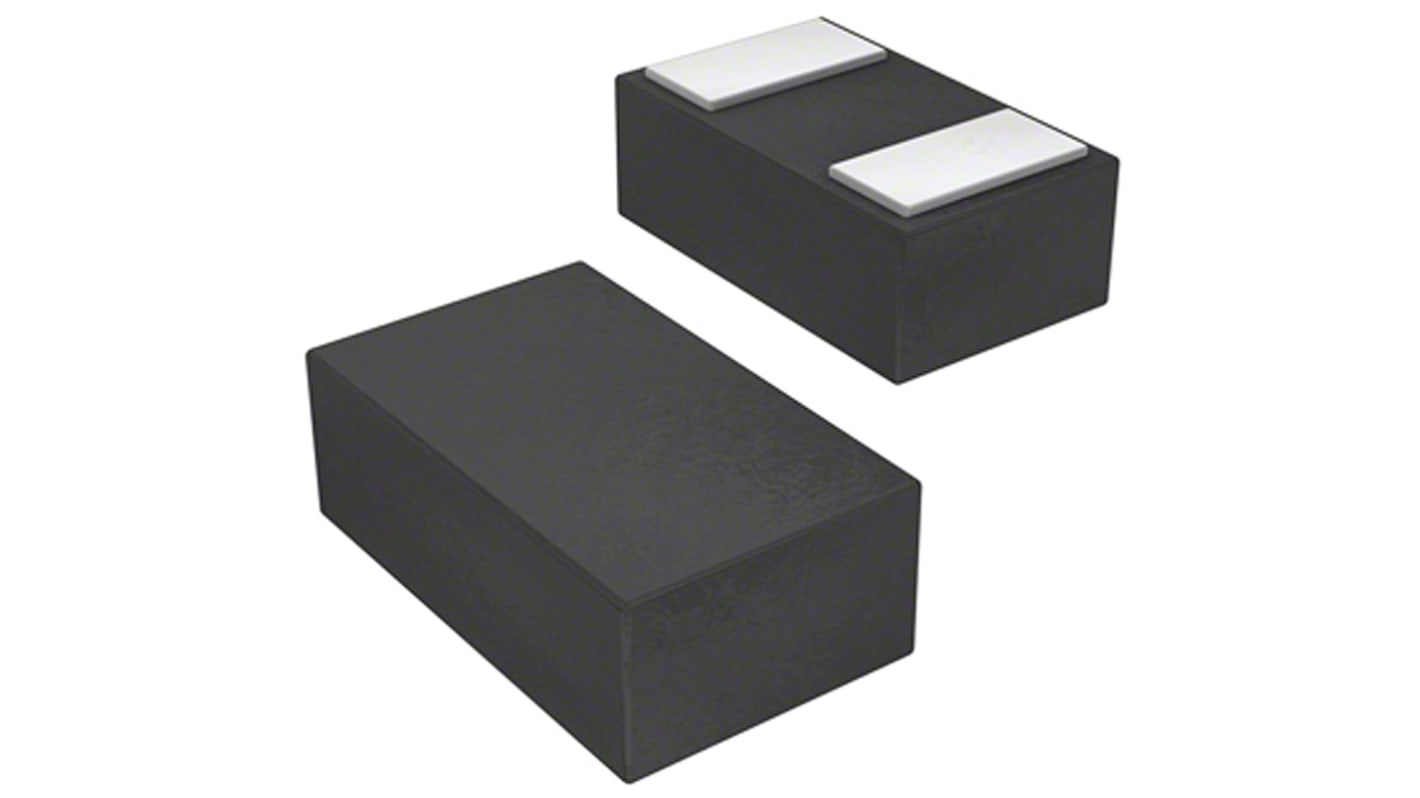

STMicroelectronics ESDA17P50-1U1M, Uni-Directional TVS Diode, 1200W, 2-Pin QFN
