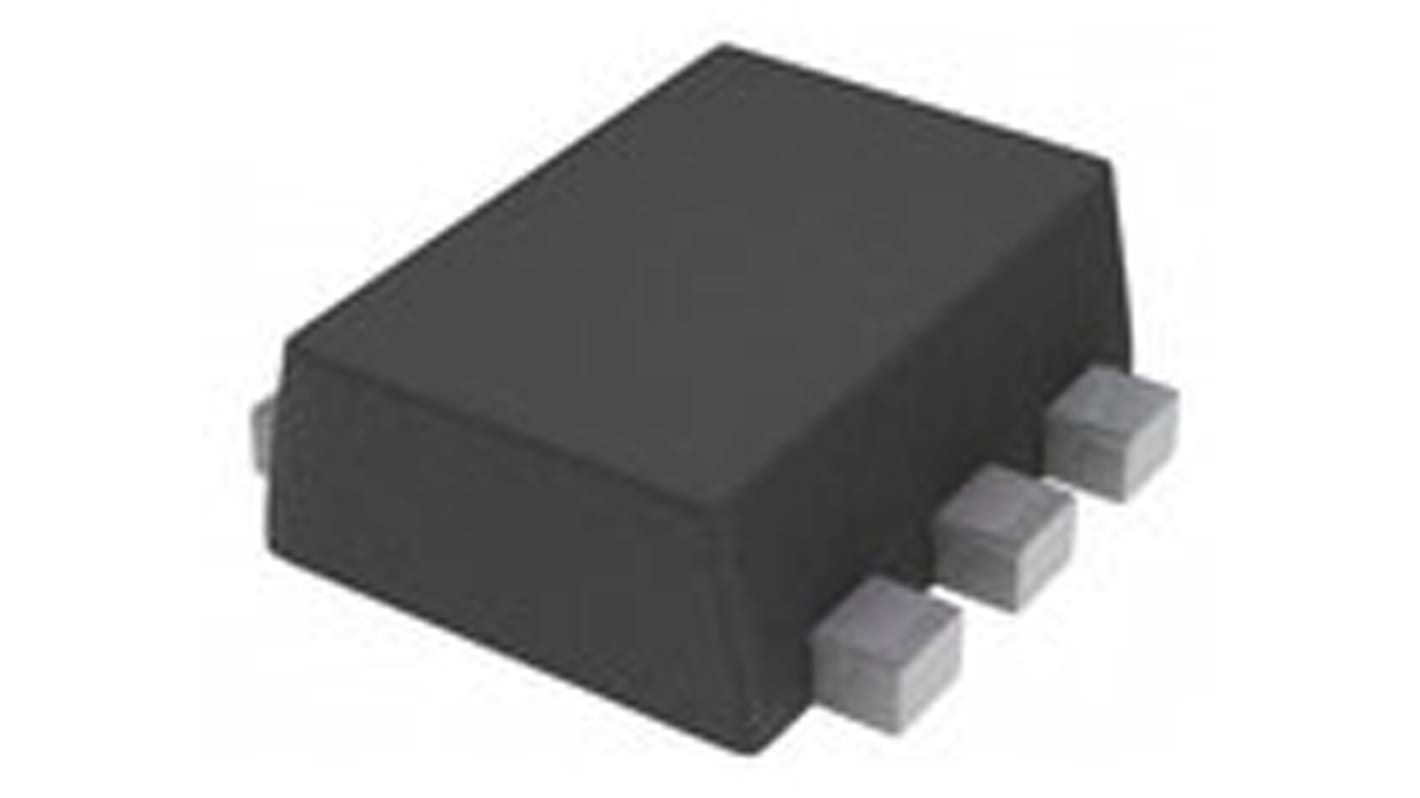

STMicroelectronics DSILC6-4P6, Quad-Element Uni-Directional TVS Diode Array, 90W, 6-Pin SOT-666
- RS Stock No.:
- 795-8978
- Mfr. Part No.:
- DSILC6-4P6
- Manufacturer:
- STMicroelectronics
Bulk discount available
Subtotal (1 tape of 10 units)*
€2.64
(exc. VAT)
€3.25
(inc. VAT)
Temporarily out of stock
- Shipping from 29 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | €0.264 | €2.64 |
| 100 - 240 | €0.224 | €2.24 |
| 250 - 990 | €0.198 | €1.98 |
| 1000 + | €0.173 | €1.73 |
*price indicative
- RS Stock No.:
- 795-8978
- Mfr. Part No.:
- DSILC6-4P6
- Manufacturer:
- STMicroelectronics
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Diode Configuration | Complex Array | |
| Direction Type | Uni-Directional | |
| Minimum Breakdown Voltage | 6V | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-666 | |
| Maximum Reverse Stand-off Voltage | 5V | |
| Pin Count | 6 | |
| Peak Pulse Power Dissipation | 90W | |
| Maximum Peak Pulse Current | 5A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 4 | |
| Dimensions | 1.7 x 1.3 x 0.6mm | |
| Maximum Operating Temperature | +125 °C | |
| Test Current | 1mA | |
| Length | 1.7mm | |
| Width | 1.3mm | |
| Maximum Reverse Leakage Current | 500nA | |
| Height | 0.6mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Diode Configuration Complex Array | ||
Direction Type Uni-Directional | ||
Minimum Breakdown Voltage 6V | ||
Mounting Type Surface Mount | ||
Package Type SOT-666 | ||
Maximum Reverse Stand-off Voltage 5V | ||
Pin Count 6 | ||
Peak Pulse Power Dissipation 90W | ||
Maximum Peak Pulse Current 5A | ||
ESD Protection Yes | ||
Number of Elements per Chip 4 | ||
Dimensions 1.7 x 1.3 x 0.6mm | ||
Maximum Operating Temperature +125 °C | ||
Test Current 1mA | ||
Length 1.7mm | ||
Width 1.3mm | ||
Maximum Reverse Leakage Current 500nA | ||
Height 0.6mm | ||
