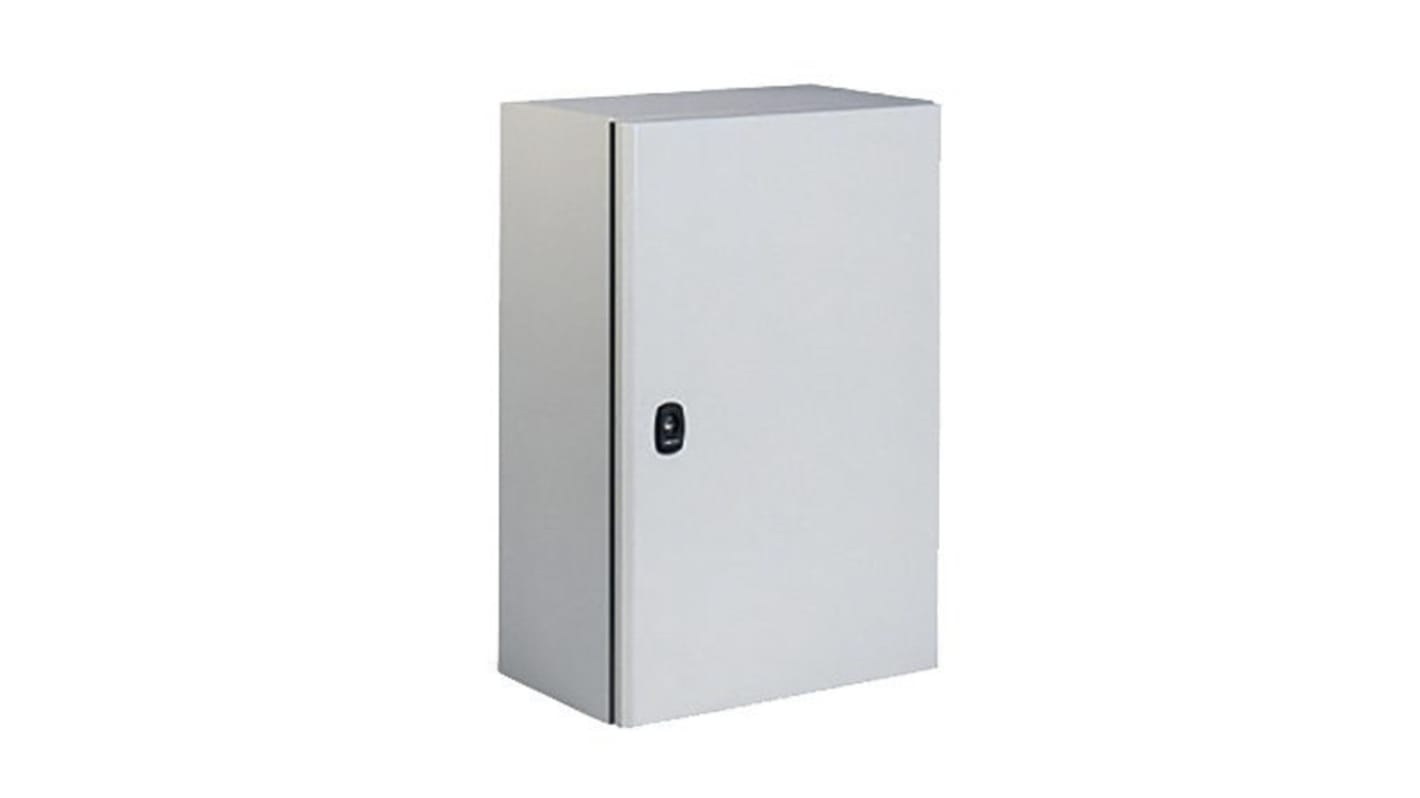

Schneider Electric PanelSet S3D Series Steel Wall Box, IP66, ATEX, 600 mm x 400 mm x 250mm

RS Stock No.:: 701-8370
Mfr. Part No.:: NSYS3DEX6425
Manufacturer:: Schneider Electric

Schneider Electric PanelSet S3D Series Steel Wall Box, IP66, ATEX, 600 mm x 400 mm x 250mm

Subtotal (1 unit)**

€232.03

(exc. VAT)

€285.40

(inc. VAT)

2 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 +	€232.03

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 701-8370
Mfr. Part No.:: NSYS3DEX6425
Manufacturer:: Schneider Electric

Spacial S3DEX ATEX Wall Box Enclosures.

From Schneider Electric this is the Spacial S3DEX steel wall mounting enclosures have a 1 piece folded and welded body with a double plate thickness gutter shaped front profile. The Wall box enclosures are certified for use in ATEX II2 or II3 classifications hazardous areas. This mean that the wall box enclosures can be wall mounted where rare explosion risks are probable.

Spacial S3DEX should be used with other ATEX certified electrical, pneumatic and hydraulic enclosure components. S3DEx wall box enclosures comply with explosion risks in environments charged with gas and dust plus designed for use in group II classified category 2.

What is ATEX?

Two European directives, ATEX 99/92/CE and ATEX 94/9/CE, applicable to locations under potentially Explosive Atmospheres.

Outside European Union, equivalent references are IEC standards 60079 and 61241.

ATEX defines a potentially explosive atmosphere as a mix of flammable substances in the form of gas, vapour or dust (cloud deposit) which, in air under normal atmospheric conditions, can catch fire in the form of an explosion when exposed to an ignition source.

Since July 1st, 2003, ATEX 94/9/CE makes compulsory certified equipment when intended for use in potentially explosive zones, gaseous or dusty atmospheres.

Features and Benefits.

IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas

External mechanical impact resistance of IK10 (protected against a 5kg object dropped from 20cm

ATEX certification means that the enclosures are suitable for using in a potentially explosive atmosphere

Enclosures up to 600 mm high have one central lock with no locking bars

Enclosures above 600 mm high have one central lock and a double locking bar, making three locking points in total

Plain door with polyurethane seal

External earthing by crimped blind nut (earth braid not supplied).

A range of S3D Spacial wall box enclosures and sizes available.

A range of Spacial SD3 enclosures accessories are available.

The multi-purpose enclosures have a textured paint finish RAL 7035 light grey.

Spacial S3DEX Applications.

Chemical and petrochemical.

Offshore industry,

Food industry.

Flour mills.

Grain drying areas.

Petrol and gas stations.

Wool and aluminium work environments.

Note

The lock is a quarter turn, cam with key.

Supplied with

4 shouldered M8x25 backstuds and 4 crimped blind nuts

NSYS3DEX6425 Wall Mounting Enclosure

What are the external dimensions?

NSYS3DEX6425 has external dimensions of 600 x 400 x 250 mm.

What type of lock does it have?

The enclosure has a 3 point, 3 mm double-bar lock.

What is supplied?

The NSYS3DEX6425 enclosure is supplied with a single piece body with clamped blind nut, plain front face door, cable gland plate and a 3point, 3 mm double-bar lock, 4 shouldered M8x25 backstuds and 4 crimped blind nuts.

Can the wall box be used outside?

The NSYS3DEX6425 has an Ingress Protection rating of IP66 so can be used inside or outside.

Attribute	Value
External Height	600 mm
External Width	400 mm
External Depth	250mm
Body Material	Steel
Transparent Door	No
IP Rating	IP66
Chassis Plate	No
Door Lock Type	Double Bar
Gland Plate	Yes
Colour	Grey
Series	PanelSet S3D
RAL Code	RAL 7035
Better World Product	Yes
Better World Verification	Green Premium
Hazardous Area Certification	ATEX
External Mounting Type	Bracket
Special Features	120° Door Opening
Fixing Kit	Yes
IK Rating	IK10
Internal Mounting Type	Panel
