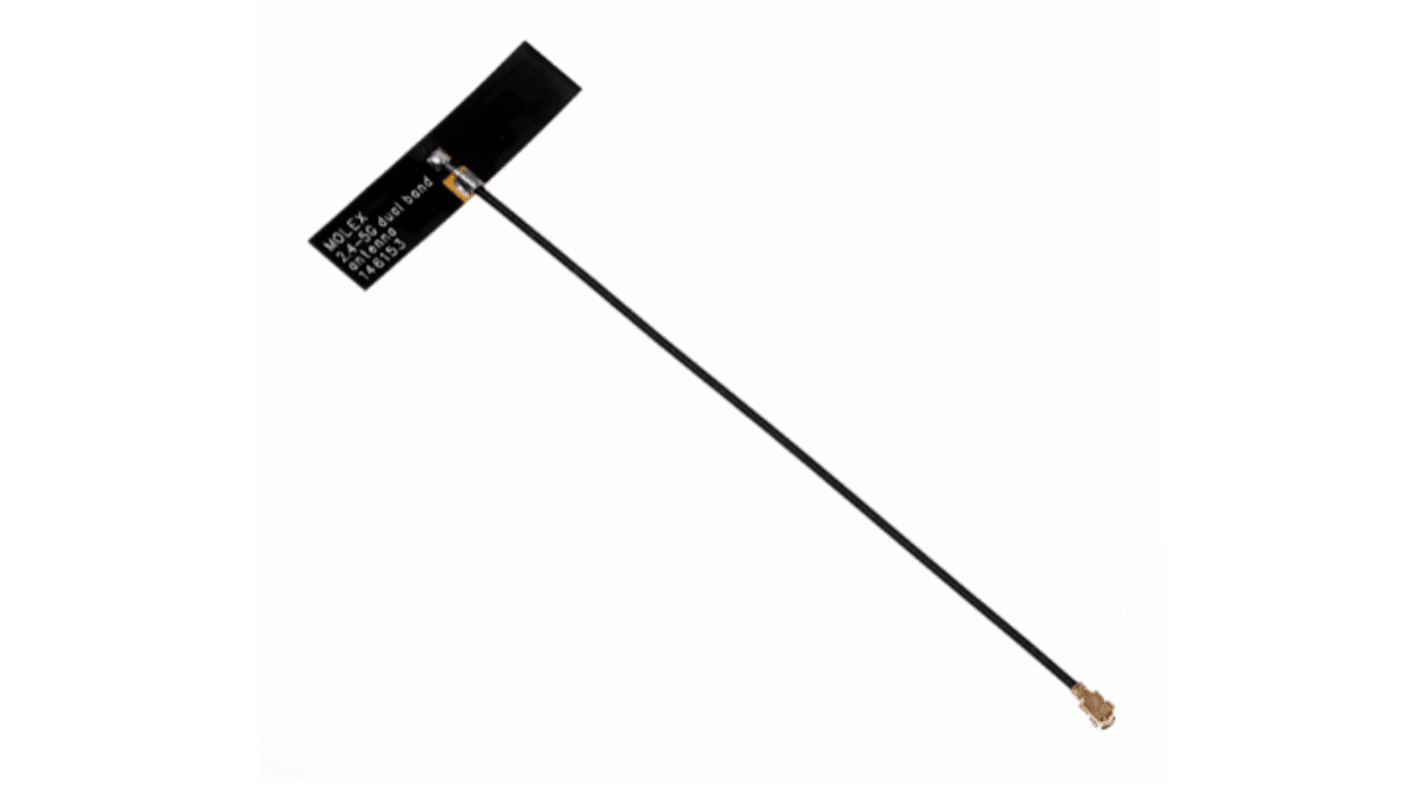

Molex 146153-1300 T-Bar WiFi Antenna with I-PEX MHF4 Connector, WiFi (Dual Band)
- RS Stock No.:
- 218-2061
- Mfr. Part No.:
- 146153-1300
- Manufacturer:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 8 units)*
€23.712
(exc. VAT)
€29.168
(inc. VAT)
In Stock
- 1,592 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 8 - 8 | €2.964 | €23.71 |
| 16 - 96 | €2.56 | €20.48 |
| 104 - 496 | €2.493 | €19.94 |
| 504 - 992 | €2.43 | €19.44 |
| 1000 + | €2.371 | €18.97 |
*price indicative
- RS Stock No.:
- 218-2061
- Mfr. Part No.:
- 146153-1300
- Manufacturer:
- Molex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | WiFi Antenna | |
| Internal/External | Internal | |
| RF Protocols | WiFi (Dual Band) | |
| Antenna Physical Form | T-Bar | |
| Connector Type | I-PEX MHF4 | |
| Antenna Mount Type | Adhesive | |
| Minimum Frequency | 2400MHz | |
| Gain | 2.8dBi | |
| Cable Length | 300mm | |
| Directivity | Omni-Directional | |
| Connector Gender | Female | |
| Maximum Frequency | 5930MHz | |
| Standards/Approvals | EU RoHS China RoHS Compliant, REACH SVHC Not Contained Per - D(2020)9139-DC (19 Jan 2021), Halogen-Free Status Low-Halogen | |
| Number of Bands | 2 | |
| Series | 146153 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type WiFi Antenna | ||
Internal/External Internal | ||
RF Protocols WiFi (Dual Band) | ||
Antenna Physical Form T-Bar | ||
Connector Type I-PEX MHF4 | ||
Antenna Mount Type Adhesive | ||
Minimum Frequency 2400MHz | ||
Gain 2.8dBi | ||
Cable Length 300mm | ||
Directivity Omni-Directional | ||
Connector Gender Female | ||
Maximum Frequency 5930MHz | ||
Standards/Approvals EU RoHS China RoHS Compliant, REACH SVHC Not Contained Per - D(2020)9139-DC (19 Jan 2021), Halogen-Free Status Low-Halogen | ||
Number of Bands 2 | ||
Series 146153 | ||
- COO (Country of Origin):
- CN
The Molex flex cable balance antenna is a balanced, dipole-type, high efficiency antenna for 2.4 to 5 GHz applications, including WI-FI 6E, Bluetooth, ZigBee. It is compatible with U.FL / I-PEX MHF connector with 300mm cable length and adhesive mounting.
Linear polarization
Net weight 1.133/g
Ground plane independent
